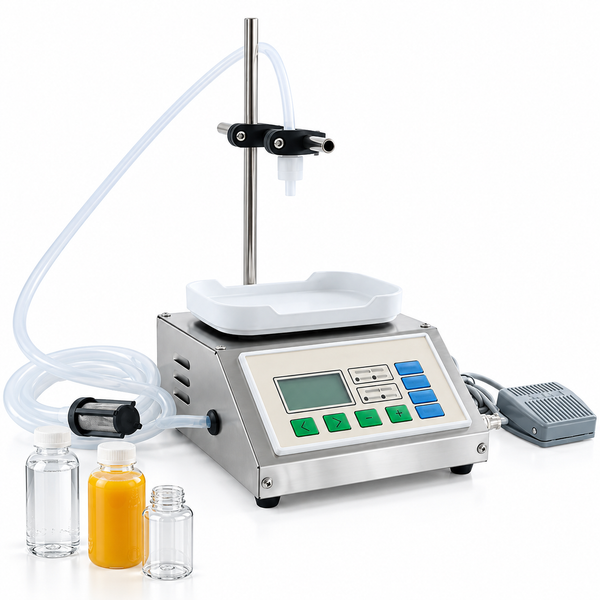

This compact digital filling machine is designed for precise dispensing of low-viscosity, particle-free liquids such as essential oils, perfumes, juices, and purified water. Equipped with a built-in weighing system, it ensures accurate fill volumes for small-scale production. Ideal for food, cosmetics, pharmaceuticals, and daily chemical applications, this unit offers reliable performance and easy operation for businesses seeking efficient liquid packaging solutions.
Parameter
Machine Model ZS-DP611W
Machine Power 220V / 110V, 50–60Hz, 35W
Machine Pump Diaphragm Pump
Max Flow Rate 3.5 L/min
Filling Range 30 ml – 3.5 L
Weighing Range 30 g – 5 kg
Filling Nozzle Diameter 8 mm
Hose Diameter 6 mm (ID) / 10 mm (OD)
Hose Length 1.7 m (inlet) / 1.4 m (outlet)
Repetitive Error ±1 g
Liquid Temperature < 52 °C
Machine Size Approx. 200 × 220 × 300 mm (L × W × H)
Machine Weight 3 kg
Package Size Approx. 300 × 290 × 160 mm (L × W × H)
Package Weight 3.5 kg
DIGITAL CONTROL PANEL
The digital panel allows the filling weight to be set directly and displays the number of filled bottles for clear, accurate monitoring.
ANTI-DRIP FILLING NOZZLE
The anti-drip nozzle accurately fills non-viscous liquids. Its height can be adjusted to suit bottles of different heights.
PEDAL SWITCH
The machine supports automatic and manual operation. In manual mode, the pedal switch starts the filling cycle.
LIQUID FILTER
The filter removes impurities from the liquid to support reliable machine operation.
