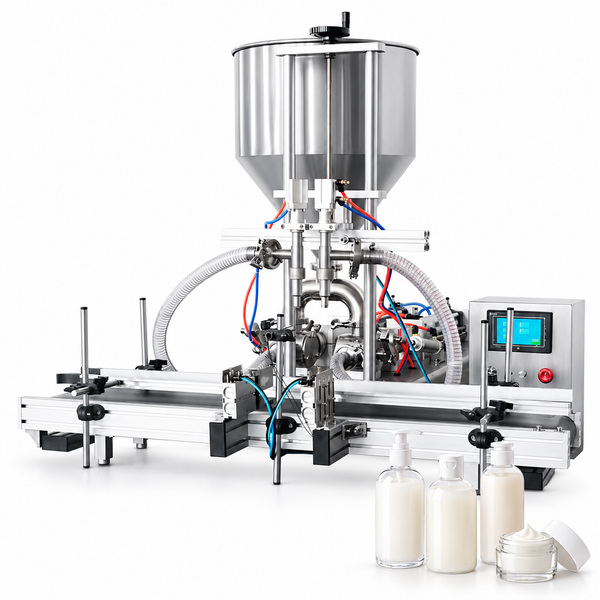

The ZONESUN ZS-DTGT2 is a pneumatic double-head piston filling machine with a conveyor for thick liquids and pastes, including shampoo, engine oil, laundry detergent, jam and honey. Its modular design combines dual piston pumps, anti-dripping filling heads and container detection.
Choose Your Filling Range
Select the filling range that matches your target amount: 10–100, 10–200, 30–300, 50–500 or 100–1000 mL. These are separate specification options; do not assume every option covers the full 10–1000 mL span. Select 110V or 220V for your power supply.
- Touchscreen parameter settings; panel language can be customized.
- Each filling head's speed can be controlled separately, and working height can be adjusted.
- Controls for filling speed, interval time and filling range.
- Photoelectric container detection and a conveyor with adjustable speed.
Specifications
| Machine Model | ZS-DTGT2 |
|---|---|
| Voltage | 220V / 110V, 50–60Hz |
| Power | 130W |
| Filling Range | 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 ml |
| Filling Speed | Approx. 800–900 bottles/hour (300ml ketchup) |
| Applicable Bottle Diameter | Approx. 53–100mm |
| Filling Accuracy | ≤ ±1% |
| Anti-dripping Function | Available |
| Conveyor Belt Size | 1020 × 140mm (L × W) |
| Machine Size | 1020 × 1160 × 870mm (L × W × H) |
Speed reference: The listed 800–900 bottles/hour is for 300 mL ketchup. It should not be treated as the production rate for every material and fill amount.
Send your material details, target fill amount and bottle dimensions for a suitability check.
Machine Demonstration
Frequently Asked Questions
Does one specification cover 10–1000 mL?
No. Choose from the five filling-range options listed above according to your target fill amount.
Can both filling heads be adjusted separately?
The speed of each head can be controlled separately, and the working height can be adjusted for different bottles.
Which bottle diameter is listed?
The stated bottle diameter range is approximately 53–100 mm. Send your bottle dimensions and material details to confirm suitability.
Does it have an anti-dripping function?
Yes. An anti-dripping function is listed in the specifications.
Machine Details
TOUCHSCREEN CONTROL PANEL
The touchscreen makes it easy to set operating parameters, and the panel language can be customized as needed.
PNEUMATIC FILLING HEADS
Powerful cylinders drive the filling heads for thick pastes such as hand sanitizer and honey. The speed of each head can be controlled separately, and the working height can be adjusted for different bottles.
ADJUSTMENT CONTROLS
Physical controls allow the filling speed, interval time, and filling range to be adjusted.
PHOTOELECTRIC SENSOR
The photoelectric sensor automatically detects containers for efficient operation.
CONVEYOR BELT
The conveyor transports bottles steadily, and its speed can be adjusted.
