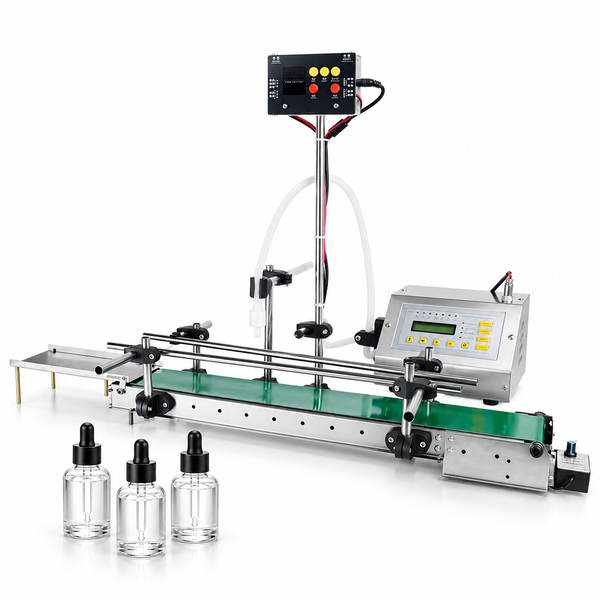

The ZS-DTDP160A is a compact automatic liquid filling machine designed for low-viscosity products like juice, edible oil, and mineral water. Equipped with a digital control panel, it allows precise adjustment of filling speed and time. Its intelligent memory function stores up to six sets of data for quick reuse, while the electric eye sensor enables automatic bottle detection for hands-free operation. Ideal for use in food, beverage, pharmaceutical, and daily chemical industries, this machine offers reliable performance and labor-saving efficiency.
Parameter Specification
Machine Model ZS-DTDP160A
Voltage 220V/110V, 50–60Hz
Power 105W
Recommended Filling Range 25ml–470ml
Max Flow Rate 2800 mL/min (based on water)
Filling Nozzle Diameter (OD) About 8mm
Filling Speed About 11–14 bottles/min (based on 100ml water)
Applicable Bottleneck Diameter 10mm–50mm
Conveyor Belt Size 600mm(L) × 100mm(W) (optional: 1200mm length)
Collecting Tray Size 200mm(L) × 100mm(W)
Conveying Speed 10 cm/s
Filling Accuracy <0.5%
Max Suction Distance 2m
Anti-dripping Function Available
Memory Function (Power Loss) Available
Machine Size Conveyor: 800 × 100 × 400 mm<br>Filler: 205 × 182 × 126 mm
Machine Weight 5 kg
Package Size Conveyor: 650 × 150 × 100 mm<br>Filler: 275 × 255 × 175 mm
Package Weight about 6.5kg
