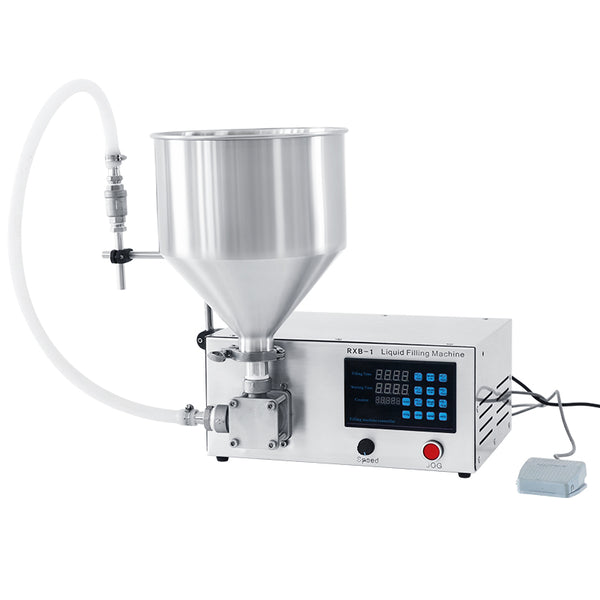

The ZS-RXB1 liquid filling machine is designed for speed and versatility. Using a flexible impeller pump, it handles liquids with granules effortlessly. Ideal for industrial and commercial use, it ensures fast, accurate, and consistent filling performance across a wide range of applications.
Parameter Details
Model ZS-RXB1
Working Power AC 220V / 110V
Pump Type Flexible Impeller Pump
Power Consumption 400 W
Max Flow Rate 28 L/min
Filling Range 0.5 – 20 L
Suitable pH Value pH ≥ 3
Filling Accuracy 99%
Filling Nozzle Size 10 × 14 mm
Delay Time Range 0.01 – 999.9 s
Counting Range 1 – 59,999 times
Machine Dimensions 50 × 30 × 23 cm
Package Size Hopper: 35 × 31 × 35 cm <br> Filler: 57 × 45 × 35 cm
Package Weight Hopper: 3 kg <br> Filler: 18.5 kg
PRODUCT DETAILS
CONTROL PANEL
Digital display, easy learning.
Timer, counter, and speed regulator.
APPLICATION
Dual-purpose, buckle design, easy to replace the hopper with the hose.
PUMP
Flexible impeller pump, up to 28L/min, suitable for liquid with granules.
OPERATION
Dual-mode, manual and automatic.
