Description

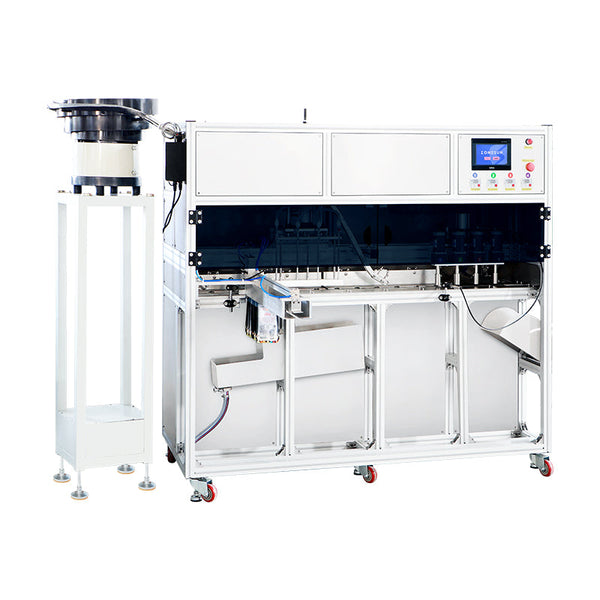

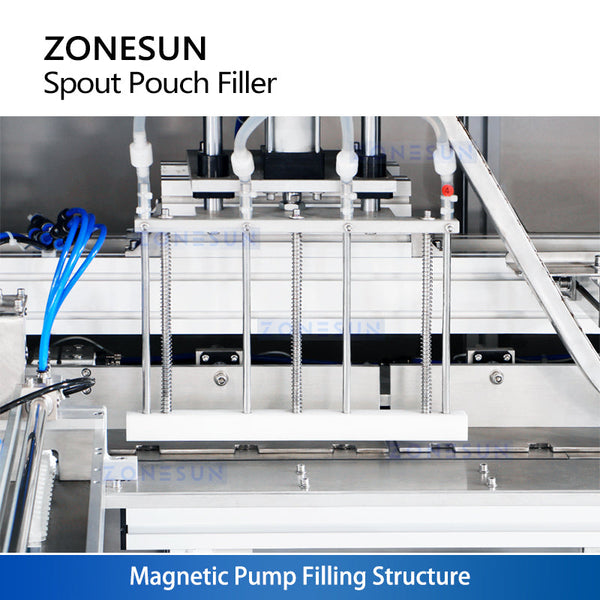

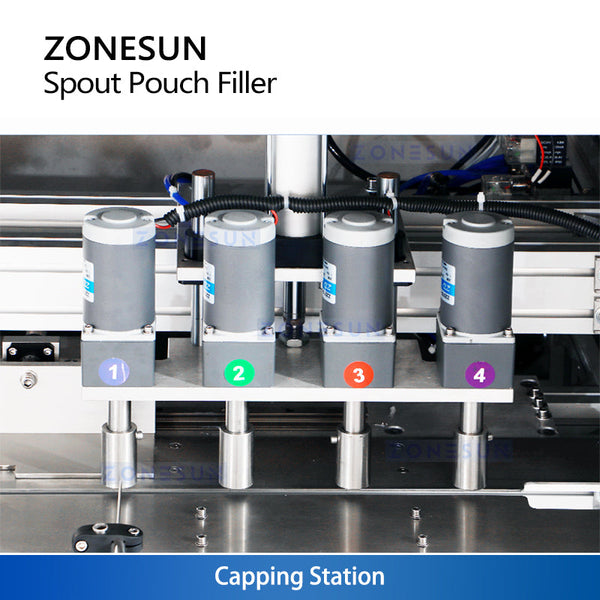

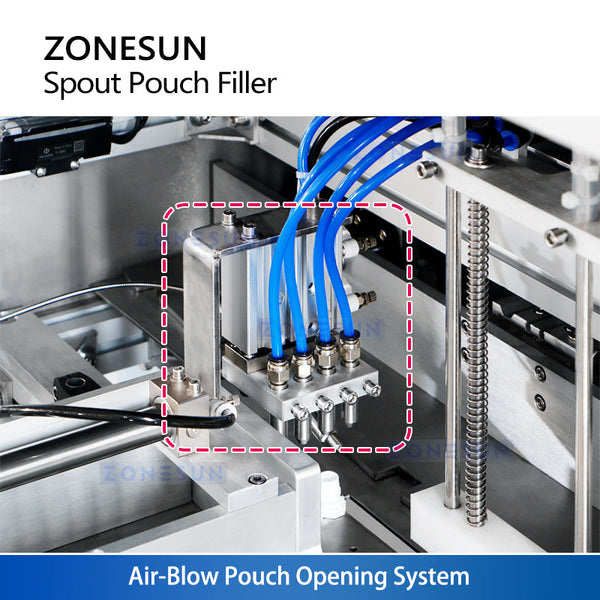

The ZONESUN ZS-ASPM4 is an automatic 4-head spout pouch filling and capping machine designed for efficient, hygienic, and precise liquid packaging. Operating at 1600–1800 pouches per hour, it integrates pouch feeding, air-blow opening, magnetic-pump filling, cap feeding, and capping into one continuous workflow. Equipped with 316 stainles-steel magnetic pumps, ±1% filling accuracy, and customizable filling volumes from 10–300 ml, the system ensures clean, repeatable, and stable dosing for non-particulate liquids. It is ideal for juice, cocktails, coffee concentrate, energy gel, nutritional supplements, and other liquid products requiring reliable spout pouch packaging.
Parameter
- Machine Model: ZS‑ASPM4
- Machine Voltage: 110/220 V, 50–60 Hz
- Machine Power: 1200 W
- Filling Volume: 10–300 ml (customizable)
- Filling Pump: Stainless steel 316 magnetic pump (6 L/min)
- Filling Accuracy: ±1%
- Filling Nozzle Quantity: 4 (customizable)
- Working Capacity: 1600–1800 BPH
- Suitable Spout Size: Customizable
- Suitable Cap Size: Customizable
- Air Pressure: 0.4–0.6 MPa
- Machine Size: About 2480 × 1760 × 1730 mm
- Package Size: About 1950 × 1570 × 1810 mm
- Package Weight: About 434 kg
