Description

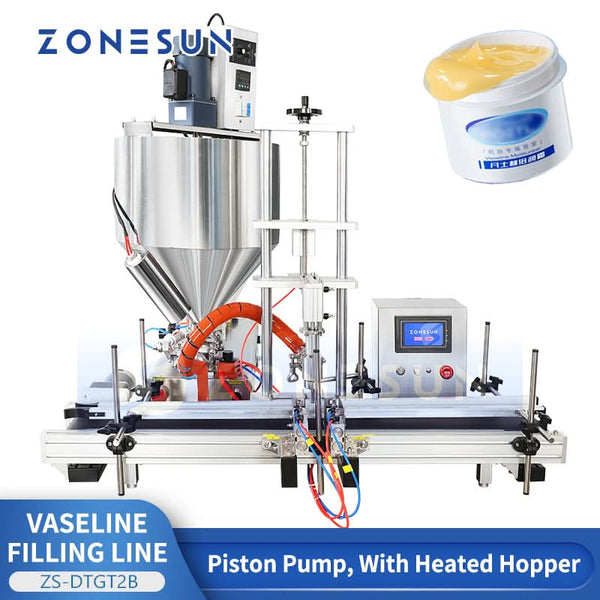

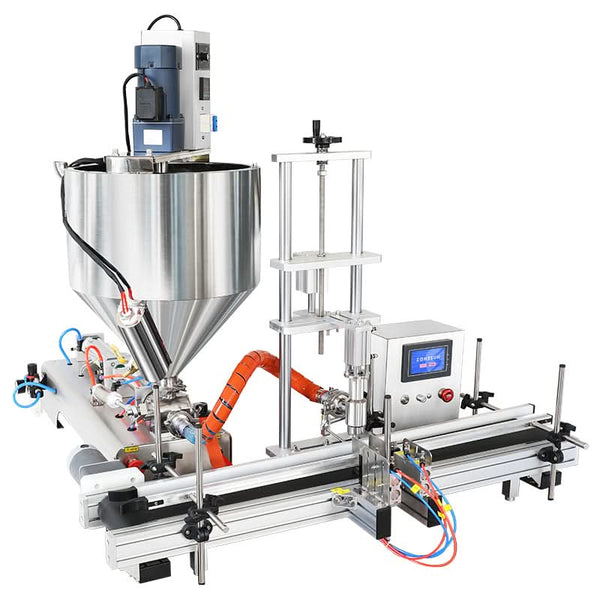

The ZONESUN ZS-DTGT2B is a compact small-scale Vaseline filling production line designed for high viscosity paste products. Equipped with a jacketed heated hopper, piston pump, pneumatic filling heads, and a heated hose, the system maintains stable temperature throughout the entire transfer path to prevent cooling and solidification. The piston pump delivers strong cylinder driven force to move melted Vaseline smoothly from the heated hopper to the filling heads, while the photoelectric eye ensures accurate bottle detection and precise filling control. With an intuitive touchscreen panel and adjustable filling range, the machine provides efficient, stable, and userfriendly operation for small to mediumscale production.
Features

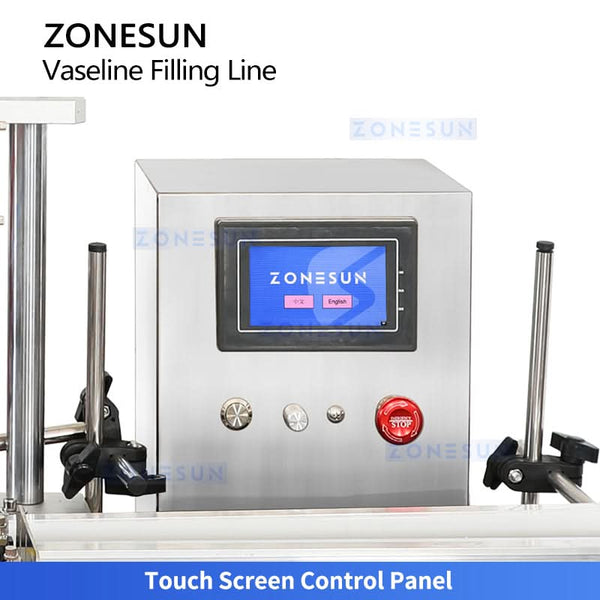

Touch Screen Control Panel
Enables easy parameter setting through an intuitive touchscreen interface with customizable language options for different user needs.

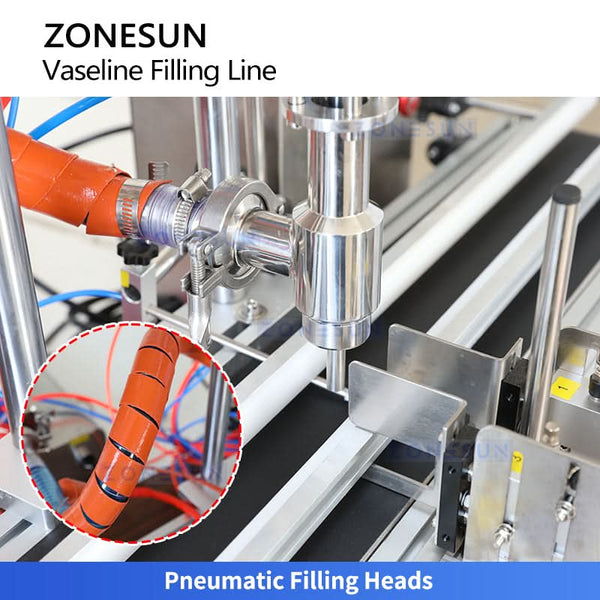

Pneumatic Filling Heads
Provide cylinder driven filling for thick pastes with adjustable speed and height, using a heating coil wrapped around the feed hose to keep material warm and prevent solidification.

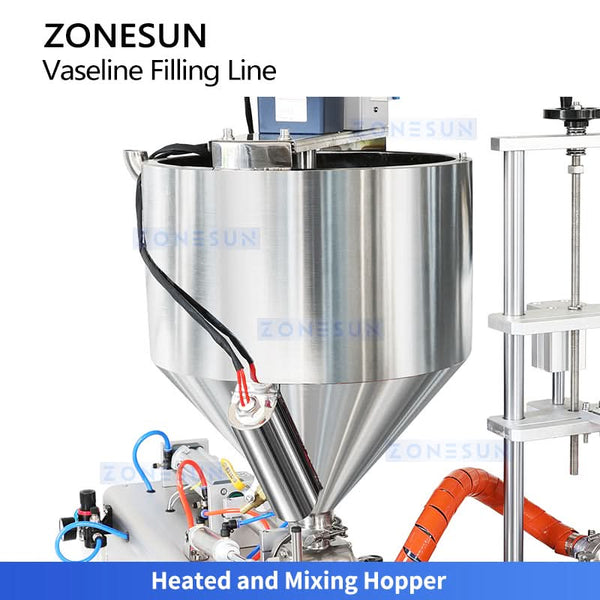

Heated and Mixing Hopper
Maintains a stable, uniform temperature through a jacketed oil bath heating system to gently melt the material and prevent scorching or solidification before pumping.

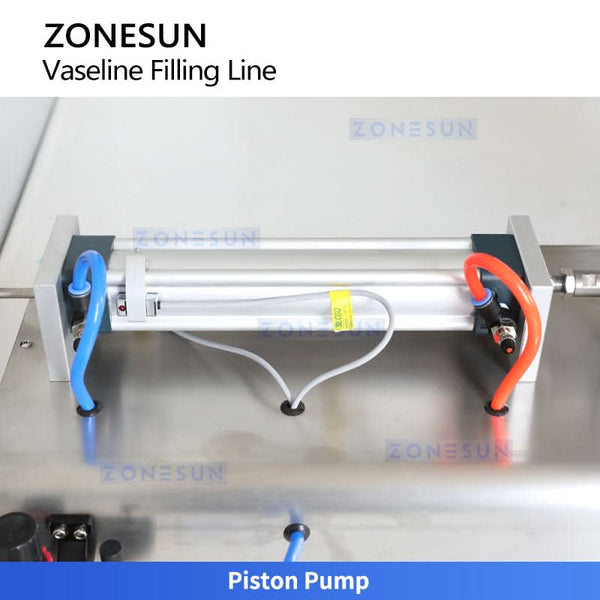

Piston Pump
Delivers strong cylinder driven pumping force to transfer high viscosity melted material smoothly from the heated hopper to the filling heads with stable flow and pressure.

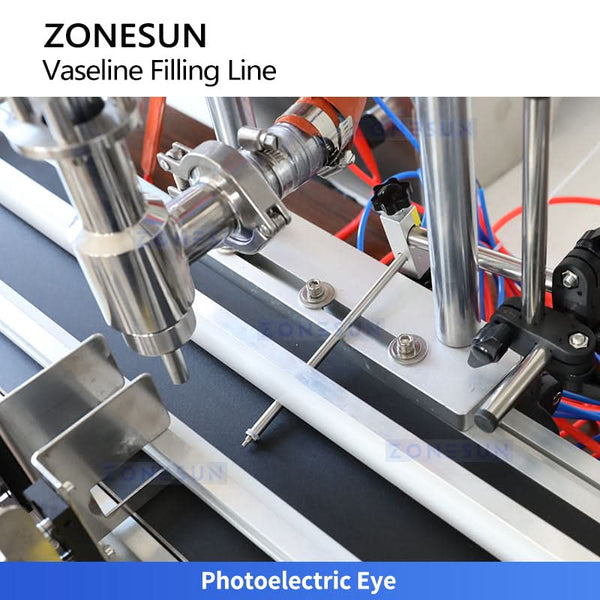

Photoelectric Eye
Detects bottle presence and positioning to trigger accurate filling and prevent missed or misaligned containers.
Benefits
Stable Temperature Control
Heated hopper + heated hose ensure the material remains fully melted and freeflowing throughout the entire filling process.
High-Viscosity Compatibility
Designed specifically for thick pastes such as Vaseline, creams, ointments, and similar semisolid products.
Accurate Filling
Photoelectric detection and pneumatic control ensure precise, consistent filling with ≤±1% accuracy.
Smooth Material Transfer
Piston pump provides strong and stable pressure, preventing clogging or interruptions.
UserFriendly Operation
Touchscreen interface and adjustable filling range support flexible production needs.
Specifications
Machine Model: ZS-DTGT2B
Voltage: 220 V / 110 V, 50–60 Hz
Power: 130 W
Filling Range: 10–100 / 10–200 / 30–300 / 50–500 / 100–1000 mL
Filling Speed: ~800–900 bottles/hour (based on 300 mL ketchup)
Applicable Bottle Diameter: ~53–100 mm
Filling Accuracy: ≤ ±1%
Antidripping Function: Available
Application
Suitable for filling highviscosity paste products such as: Vaseline, Creams & ointments, Balms & gels, Cosmetic pastes, Pharmaceutical semi-solids, Food-grade thick sauces, Ideal for small to medium scale production lines requiring stable heating and precise filling.
