Description

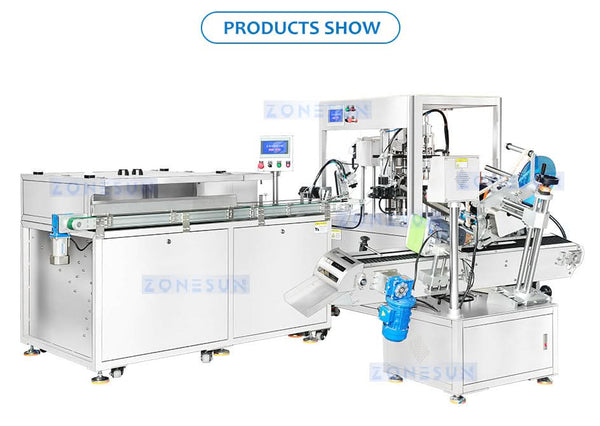

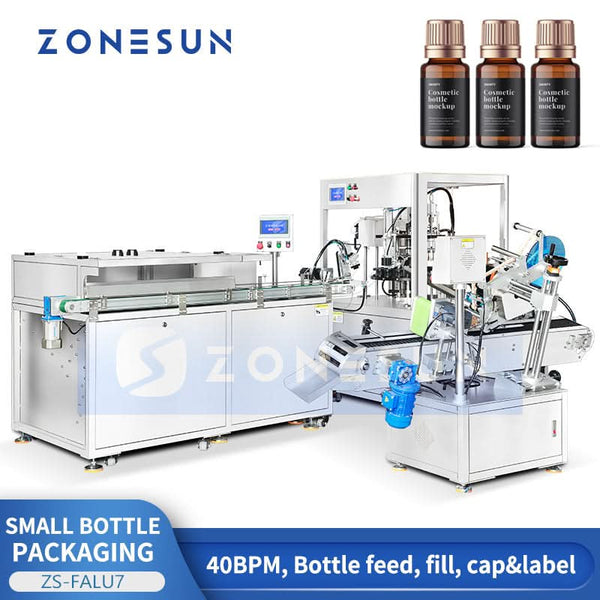

The ZONESUN ZS-FALU7 is a fully automatic production line that integrates bottle unscrambling, peristaltic pump filling, servo-driven capping, and precision labeling into a compact production line for small bottles. Designed for hygienic and high-accuracy liquid dosing, it supports 10–100ml containers and delivers up to 40 bottles per minute. With optional date coding and stable mechanical performance, it is ideal for cosmetics, personal care products, essential oils, and other liquid-based formulations in small to medium-scale manufacturing.
Filling Capping Machine Parameter
- Machine Model: ZS-AFC28
- Voltage: 220V/110V 50-60Hz
- Power: About 3kW
- Production Speed: About 40 bottles/min
- Filling Range: 10-100 ml (Can be customized)

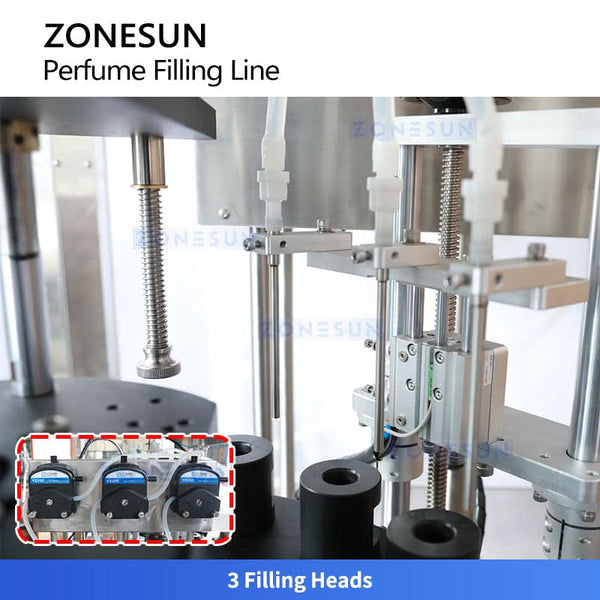

- Filling Pump: Peristaltic Pump
- Max Flow Rate: 6L/min(based on water)
- Suitable Bottle Size: Can be customized
- Bottle Cap Size: Can be customized
- Air Pressure: 0.5-0.7 MPa
- Machine Size: About 2050*1800*1500 mm

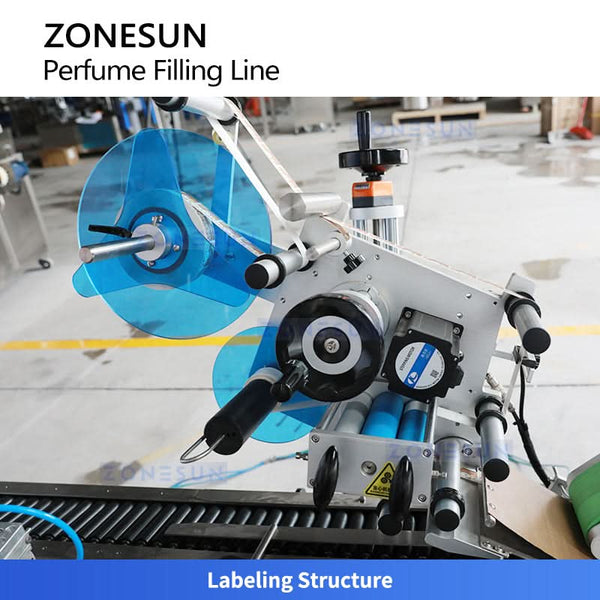

Labeling Machine Parameter
- Machine Model: ZS-TB823
- Power Supply: 110/220V 50-60HZ
- Working Speed: 60-170 bottles/min
- Labeling Accuracy: ±1mm
- Suitable Labeling Object: Φ13-21mm （Need to test for other sizes）
- Suitable Label Size: 20-100mm(W)*20-130mm(H)
- Label Roll OD: Φ280mm
- Label Roll ID: Φ76mm
- Machine Size: About 2100*800*1400mm(L*W*H)
- Package Size: About 2220*930*1520mm(L*W*H)
- Package Weight: About 319kg
