Description

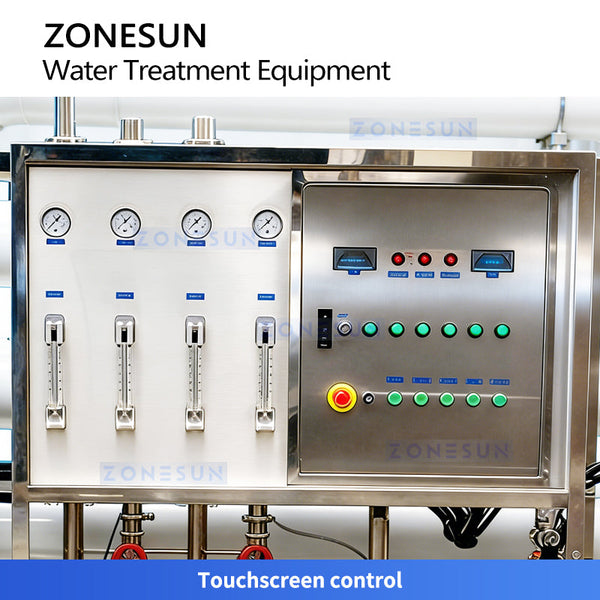

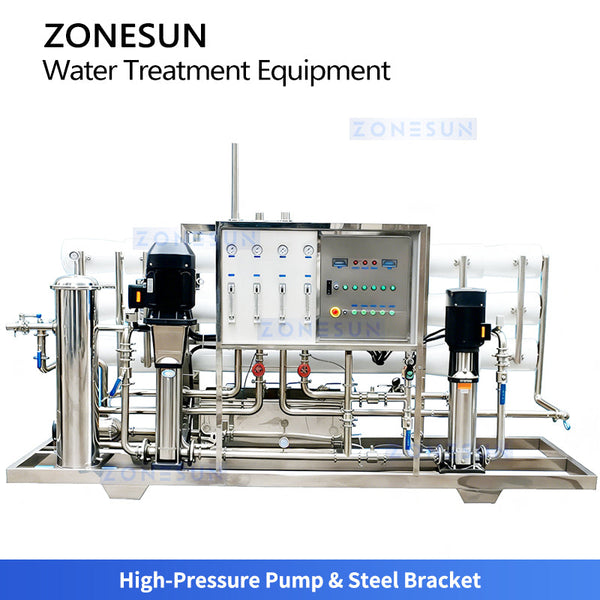

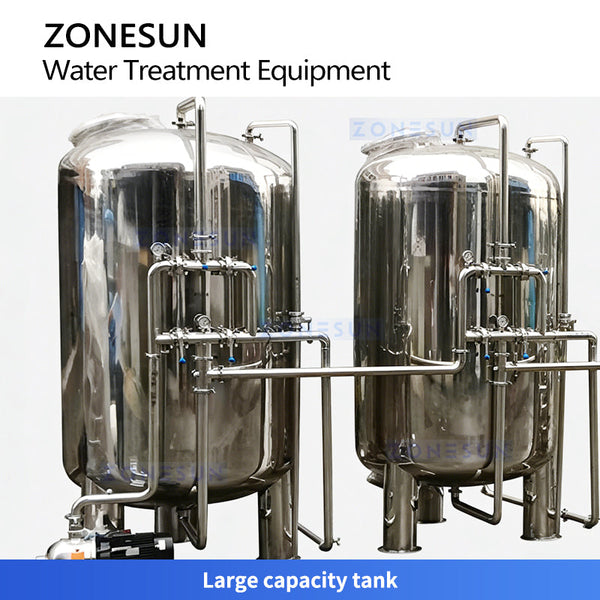

The ZONESUN ZS-RO10T is a reverse osmosis water treatment system designed for industrial and potable water applications. With a capacity of 10T, it uses a semipermeable membrane to remove ions, molecules, and larger particles from water, achieving a desalination rate of up to 97-98%. Equipped with a high-pressure pump, touchscreen control, stainless steel bracket, and large capacity tank, it ensures stable operation, simple handling, and long service life. The system can be customized to meet different water treatment requirements.
Parameter
- Model: ZS‑RO10T
- Control System: PLC with HMI or computer control
- Multimedia Filter Material: Quartz sand (5 grades: 1, 2, 3, 4, 5)
- Activated Carbon Filter Material: Activated carbon, iodine 900
- RO High‑Pressure Pump: Modern Pump / Nan fang Pump / customer‑specified
- Raw Water Temperature: 15–35°C
- Raw Water pH Range: 4–9
- Raw Water Hardness: 17 mg/L (as CaCO₃)
- Raw Water Pollution Index (SDI): ≤5
- Raw Water Total Dissolved Solids (TDS): ≤1000 mg/L
- System Capacity: Customized
- Voltage: 220V / 3‑phase / 50Hz; 380V / 3‑phase / 50Hz; or customized
- Desalination Rate: 97–98%
- Water Recovery Rate: 50–70%
- Raw Water Conductivity: ≤400 µS/cm or custom designed
- Purified Water Conductivity: ≤10 µS/cm or custom designed
- External Dimensions: 3000 × 700 × 2000 mm
- Weight: 350 kg
