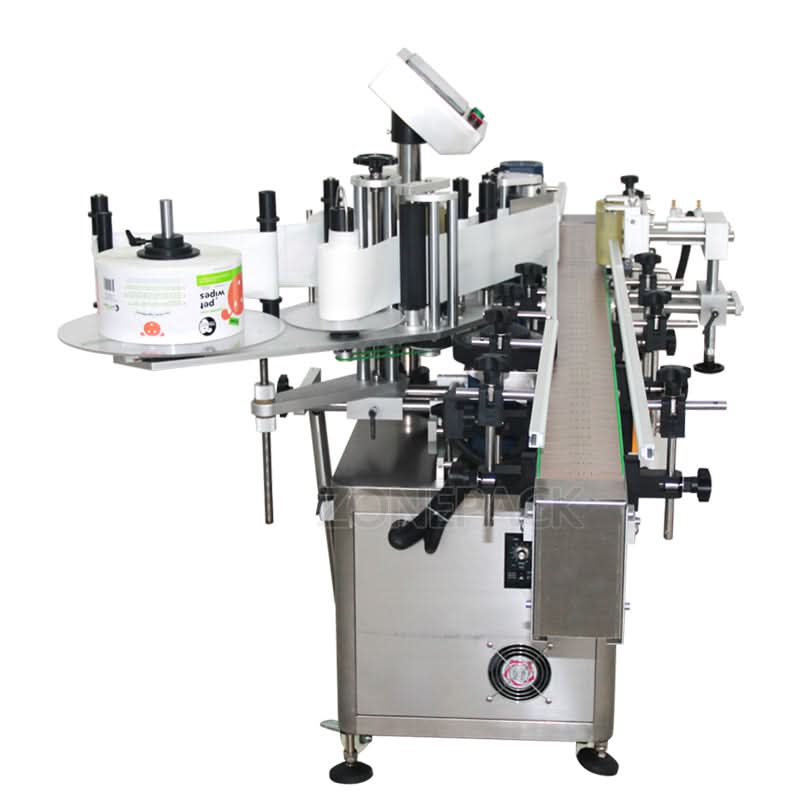

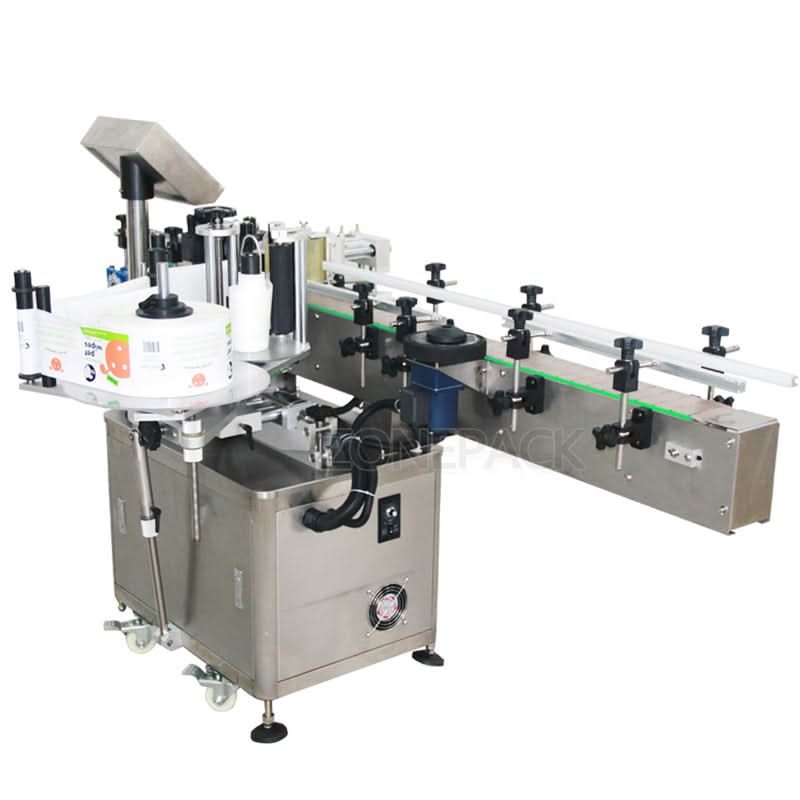

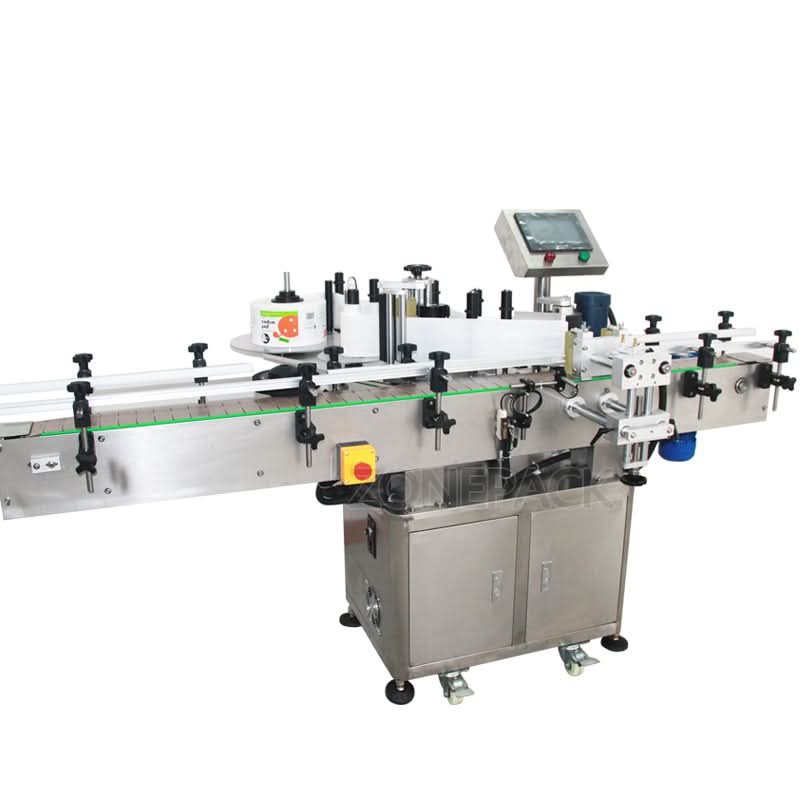

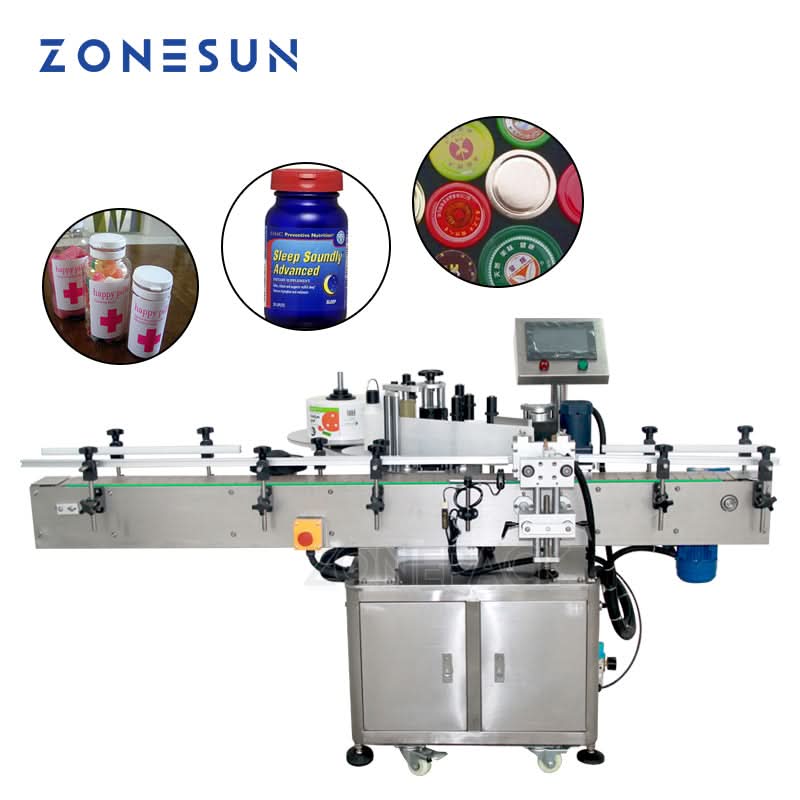

ZONEPACK Automatic Tube Round Wine Can Jar Water Milk Bottle Sticker Roll Labeling Machine For Factory

Shipping calculated at checkout.
Pre-sale Support Quality Guarantee About Shipping


  • Power About 500W

  • Label speed 30-150pcs/min

  • Labelling precision 1mm

  • Roll inner diameter 76mm

  • Max roll outer diameter 300mm

  • Bottle diameter 20-100mm

  • Bottle height 25-300mm

  • Sticker size L: 20-300mm W:10-75mm

  • Dimension (L*W*H) 200*110*135cm

  • Weight About 200kg

IF you think shipping is expensive ,you can ask us.    then we will help you to find better way to your country

Automatic round bottle sticker labeling machine for food industry factory

1. Auto labeler
2. Suit for labeling round bottles
3. High capacity and labeling precision
4. Touch screen and PLC contorl
MT-200 model vertical type round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.
Working principle
The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.
Main machine running adopts stepping motor driver, sets of PLC control system, sets of touch screen, keyence fiber device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.
Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.
The machine adopts high-quality aluminum and stainless steel, well made, in conformity with the requirements of GMP.
