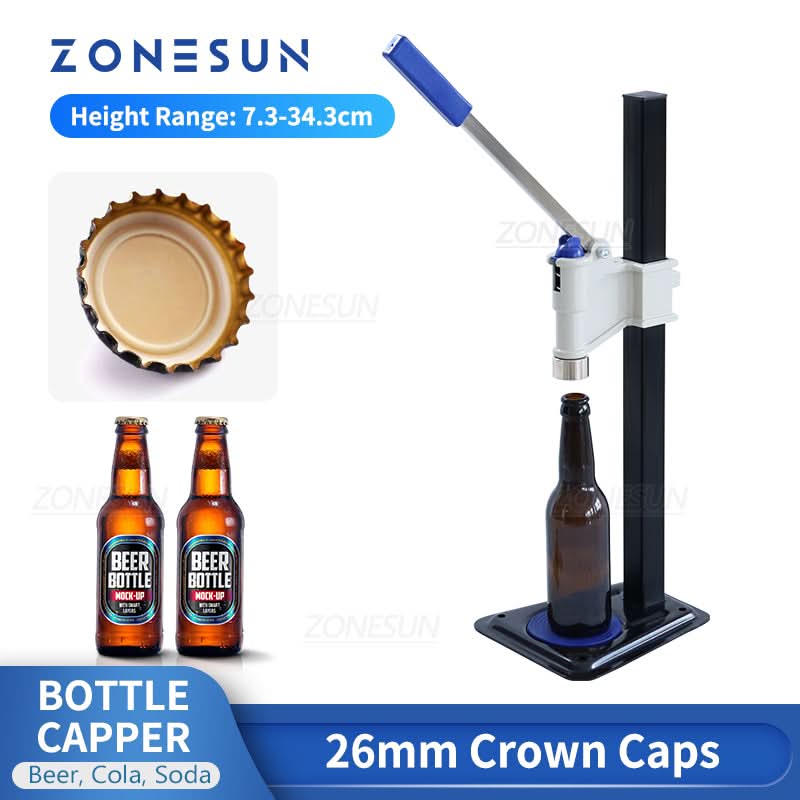

The ZONESUN ZS-BBC1 is a manual crown cap capping machine for compatible beer and soda bottles using 26 mm crown caps. Its adjustable capping height accommodates bottles within the published 7.3–34.3 cm height range. A magnetic cap holder, lever-operated capping head and rubber bottle pad support straightforward manual operation without electricity.
Suitable for home brewing and small beverage bottling tasks. Confirm that your bottle neck finish matches the selected 26 mm crown cap. Bottle height alone does not determine compatibility.
Technical Specifications
| Model | ZS-BBC1 |
|---|---|
| Crown cap size | 26 mm |
| Bottle height range | 7.3–34.3 cm |
| Rubber pad diameter | 8.6 cm |

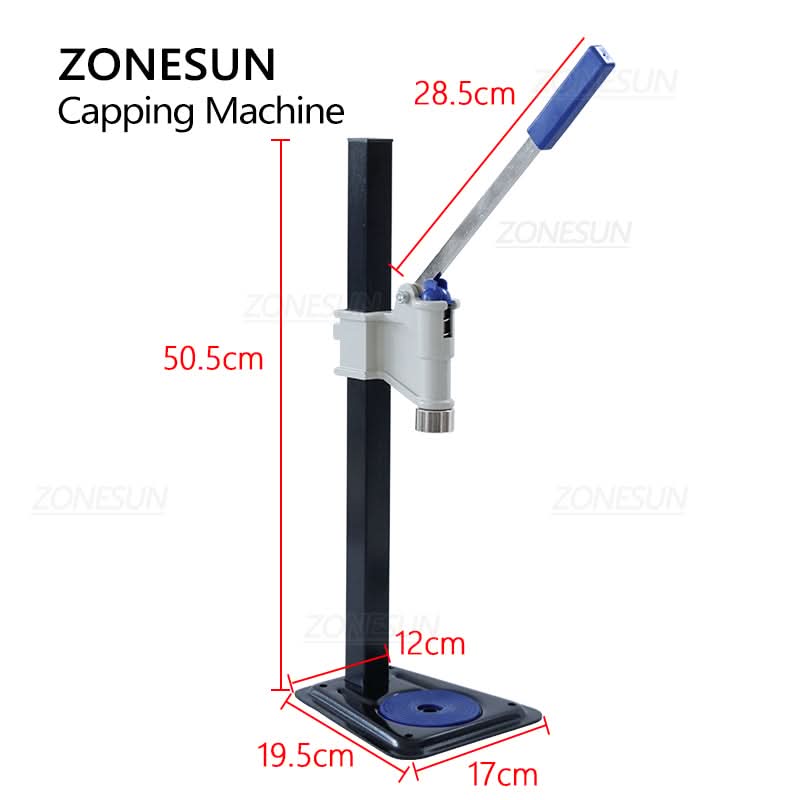

| Machine size | 17 × 19.5 × 50.5 cm |
| Net weight | 1.75 kg |
| Packing size | 19.5 × 20.5 × 52 cm |
| Gross weight | 2.5 kg |

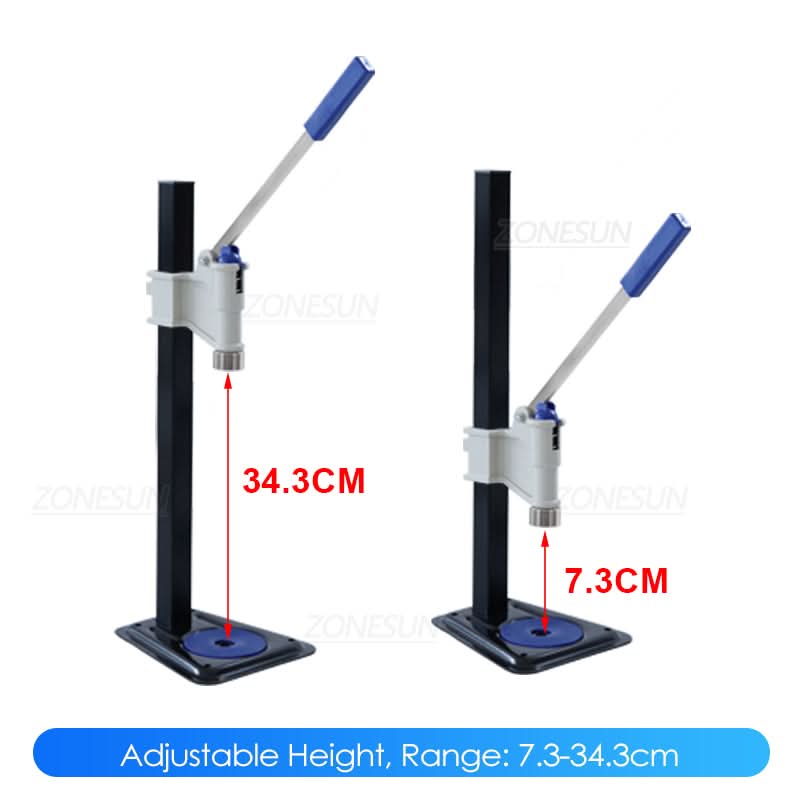

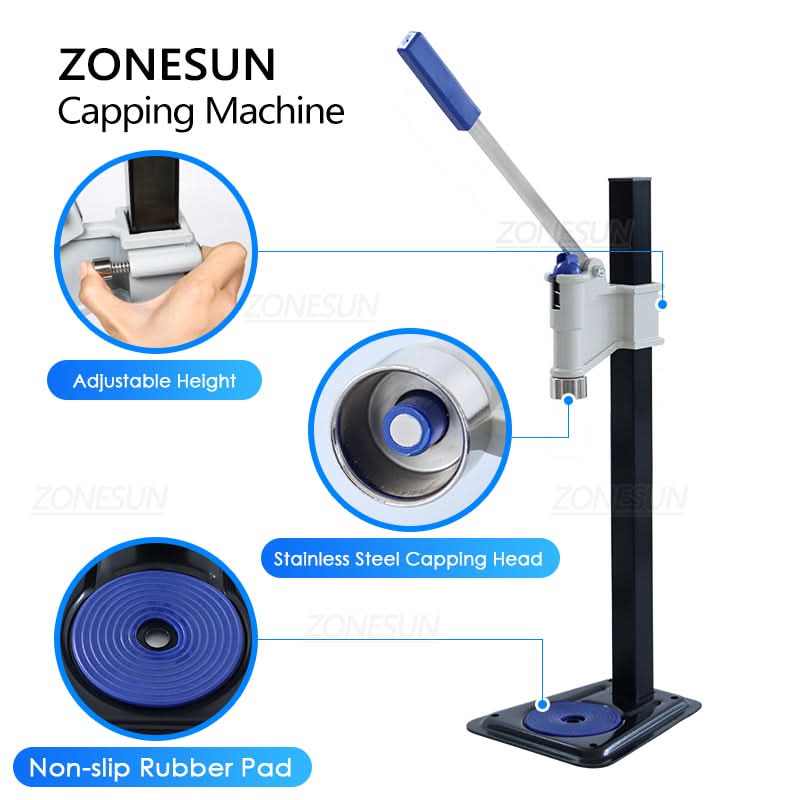

Adjustable Height
The capping assembly can be adjusted for bottles within a height range of 7.3–34.3 cm.

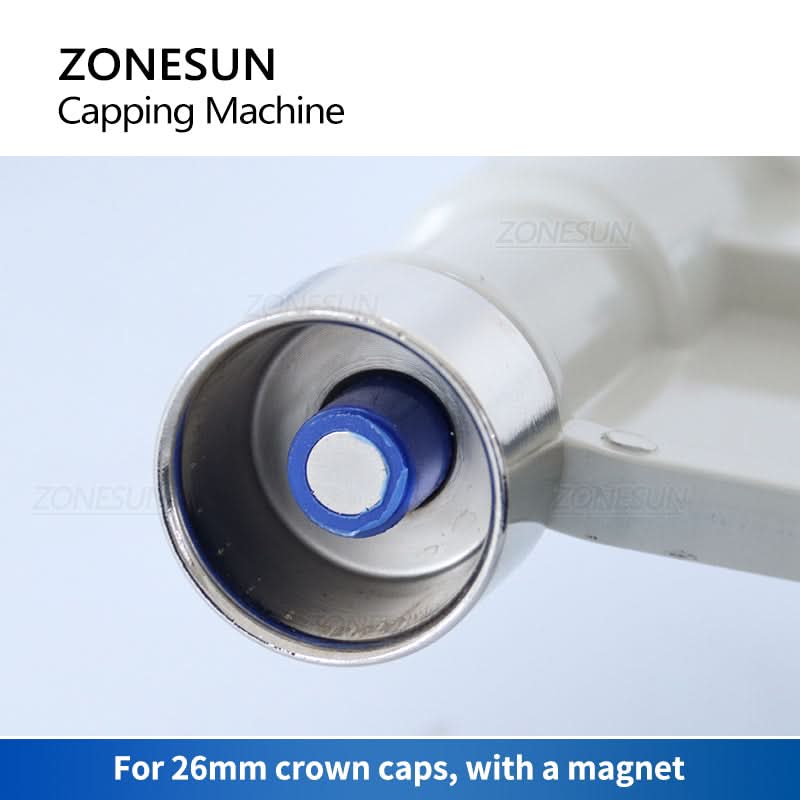

Capping Head
The stainless steel capping head is designed for 26 mm crown caps. An integrated magnet holds the cap in position.
Guide Mechanism
The curved guide mechanism and durable spring support smooth downward pressing.
Non-Slip Grip
The non-slip grip supports a secure hold during manual pressing.
Rubber Bottle Pad
The non-slip rubber pad helps keep the bottle positioned during capping.

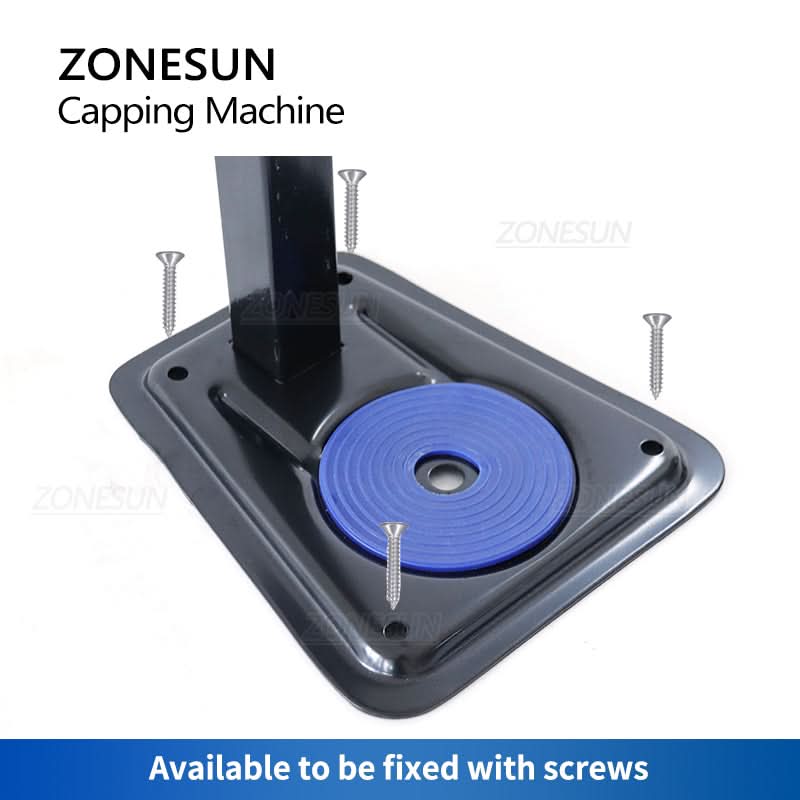

Mounting Base
The base can be secured with screws.
How to Use
- Place a compatible 26 mm crown cap inside the capping head. The magnet holds it in place.
- Position the bottle on the rubber pad and adjust the capping assembly to suit its height.
- Hold the grip and press the lever downwards to crimp the crown cap onto the bottle.
- Remove the bottle and check the completed cap seal.
