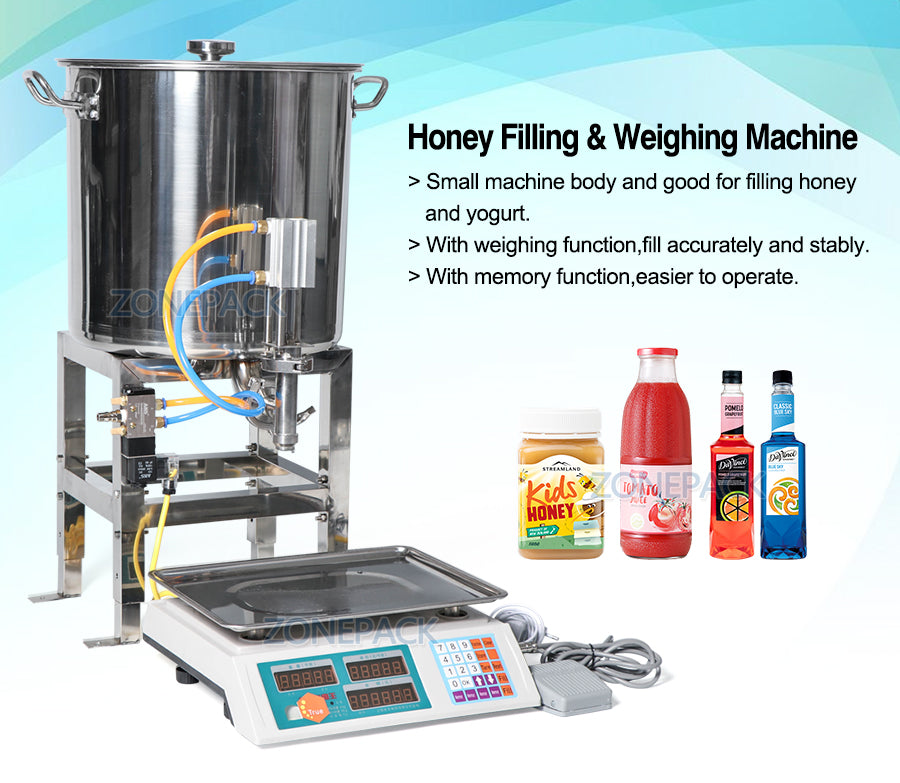

Weight-Based Filling for Honey, Yogurt and Flowable Pastes

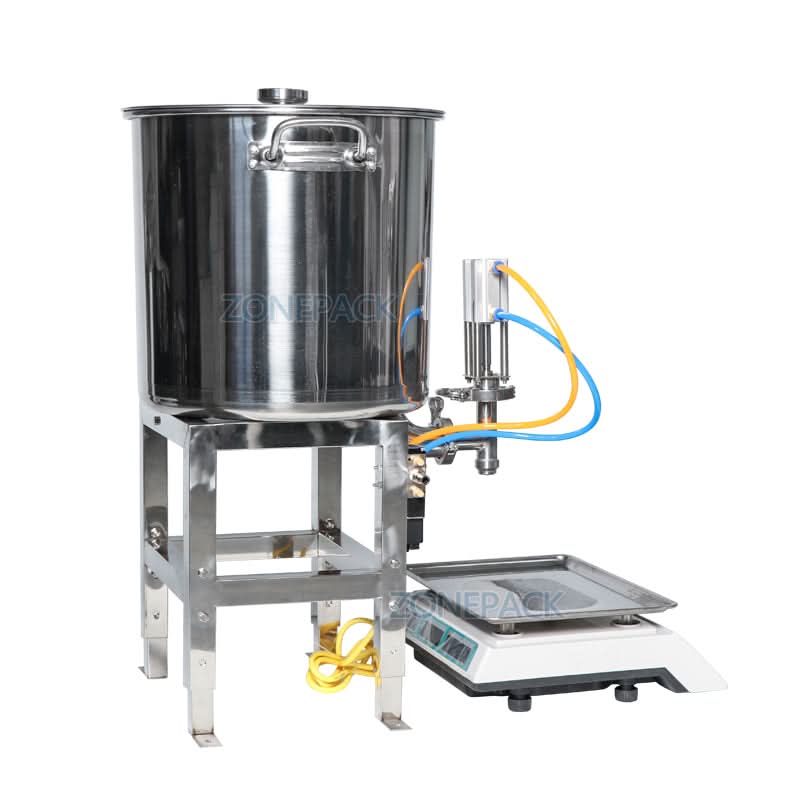

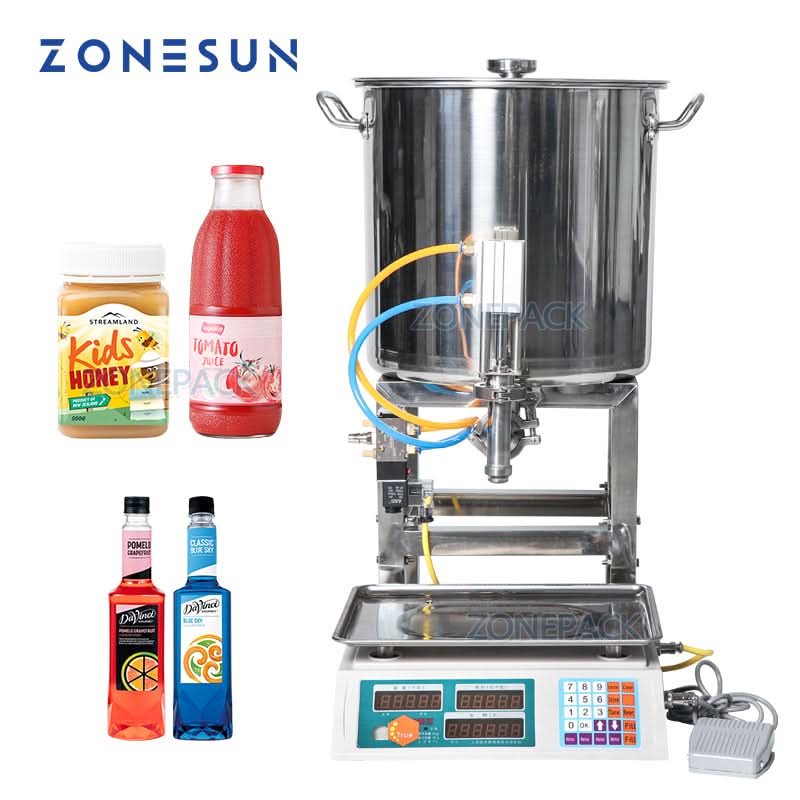

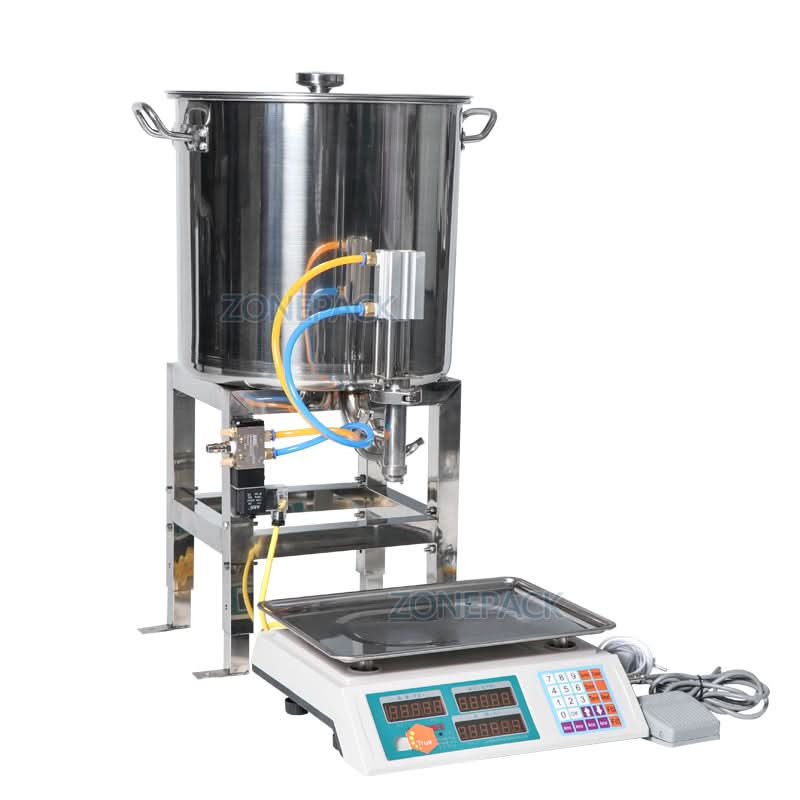

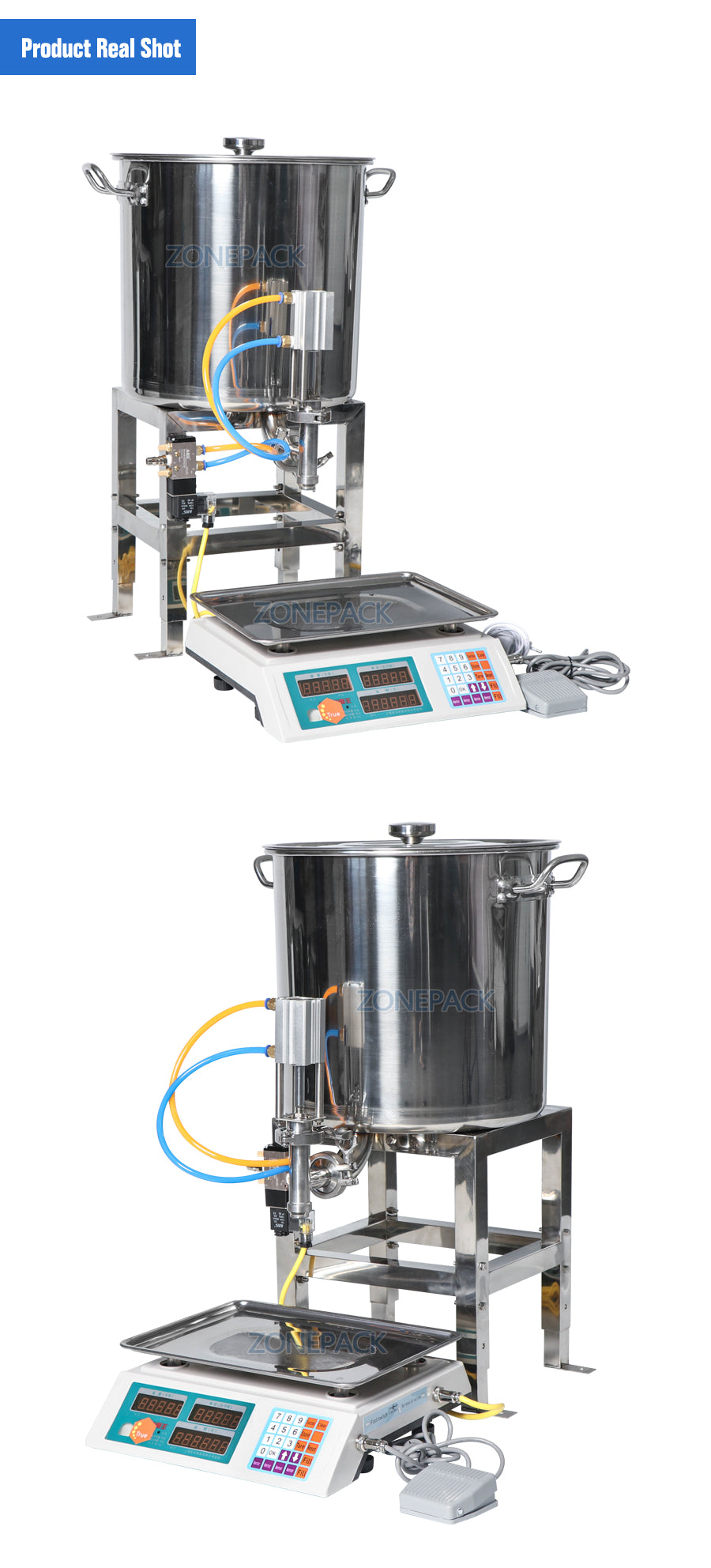

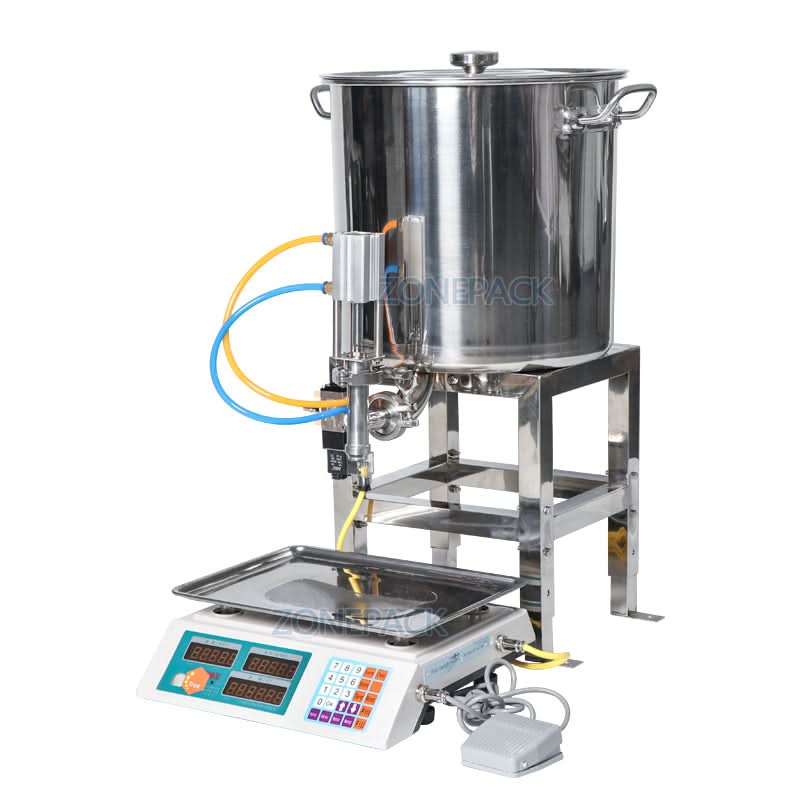

The ZONESUN ZS-FMW2500 is a semi-automatic pneumatic weighing filler with a filling range of 50–2500 g. It is designed for suitable liquids and flowable pastes with a viscosity below 3000 cP, including honey, yogurt, milk, sesame oil and sesame paste. It can also handle flowing products containing soft, evenly distributed particles.
- 33 L product tank
- Approximately ±2 g filling accuracy
- Automatic and pedal-switch control
- Memory for six groups of working data
- Detachable filling nozzle for cleaning
Air supply required: An air compressor is required and is sold separately. The specified air pressure is 0.3–0.8 MPa.
Technical Specifications
| Filling tank volume | 33 L |
|---|---|
| Filling speed | 80 g/s |
| Filling range | 50–2500 g |
| Filling accuracy | Approx. ±2 g |
| Nozzle diameters | Φ8 / Φ10 / Φ12 / Φ19 (standard) / Φ25 mm |
| Voltage | 110 V / 220 V |
| Air pressure | 0.3–0.8 MPa |
| Working temperature | 18–35°C |
| Power consumption | <5 W |
| Machine size | 450 × 700 × 700 mm |
| Net weight | Host: 10 kg; shelf: 2.5 kg |
| Packing size | Host: 440 × 430 × 540 mm; shelf: 330 × 330 × 280 mm |
| Gross weight | Host: 11 kg; shelf: 3 kg |
Before ordering: Provide the product viscosity, particle size, target filling weight, container opening and required voltage (110 V or 220 V). Filling performance depends on product flow and uniformity; sample testing is recommended.
Operation Panel
Set the filling weight using the control panel.
The memory function stores six groups of working data for different production requirements.
Automatic and Pedal Control
Choose automatic operation or pedal-switch control according to your filling task.

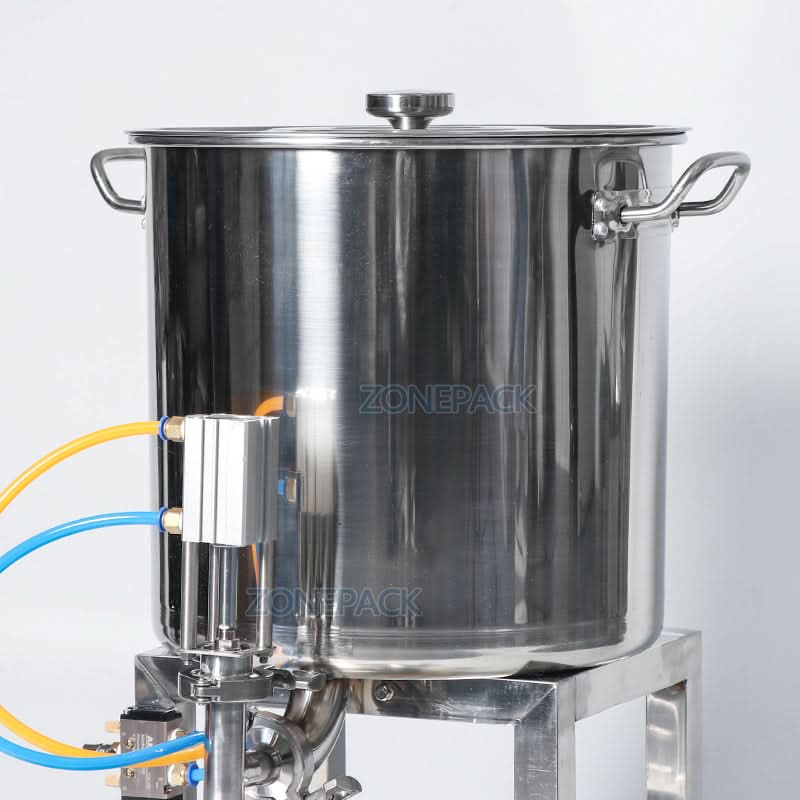

33 L Filling Tank
The 33 L tank provides space for the product supply and makes material feeding easier.
Detachable Filling Nozzle
Remove the filling nozzle for cleaning after use.
Five nozzle sizes are supplied for selection according to production requirements.
