Description

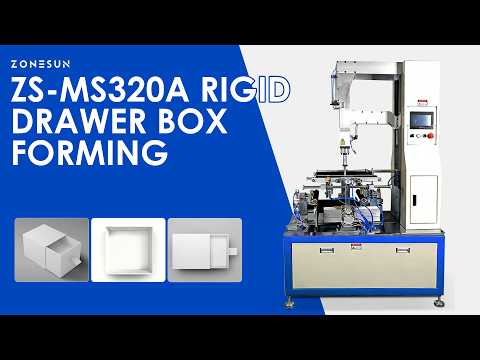

The ZONESUN ZS-MS320A is a semi-automatic rigid drawer box forming machine designed for high-end packaging applications such as luxury boxes, gift boxes, and drawer inner boxes. Operating at 15–25 pcs/min, it transforms pre-glued paper and greyboard into perfectly formed rigid boxes through a precise sequence of wrapping, folding, and pressing actions. Using servo-driven mechanisms, durable pressing boards, and multi-stage forming units, the machine ensures tight edges, clean corners, and a bubble-free surface. With quick mold changeover and support for three box types, it offers excellent flexibility for small to medium-scale premium packaging production.
ZS‑MS320A
| Max Box Size | 420 × 320 × 100 mm |
| Min Box Size | 40 × 40 × 10 mm |
| Speed | 15–25 pcs/min |
| Motor Power | 1.5 kW |
| Voltage | 220 V, 50 Hz |
| Air Pressure | 0.8 MPa |
| Weight | 650 kg |
| Dimension | 800 × 1110 × 2030 mm |
| Package Dimension | 900 × 1280 × 1930 mm |
ZS‑MS520A
| Max Box Size | 520 × 420 × 150 mm |
| Min Box Size | 80 × 80 × 10 mm |
| Speed | 15–25 pcs/min |
| Motor Power | 1.5 kW |
| Voltage | 220 V, 50 Hz |
| Air Pressure | 0.8 MPa |
| Weight | 850 kg |
| Dimension | 1010 × 1280 × 2300 mm |
| Package Dimension | 1110 × 1450 × 2200 mm |
ZS‑MS620A (Customized Model)
| Max Box Size | 620 × 520 × 150 mm |
| Min Box Size | 120 × 100 × 15 mm |
| Speed | 15–25 pcs/min |
| Motor Power | 1.5 kW |
| Voltage | 220 V, 50 Hz |
| Air Pressure | 0.8 MPa |
| Weight | 950 kg |
| Dimension | 1110 × 1380 × 2300 mm |
| Package Dimension | 1210 × 1600 × 2200 mm |
| Remark | Special size customizable (sample + size required) |
PASTING & BRUSHING
Simultaneously wraps and presses glued paper using four motorized rotating brushes to guarantee seamless adhesion and a wrinkle-free, bubble-free finish.
PRECISION CORNER TUCKING & FOLDING Creates crisp, seamless $90^\circ$ box corners with configurable single/double tucking modes—folding all corners simultaneously or in sequence for pristine edges.
FOUR-SIDE WRAPPING & PRESSING MECHANISM
Sequentially folds and firmly presses all four box sides using high-durability wiper boards, ensuring tight paper bonding and a smooth surface.
PNEUMATIC AUTOMATIC EJECTOR / DISCHARGE Employs a dual-cylinder actuation system to smoothly push out wrapped boxes, preventing jams and maintaining uninterrupted high-speed operation.
