Automatic Ring-Type Carton Sealing

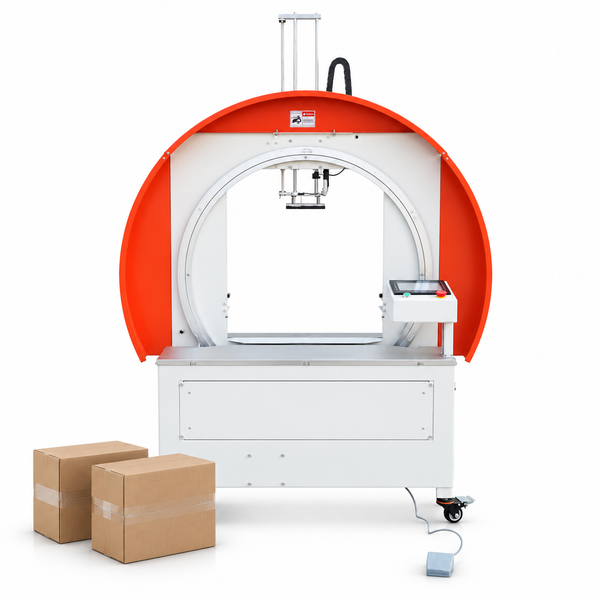

The ZONESUN ZS-TFX6060 is an automatic ring-type carton sealer for applying tape around cartons. Its ring-track design carries the tape around the box for a consistent wrap. The listed sealing speed is 0–12 cartons per minute. Adjustable components and PLC control support repeatable carton sealing for parcel stations, logistics operations, and production lines.
Key Features
- Ring-track tape application: Wraps tape around the carton as the dispenser moves along the circular track.
- PLC touchscreen control: Set operating parameters and manage sealing cycles through the touchscreen.
- Adjustable pressure plates: Spring-loaded plates help hold cartons in position during sealing.
- Photoelectric detection: Detects incoming cartons to trigger the sealing cycle.
- Locking casters: Braked swivel casters help with positioning and securing the machine.
Technical Specifications
| Model | ZS-TFX6060 |
|---|---|
| Power supply | 110V or 220V AC, 50–60Hz |
| Power | 450W |
| Sealing speed | 0–12 cartons/min |
| Tape width | 45mm |
| Working table height | 700–750mm |
| Maximum carton size | Unlimited × 600 × 600mm |
| Minimum carton size, single-machine operation | 100 × 80 × 100mm |
| Minimum cross-sealing size, conventional line | 320 × 80 × 90mm |
| Minimum cross-sealing size with ZS-FXC5050A | 150 × 80 × 90mm |
| Machine dimensions | 718 × 1386 × 2093mm |
Carton compatibility: Minimum carton sizes vary by setup. The carton-size figures above are shown as supplied; please confirm dimension orientation and compatibility with your cartons and production-line layout before ordering. Actual output may vary with carton size and operating conditions.
Machine Details
PLC Touchscreen Control
Manage operating parameters and sealing cycles through the touchscreen interface.
Adjustable Pressure Plate
Spring-loaded plates adapt to carton dimensions and help hold boxes in position for tape application.
Orbital Tape Dispenser
The dispenser moves along the circular track to apply tape around the carton.
Photoelectric Detection Sensor
Detects incoming cartons and triggers the automatic sealing cycle.
Locking Casters
Braked swivel casters help position and secure the machine.
