Automatic Weighing, Filling and Sealing for Premade Pouches
The ZONESUN ZS-AFS04W combines a four-head linear weigher with automatic premade pouch feeding, filling, heat sealing and finished pouch discharge. It is designed for compatible seasoning powders, spices, dried herbs, granular seasonings and dry ingredient mixes.
Price: US$12,800. Shipping, taxes and import duties are not included.
Air compressor required and sold separately. The machine requires a 0.6MPa compressed-air supply. Inkjet coding and nitrogen flushing are optional and must be quoted and configured separately.
Key Features
- Four independent weighing heads and vibratory feeding channels support single-product or mixed-product packaging with a suitable feeding setup.
- Fast feeding followed by slower top-up feeding helps control target weight.
- Touchscreen settings and recipe storage simplify product changeovers.
- Automatic pouch feeding and a no-pouch-no-filling function reduce manual handling and unintended discharge.
- Adjustable heat-sealing temperature, pressure and dwell time accommodate compatible pouch materials.
- Integrated vacuum dust collection helps reduce airborne dust during weighing and filling.
- An outfeed conveyor transfers sealed pouches for collection or downstream handling.
Suitable Products and Pouches
Use with compatible free-flowing dry products and heat-sealable premade pouches. Flat pouches, stand-up pouches and certain zipper pouches can be processed, subject to pouch construction and machine setup. Confirm material flowability, particle size, target weight and pouch dimensions with samples before ordering. Performance varies with the product and packaging; not every powder or zipper pouch is suitable.
Packaging Workflow
- Load the product hopper and premade pouch magazine.
- Select the recipe and set the target weight and sealing parameters.
- The machine feeds pouches, weighs and dispenses the product, then heat-seals each pouch.
- Sealed pouches leave on the discharge conveyor for collection.
Technical Specifications
| Model | ZS-AFS04W |
|---|---|
| Power supply | 110V or 220V, 50–60Hz (select voltage) |
| Power | 4kW |
| Weighing heads | 4 |
| Weighing range | 2–500g |
| Weighing accuracy | ±1.5%, subject to material and operating conditions |
| Pouch width × length | 60–220 × 80–310mm |
| Packaging speed | Approx. 5–30 bags/min, depending on filling material |
| Hopper capacity | 32L |
| Air pressure | 0.6MPa |
| Machine dimensions (L × W × H) | Approx. 1300 × 900 × 1910mm |
| Package dimensions (L × W × H) | Approx. 1400 × 1100 × 2100mm |
| Package weight | Approx. 495kg |
Before Ordering
Please confirm the selected voltage, material samples, target fill weight, pouch samples and required output. Confirm air consumption and compressor capacity, electrical supply requirements, and any optional coding or nitrogen-flushing equipment for your installation.
Machine Details

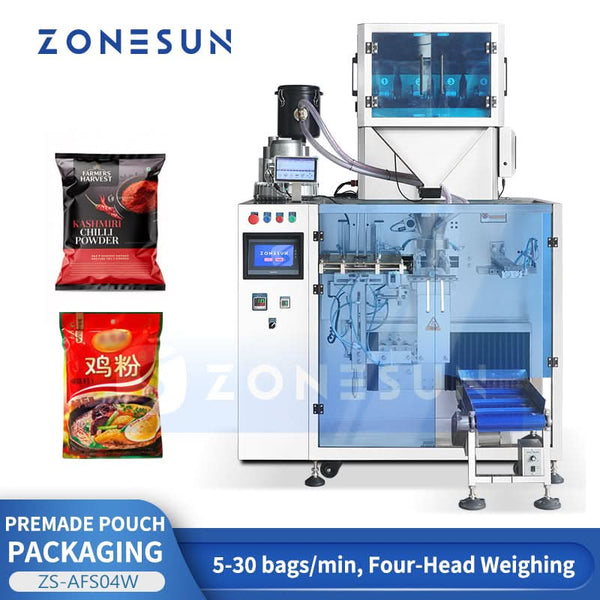

Automatic Premade Pouch Packaging
Integrates four-head weighing, automatic pouch feeding, filling, heat sealing and finished pouch discharge for compatible powders and granules.
Applications
Suitable for compatible seasoning powders, spices, dried herbs, granular seasonings and dry mixes. Material and pouch compatibility should be confirmed with samples.
Specifications
Weighing range: 2–500g. Pouch size: 60–220mm wide × 80–310mm long. Speed: approximately 5–30 bags/min, depending on the product and operating conditions.
Machine Structure
The integrated layout includes weighing scales, vacuum dust collection, pouch feeding, filling and sealing stations, protective covers and a discharge conveyor. The illustrated inkjet printer is optional.
Air Supply Required
An air compressor is required and sold separately. Required working air pressure: 0.6MPa. Confirm compressor capacity for the installation.

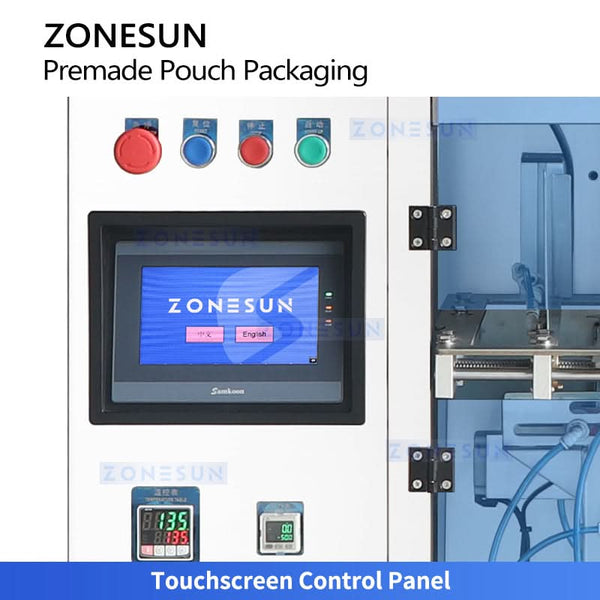

Touchscreen Control Panel
Allows operators to set weighing and packaging parameters, save product recipes, and monitor machine operation through the touchscreen interface.

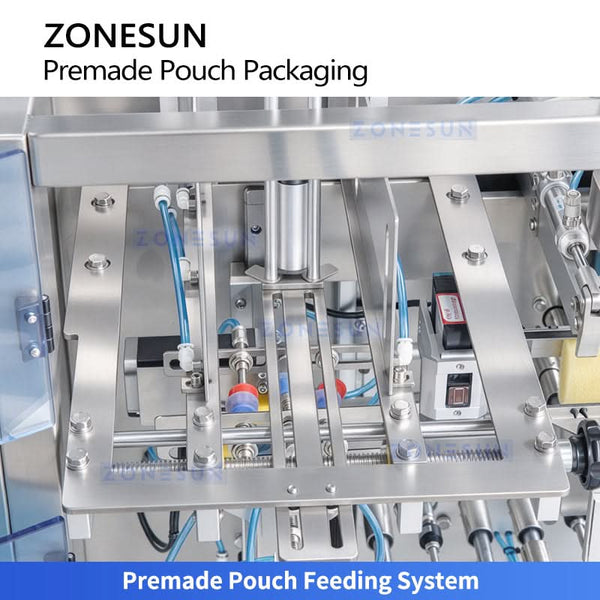

Premade Pouch Feeding System
Stores premade pouches and automatically feeds them into the packaging system for continuous operation, helping maintain a stable pouch supply and reduce manual pouch handling.

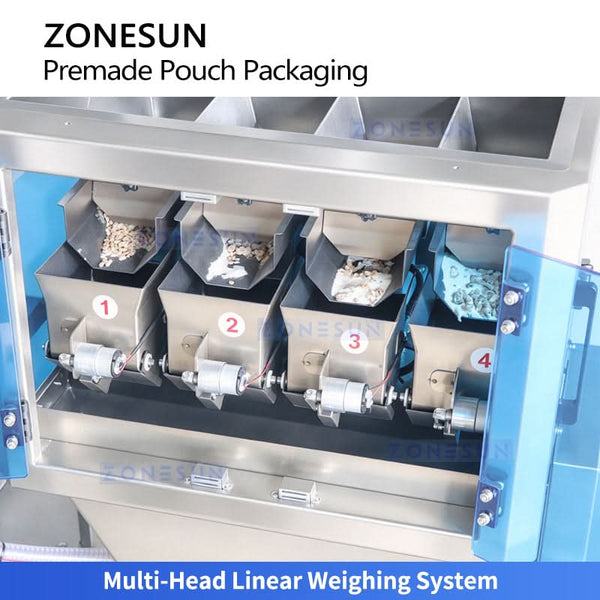

Four-Head Linear Weighing System
Four independent weighing heads measure compatible dry products. Flexible feeding configurations support single-product or mixed-product packaging.

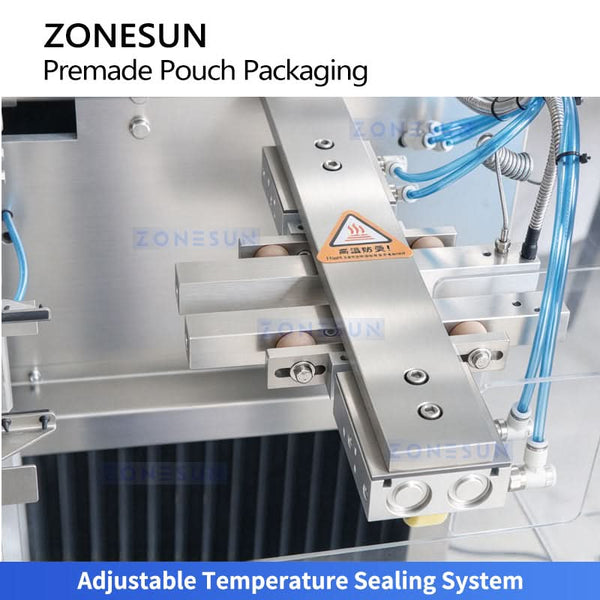

Adjustable Temperature Sealing System
Adjustable sealing temperature accommodates compatible pouch materials and helps achieve consistent heat seals.
Vacuum Dust Collection System
Captures airborne dust generated during weighing and filling, helping reduce dust dispersion and keep the packaging area cleaner.

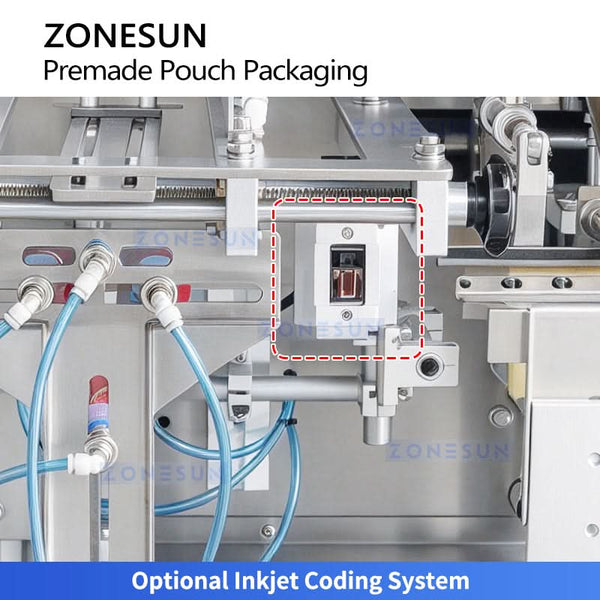

Optional Inkjet Coding System
An optional inkjet printer adds production dates, batch numbers and other variable information to compatible pouches. Printing requirements and ink options must be confirmed separately.
Finished Pouch Discharge Conveyor
The adjustable-speed outfeed conveyor transfers finished, sealed pouches away from the packaging station for collection or downstream handling.

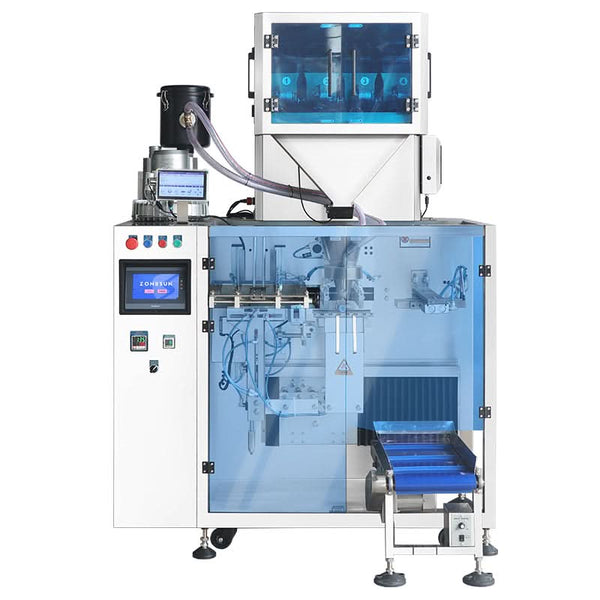

Complete Machine — Front View
Front view of the ZS-AFS04W, showing the four-head linear weigher, touchscreen controls, enclosed pouch packaging area and finished pouch discharge conveyor. The illustrated inkjet coding system is optional.
Complete Machine — Angled View
Angled view showing the integrated weighing, pouch filling and sealing layout, vacuum dust collection system and outfeed conveyor.
