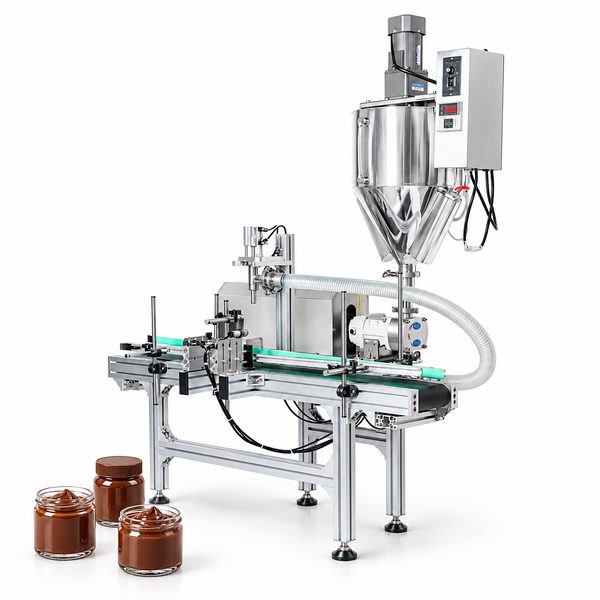

The ZS-DTGT900M is a high-performance automatic filling machine designed for viscous pastes and fluid liquids — including butter, chocolate, honey, chili paste, and juice. Equipped with a rotor pump, integrated mixer, and heating function, it delivers smooth and precise filling even for challenging materials. Compatible with automated capping and labeling units for fully streamlined production in food, cosmetics, and chemical industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-DTGT900M |
| Machine Power | 1500 W |
| Recommended Filling Volume | 50 – 5000 ml |
| Filling Accuracy | ≤ ±1% |
| Minimum Bottle Opening | φ > 20 mm |
| Mixing Speed | 0 – 100 r/min (adjustable) |
| Heating Temperature | ≤ 399 °C |
| Hopper Capacity | 50 L |
| Working Speed | 10 – 60 bottles/min (based on 250 ml jam) |
| Machine Dimensions | Approx. 1090 × 700 × 680 mm |
| Machine Weight | Approx. 54 kg |
| Voltage Options | 110V / 220V |
Key Features
- Rotor pump drive — handles high-viscosity materials such as butter, chocolate, honey, and chili paste without clogging or loss of accuracy.
- Integrated heating system — maintains material temperature up to 399 °C to keep viscous products fluid and fillable throughout the production run.
- Built-in mixer — continuously agitates the 50 L hopper at 0–100 r/min to prevent separation and ensure consistent product quality.
- Wide filling range — covers 50 ml to 5000 ml per fill with accuracy held to ±1%, reducing waste and rework.
- High throughput — up to 60 bottles per minute (250 ml jam reference), suitable for small-batch and mid-scale production lines.
- Dual voltage support — available in 110V and 220V configurations for global deployment.
- Inline integration ready — compatible with ZONESUN capping and labeling machines for a fully automated packaging line.
- Multi-industry application — validated for food and beverage, cosmetics, pharmaceutical, and chemical filling operations.
DIGITAL CONTROL PANEL
The digital control panel makes it easy to set filling time and waiting time. It also displays the number of filled bottles for clear, accurate monitoring.
MIXING AND HEATING HOPPER
The heating and mixing functions help keep the material uniform during filling. Heating temperature and mixing speed can be adjusted through the control panel.
SERVO-DRIVEN ROTOR PUMP
The filling system combines a servo motor with a positive-displacement cam rotor pump. Its fixed displacement per revolution allows the servo motor to control the pump speed accurately for metered filling.
HEIGHT-ADJUSTABLE FILLING HEAD
The filling head provides sufficient power for viscous liquids such as honey and chocolate. Its height can be adjusted to suit bottles of different heights.
ADJUSTABLE BOTTLE SENSOR
The electric eye detects bottles and controls machine operation. Its sensitivity can be adjusted as required.
