Description

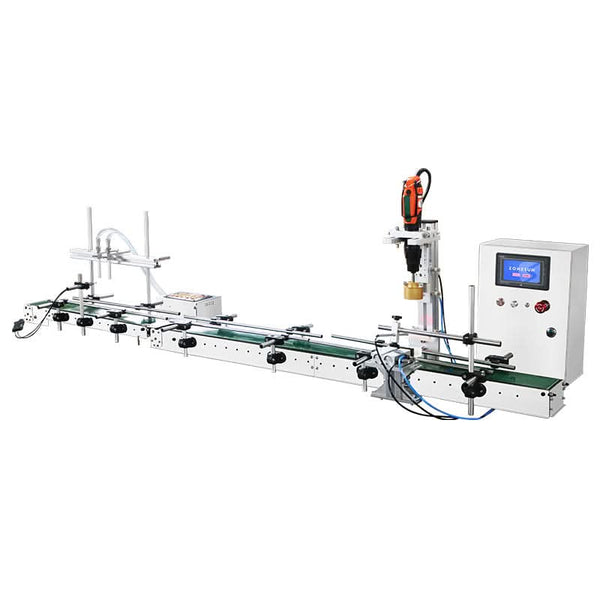

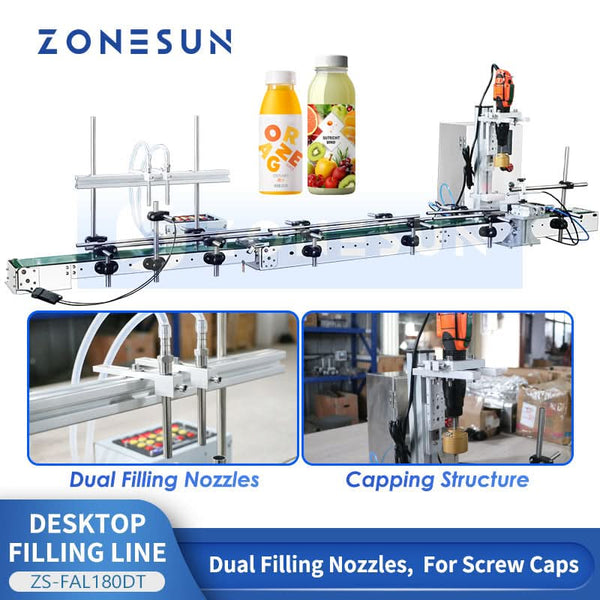

The ZONESUN ZS-FAL180DT is a compact desktop dual-head filling and capping production line designed for small to medium-scale liquid packaging. Equipped with dual filling nozzles, an electric eye for bottle detection, a motor-driven capping structure with pneumatic lifting, and a bottle clamping mechanism, it provides stable, accurate, and synchronized filling-capping performance.Ideal for water, beverages, sauces, juices, soybean milk, toner, and other low-viscosity, particle-free, non-foaming liquids. Its modular design integrates filling, conveying, bottle positioning, and screw-cap tightening into one streamlined system, making it ideal for laboratories, workshops, and small production environments.
Parameter
Filling Machine
Model： ZS-DPYT1500
Output Voltage： DC 12 V
Max Temperature： 5–100 °C
Minimum Filling Rate： 5 ml
Recommended Filling Range： 5–250 ml
Max Filling Rate： 3000 ml/min
Filling Speed： Adjustable
Filling Counter： 1–9999
Inlet Tube Length： 1.5 m
Outlet Tube Length： 0.8 m
Memory Function： Available
Working Modes： Manual / Automatic / Intelligent Induction
Filling Nozzle Diameter： 7 mm (Inner) × 11 mm (Outer)
Machine Size (L × W × H)： 636 × 166 × 179 mm
Package Size (L × W × H)： 650 × 170 × 180 mm
Capping Machine
Model： ZS-XGC1
Voltage： 110 / 220 V, 50–60 Hz
Capacity： 15–24 seals/min
Cap Diameter： Standard 10–50 mm (Customizable)
Bottle Diameter： 30–70 mm
Bottle Height： 90–200 mm
Capper Power： 100 W
Capper Pressure： 3–40 kgf/cm²
Conveyor Size： 1200 × 100 mm
Conveyor Payload： 6 kg

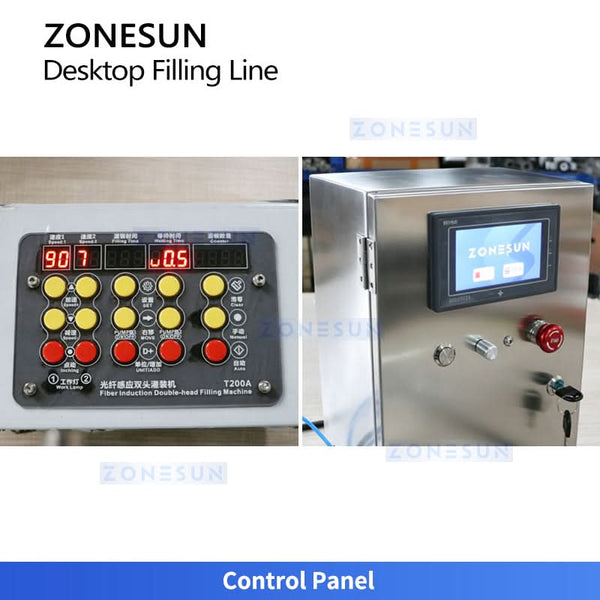

Control Panel
Controls the filling and capping units independently, allowing operators to set parameters, start/stop operations, and monitor working status for stable, synchronized production.

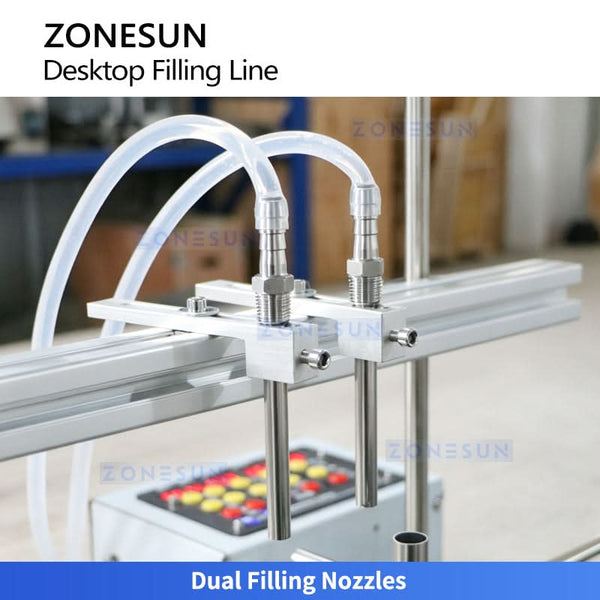

Dual Filling Nozzles
Dispense liquid into two lanes with controlled volume and stable flow, ensuring accurate, consistent, and splash-free dual-head filling for continuous production.

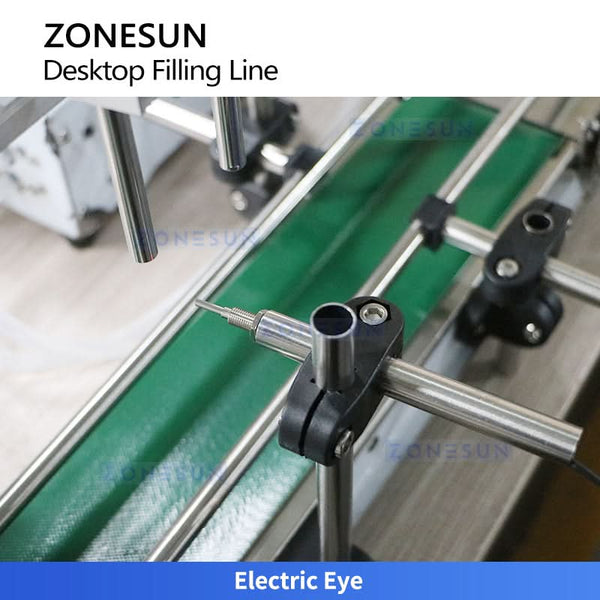

Electric Eye
Detects the presence and position of bottles on the conveyor to ensure accurate filling and capping, preventing missed bottles, misalignment, and operation errors.

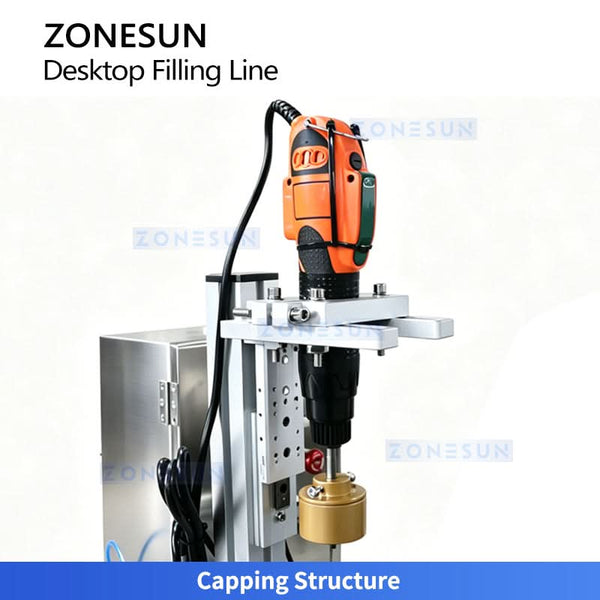

Capping Structure
Provides motor-driven cap gripping and tightening with controlled torque, with pneumatic lifting for smooth height adjustment, ensuring stable sealing.

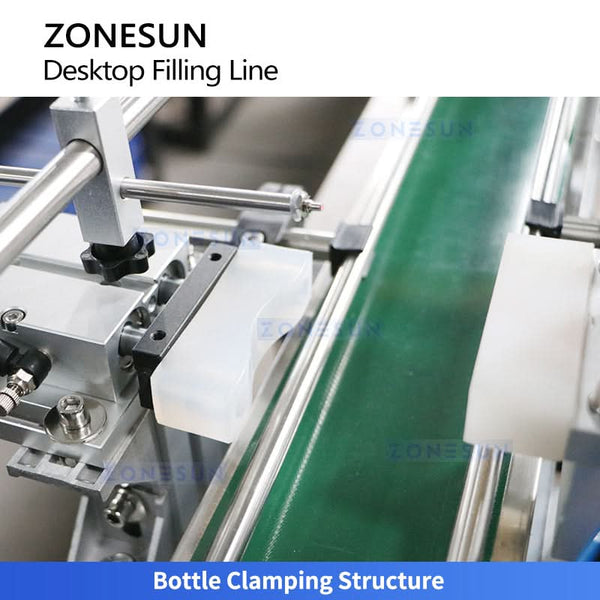

Bottle Clamping Structure
Holds and stabilizes bottles during the capping process to prevent movement or tilting, ensuring accurate cap engagement and consistent sealing quality.
