Overview
The ZONESUN ZS-FAL180V16 is a complete automatic liquid filling line that integrates bottle unscrambling, gear pump tracking filling, cap dropping, capping, and checkweighing with auto-rejection into one continuous system. Combining five dedicated machines, it delivers smooth bottle handling, precise filling, reliable capping, and accurate weight inspection — ideal for sauces, syrups, oils, cosmetics, liquid detergents, and other liquid products.
Production Flow

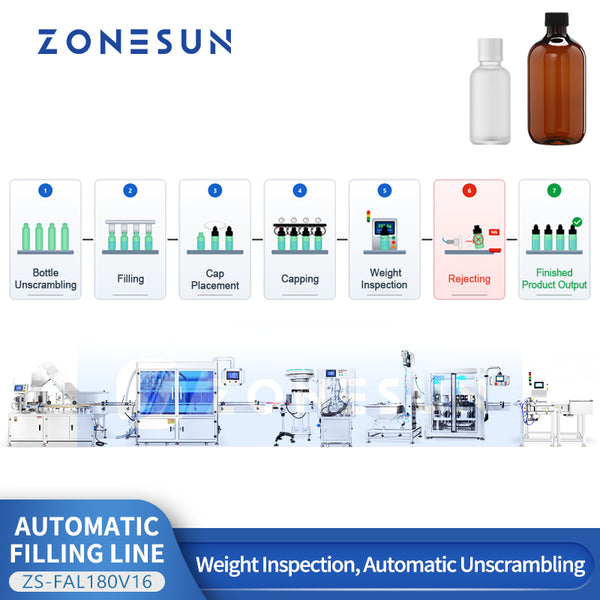

Bottle Unscrambling → Tracking Filling → Cap Dropping → Capping → Weight Inspection → Auto Rejection → Finished Output

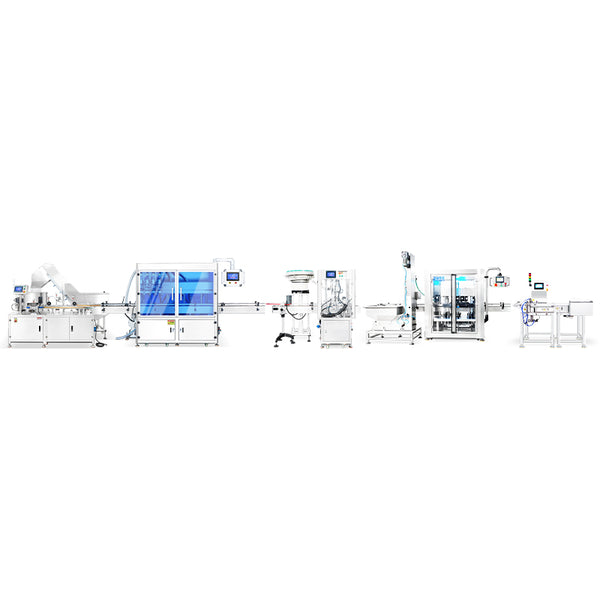

Main Equipment
- ZS-LP300 — Bottle Unscrambler
- ZS-VTGF4 — Gear Pump Tracking Filling Machine
- ZS-XG446S — Cap Dropping Machine
- ZS-XG440B — Capping Machine
- ZS-MD210 — Checkweigher & Rejecting Machine
Key Features
Bottle Unscrambling (ZS-LP300)
Automatically organizes and feeds bottles into the line for continuous, orderly transfer to the filling station.
Tracking Filling (ZS-VTGF4)
Gear pump filling head follows bottle movement during filling — no stop-and-go, enabling true continuous production.
Cap Dropping (ZS-XG446S)
Guides and places caps precisely onto bottle openings before capping for stable, accurate cap positioning.
Automatic Capping (ZS-XG440B)
Tightens caps continuously after placement. Handles bottle diameters of 35–120 mm at 2,000–6,000 bottles/hour.
Checkweighing & Auto Rejection (ZS-MD210)
Inspects the weight of every filled and capped bottle. Automatically rejects out-of-spec products to maintain consistent quality.
Performance Highlights
- 2,000–6,000 bottles/hour (depending on bottle size)
- Bottle diameter: 35–120 mm (customizable)
- Fully integrated 5-machine line — one control system
- Continuous tracking fill — no bottle stopping required
- Automatic weight-based rejection after capping
ZS-XG440B Capping Machine Specifications
| Power Supply | AC 110 V / 220 V, 50/60 Hz |
| Power | 2,000 W |
| Bottle Diameter | 35–120 mm (customizable) |
| Capacity | 2,000–6,000 bottles/hour |
| Machine Size (L×W×H) | 2,000 × 900 × 1,600 mm |
| Conveyor Height | 800–850 mm |
| Net Weight | 300 kg |
Applications
Suited for continuous liquid packaging lines handling sauces, syrups, edible oils, cosmetics, liquid detergents, and similar products. The integrated unscrambling-to-rejection workflow minimizes manual intervention across the entire packaging process.
Unscrambling Disc: Arranges randomly oriented bottles into an orderly sequence and separates them one by one for downstream processing.

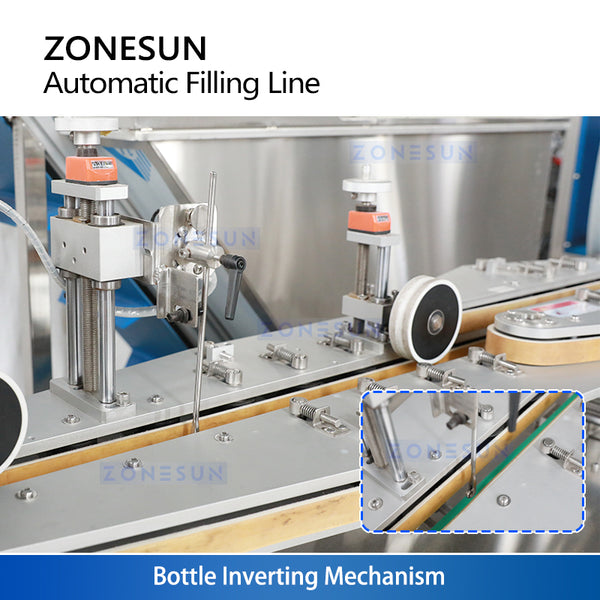

Bottle Inverting: Automatically turns bottles to the required orientation and positions them upright for smooth transfer to the next processing station.

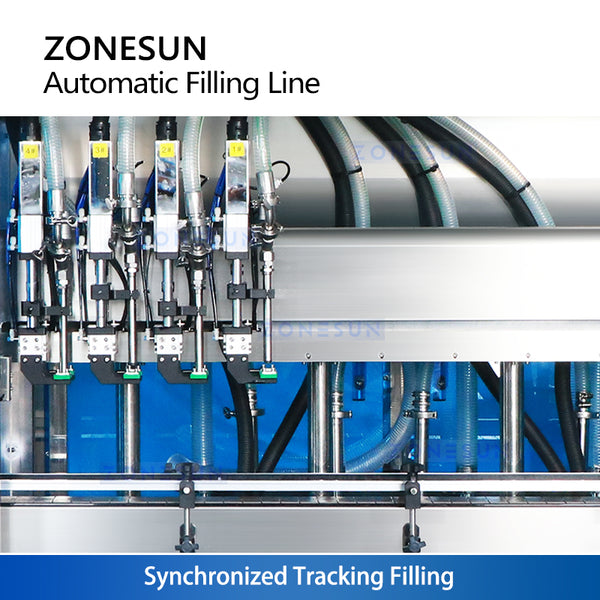

Tracking Filling: Anti-drip filling nozzles move in sync with bottles on the conveyor belt, allowing filling while the bottles are moving.

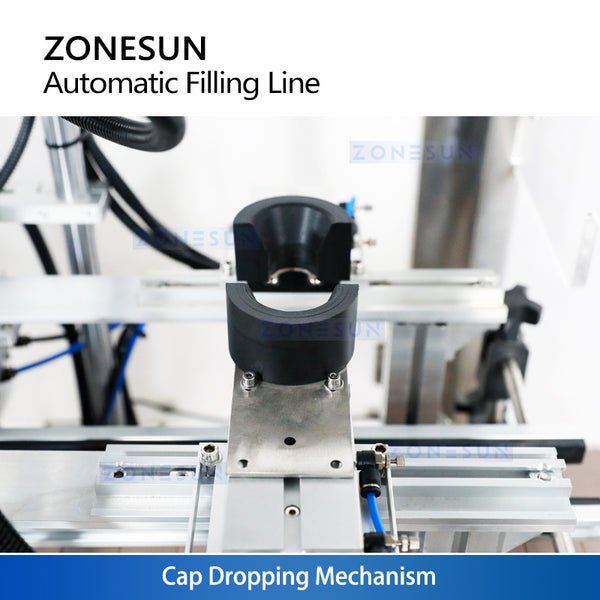

Cap Dropping Mechanism: Guides and places caps accurately onto bottle openings, ensuring stable cap feeding and precise positioning for the subsequent capping process.

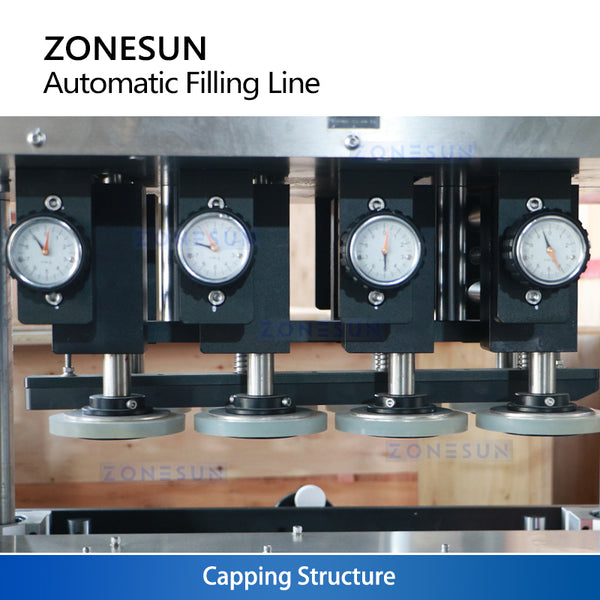

Capping System: Provides a capacity of 3,000–5,000 bottles per hour. The number of capping heads can be customized to production requirements.

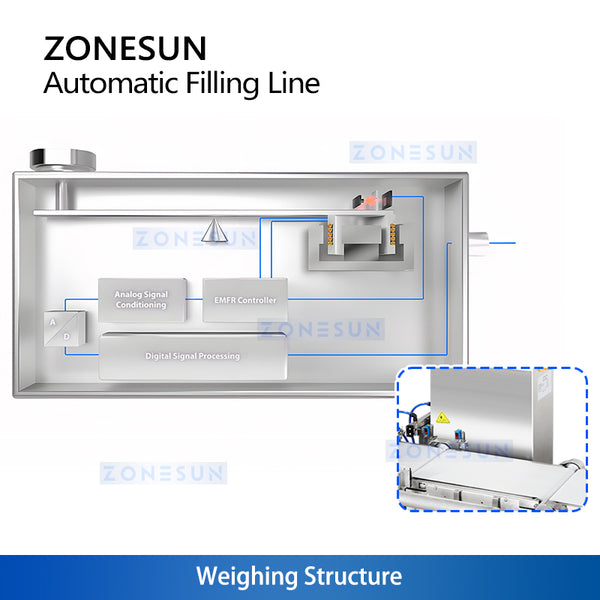

Weighing System: Provides stable and accurate dynamic weight inspection for reliable quality control and consistent product weight during continuous production.
Rejection System: The rejection method can be customized for different products, with push-rod, swing-arm, flip-plate, air-blow, and belt-sinking options.
