Description

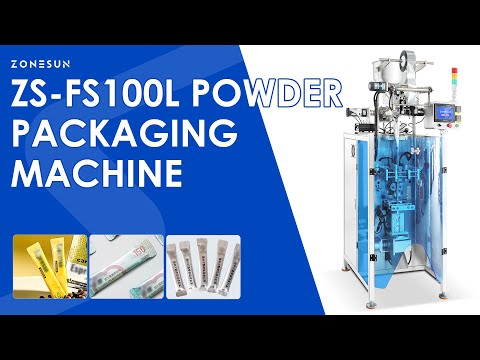

The ZONESUN ZS-FS100L is a compact vertical form-fill-seal (VFFS) machine designed for precise powder dosing and automatic sachet packaging. It integrates film pulling, bag forming, auger filling, and heat sealing into a single streamlined unit. Operating at 30–50 sachets per minute, it supports a filling range of 5–100 ml with ±1% accuracy. Ideal for pharmaceutical, food, and chemical industries requiring efficient small-dose powder packaging in laminated film sachets.
Parameter
- Machine Model: ZS-FS100L
- Working Speed: 30–50 bags/min
- Filling Range: 5–100 ml
- Filling Accuracy: ±1%
- Bag Size Supported: Length 50–150 mm / Width 20–40 mm
- Power Consumption: 4 kW
- Voltage: 220V
- Machine Weight: 340 kg
- Machine Dimensions: 1080 × 790 × 1750 mm
CONTROL PANEL
Supports customizable languages, packaging-parameter control, machine-status monitoring, and operating adjustments.
Supports customizable languages, packaging-parameter control, machine-status monitoring, and operating adjustments.
AUGER FEEDING
Uses a rotating screw to transfer powder from the hopper continuously and at a controlled rate.
Uses a rotating screw to transfer powder from the hopper continuously and at a controlled rate.
HEAT SEALING
Applies heat and pressure to seal the packaging film into airtight sachets.
Applies heat and pressure to seal the packaging film into airtight sachets.
SACHET CUTTING
Cuts continuous film into uniform sachets with clean edges, using a positioning block for accurate alignment.
Cuts continuous film into uniform sachets with clean edges, using a positioning block for accurate alignment.
DATE CODING
Prints production dates, batch numbers, and expiry information in synchronization with the packaging cycle.
Prints production dates, batch numbers, and expiry information in synchronization with the packaging cycle.
