The ZONESUN ZS-YTEXW2 is a semi-automatic weighing filling machine for compatible industrial liquids in IBC tanks, drums, and other large containers. The operator positions the container and filling arm; the machine controls filling by weight.
Specifications
| Model | ZS-YTEXW2 |
|---|---|
| Filling method | Weight-based filling |
| Compatible containers | IBC tanks, 25 L containers, 200 L drums, and other compatible large containers |
| Filling speed | 25–35 containers/hour |
| Filling accuracy | ±0.1%–0.3% |
| Voltage | Single-phase 220 V; customizable |
| Power | 3 kW |
| Feeding pump | External pump; selected separately and not included |
| Product-contact parts | SUS304 stainless steel with PTFE seals |
| Electrical configuration | Explosion-proof configuration |
| Package dimensions | Approx. 2370 × 860 × 1440 mm |
| Package weight | Approx. 774 kg |
Key Features
- Weight-based filling: Monitors container weight in real time and supports automatic tare for the empty container or pallet.
- Fast/slow filling: Slows the flow near the target weight to balance speed and accuracy.
- Movable arm and lifting lance: Adjusts to different container openings; the lance lowers during filling to help reduce splashing and foaming.
- Product-contact materials: SUS304 stainless steel with PTFE seals. Confirm compatibility with the actual liquid.
Before Ordering
- Feeding pump is not included. Select a compatible external pump based on liquid viscosity, flow requirements, and material compatibility.
- Explosion-proof configuration: Confirm that the machine configuration and any certifications required at the installation site meet local regulations.
Applications: Compatible coatings, solvents, resins, lubricants, and other flowable industrial liquids. Verify chemical compatibility before ordering, especially for corrosive or special liquids.
Product Details

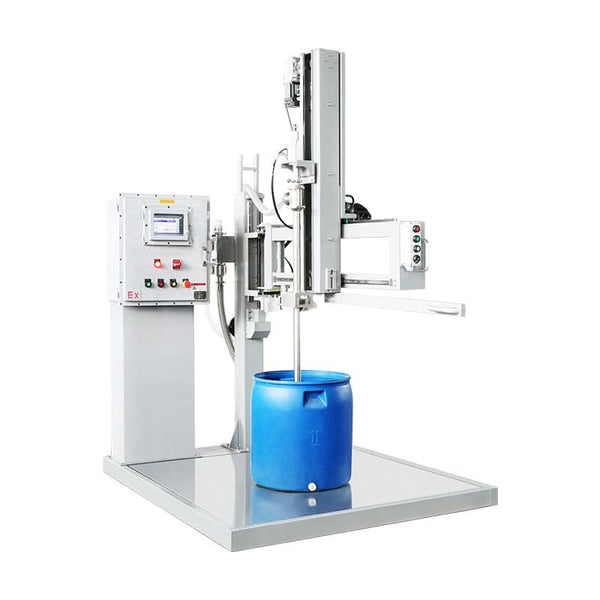

Machine overview. Semi-automatic weight filling for IBC tanks, drums, and other large containers.
Container applications. Suitable for compatible IBC tanks, drums, and large containers. Confirm container dimensions and opening size.
Specifications. Single-phase 220 V (customizable), 3 kW, 25–35 containers/hour, ±0.1%–0.3% accuracy, external feeding pump sold separately, SUS304 contact parts, approx. 2370 × 860 × 1440 mm package dimensions, approx. 774 kg package weight. The source chart has a model spelling error; the correct model is ZS-YTEXW2.
Main components. Explosion-proof control panel, movable filling arm, filling lance, and integrated weighing platform.

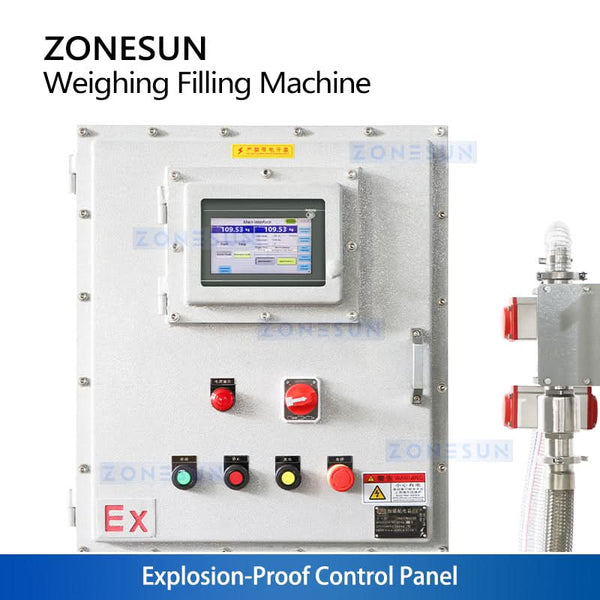

Control panel. Combines filling weight settings, speed adjustment, and machine operation controls.

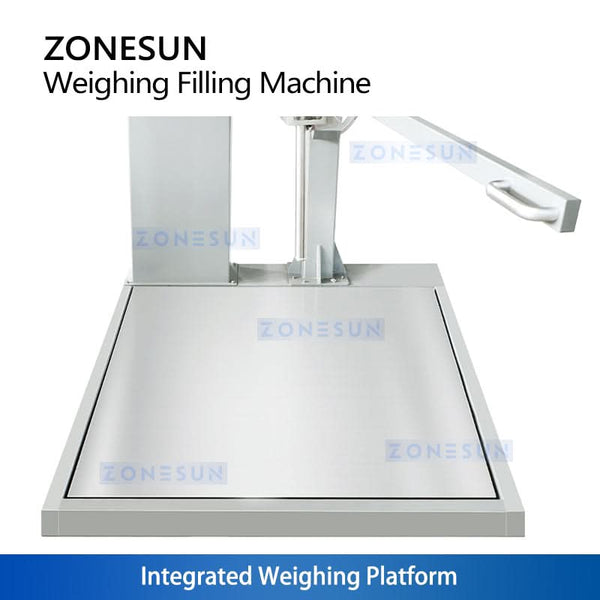

Weighing platform. Measures container weight during filling and supports automatic tare.
Movable filling arm. Helps position the filling lance for different containers.

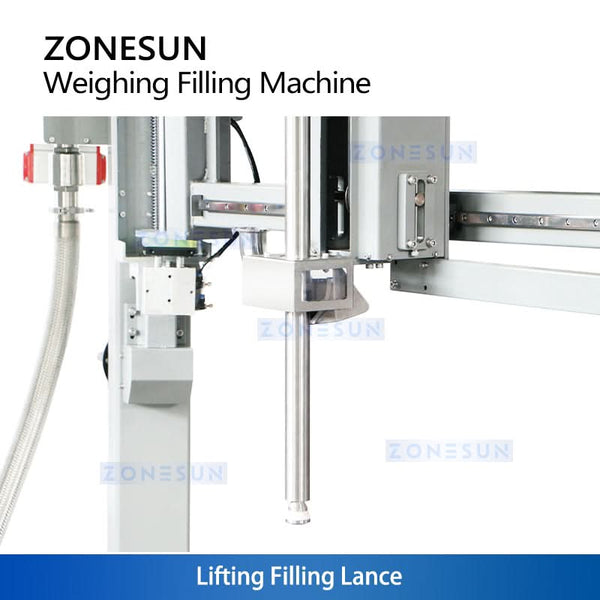

Lifting filling lance. Lowers into the container, then switches from fast to slow filling near the target weight before stopping and rising.

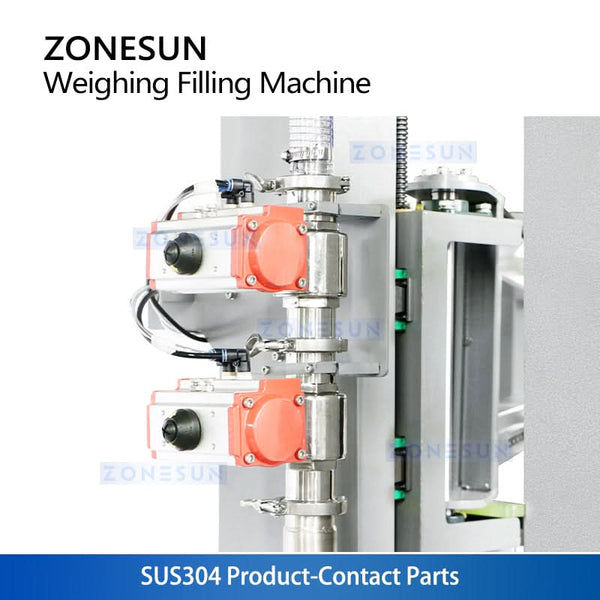

Product-contact parts. Specified as SUS304 stainless steel with PTFE seals. Confirm chemical compatibility for the liquid being filled.
Machine view. Adjustable arm with an integrated weighing platform.
Filling setup. The container sits on the weighing platform while the lance is positioned over its opening.
