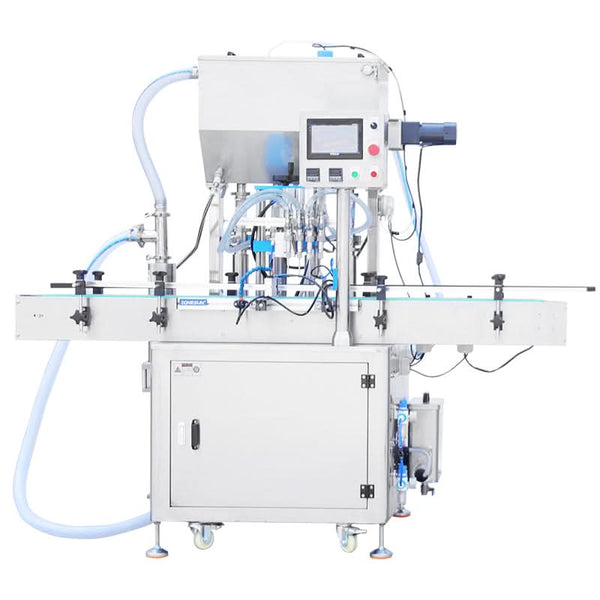

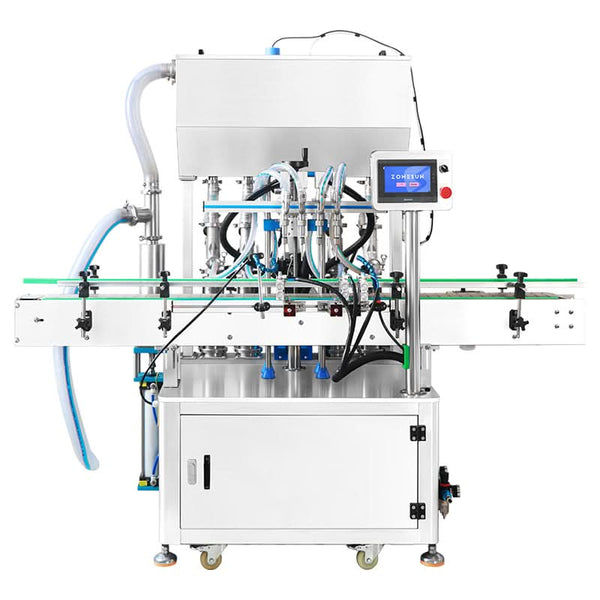

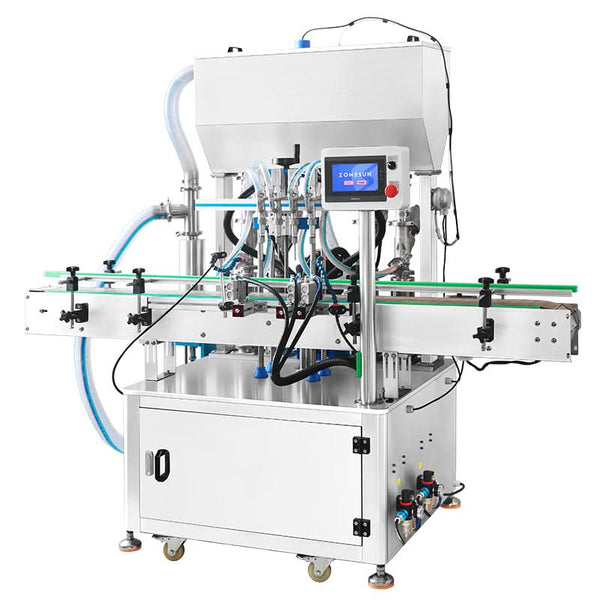

The ZONESUN ZS-YT4T-4PX is a four-head automatic servo piston filling machine designed for creams, lotions, gels, sauces and other viscous liquids or pastes. It is equipped with a feeding pump for efficient material supply and is available in multiple filling ranges to suit different production requirements.
Key Features
- Four filling nozzles for simultaneous filling of multiple containers
- Servo-driven piston filling system with ±1% filling accuracy
- Three selectable filling ranges: 10–180 mL, 30–500 mL and 100–1000 mL
- Standard and heating-and-mixing configurations available
- 7-inch touchscreen for operation and adjustment
- Filling nozzles can be customized according to production requirements
Parameters
| Machine Model | ZS-YT4T-4PX |
|---|---|
| Voltage | 110/220V, 50–60Hz |
| Power | 1 kW |
| Filling Range | 10–180 mL / 30–500 mL / 100–1000 mL |
| Working Speed | About 30–50 bottles/min |
| Filling Pump | Piston pump |
| Filling Accuracy | ±1% |
| Filling Heads | 4 (customizable) |
| Nozzle Inner Diameter | 6 mm × 4 and 8 mm × 4 |
| Control | 7-inch touchscreen |
| Storage Tank | 90 L |
| Conveyor | 2000 × 114 mm (customizable) |
| Air Supply | 0.6–0.8 MPa (air compressor required, sold separately) |
| Machine Size | 2000 × 800 × 1800 mm |
| Machine Weight | 200 kg |
| Packing Size | 2070 × 960 × 2010 mm (100–1000 mL version) |
| Packing Weight | 392 kg (100–1000 mL version) |
Note: Actual filling speed depends on the filling volume, material viscosity, container size and operating conditions. An air compressor is required and sold separately.

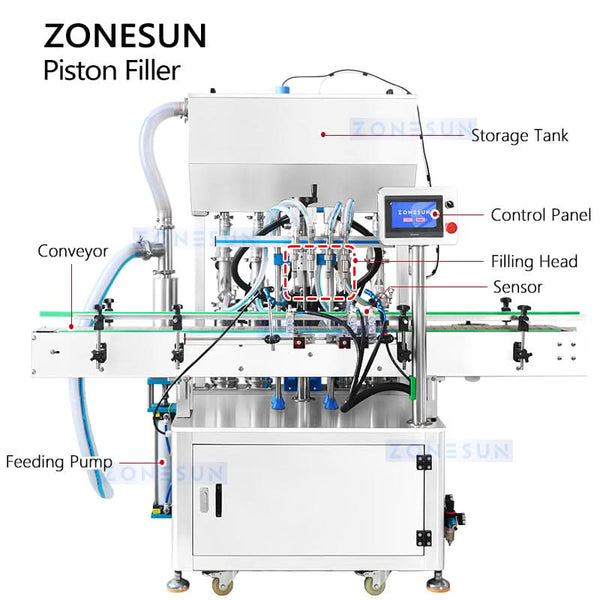

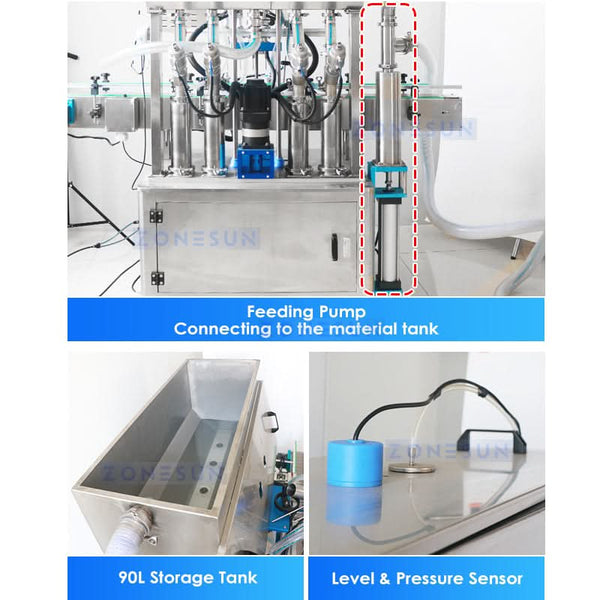

- The feeding pump connects the machine to the material tank.
- The 90 L storage tank is shown with the level and pressure sensor.

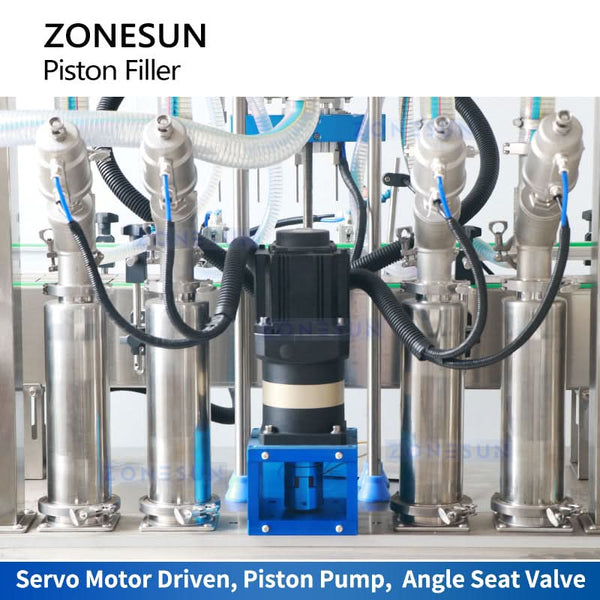

- Servo-driven piston pump system for controlled material dispensing.
- Angle seat valves regulate material flow through the filling system.

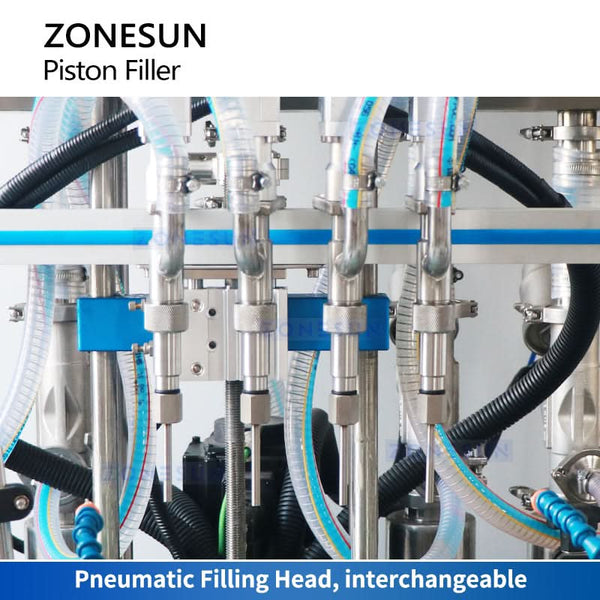

- Four pneumatic filling heads fill multiple containers simultaneously.
- Interchangeable filling heads support different production requirements.

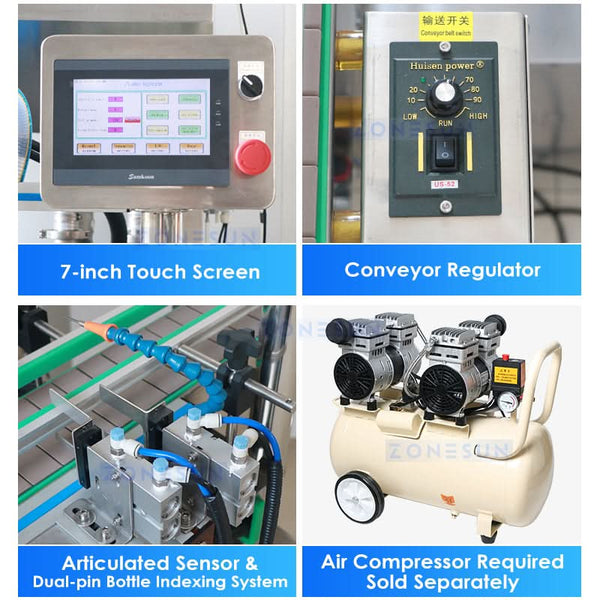

- 7-inch touchscreen and conveyor regulator for machine operation.
- Articulated sensor and dual-pin system index bottles at the filling station.
- Air compressor is required and sold separately.
