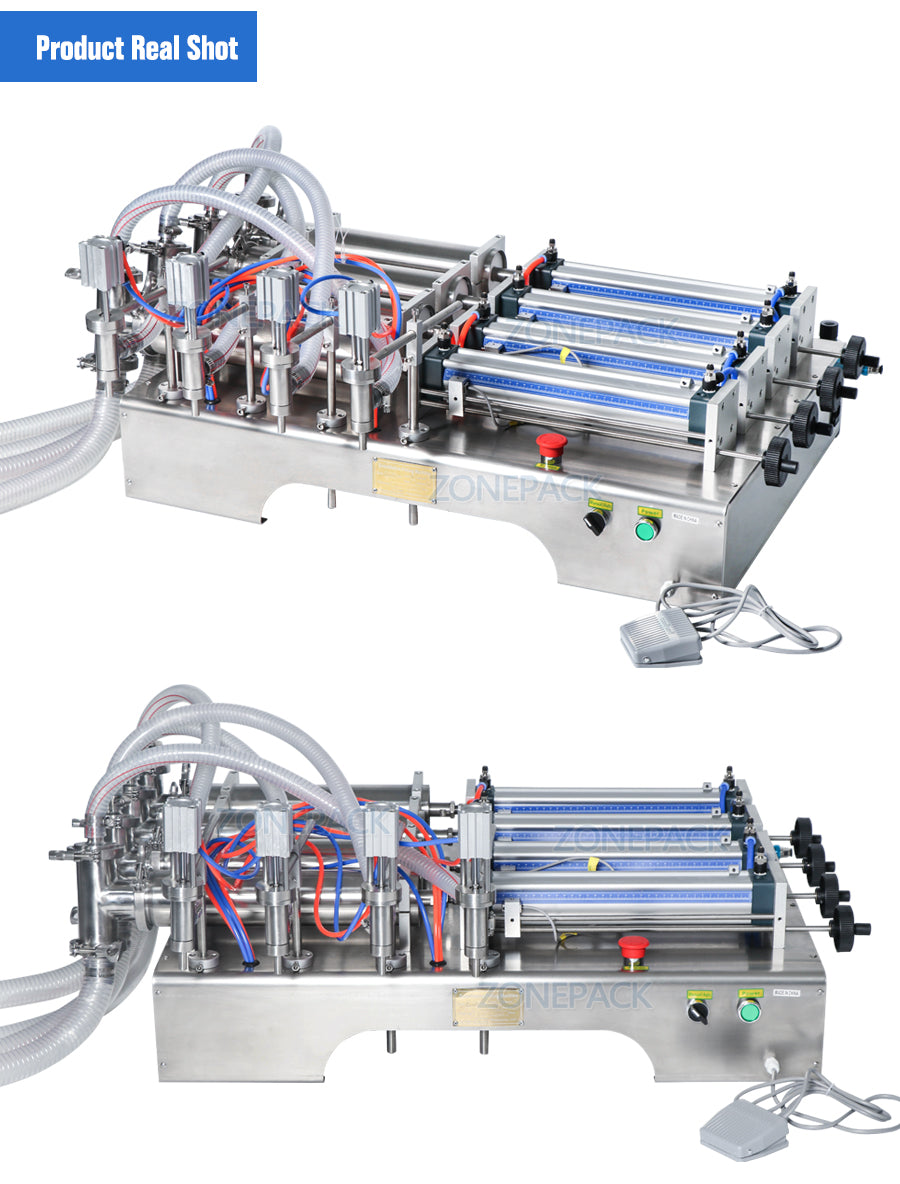

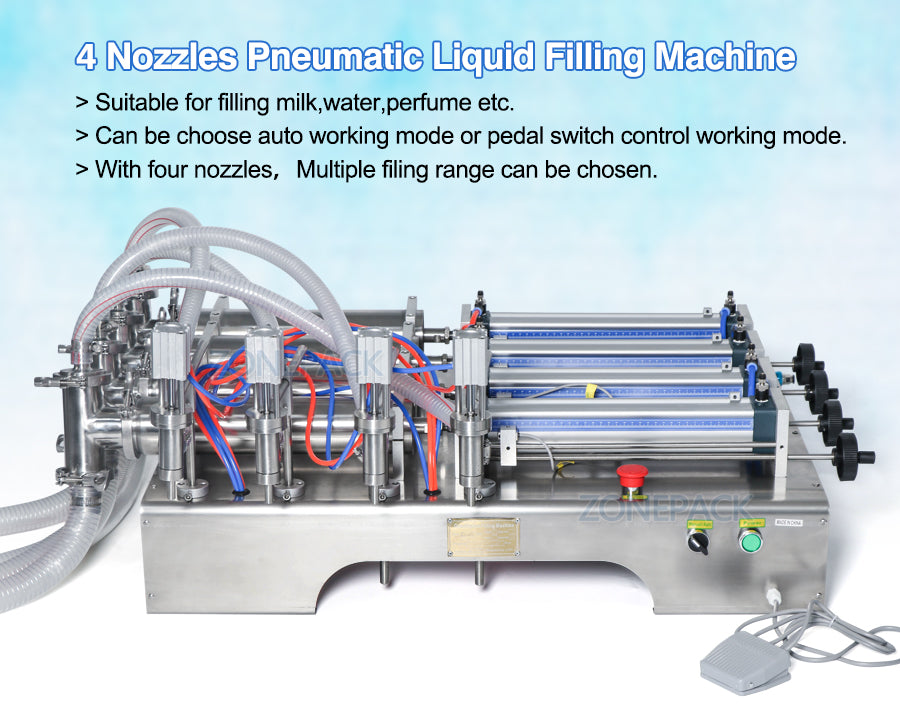

The ZONESUN 4-head pneumatic filling machine is designed for flammable and heat-sensitive liquids such as alcohol, essential oils, and perfumes. Unlike traditional models, it operates entirely on air pressure, keeping the machine body cool and safe during use. With adjustable filling ranges and speeds, it supports a wide variety of products in the food, beverage, and cosmetic industries. Its horizontal design and four nozzles ensure efficient, precise, and high-output filling for small to medium-scale production.
Parameter
|
Filling Range
|
5-100ml
|
20- 300ml
|
50-500ml
|
100-1000ml
|
500-3000ml
|
1000-5000ml
|
|
Filling Speed
|
20- 30 bottles/min
|
10-30 bottles/min
|
5-15 bottles/min
|
|||
|
Filling Accuracy
|
≥±1%
|
|||||
|
Air Supply
|
0.3-0.4Mpa
|
0.4-0.6Mpa
|
0.5-0.7Mpa
|
|||
|
Packing Size
|
1150*425*715mm
|
|||||
|
Gross Weight
|
78kg
|
|||||
|
Machine Size
|
850*625*250mm
|
|||||
|
Net Weight
|
61kg
|
|||||
