Description

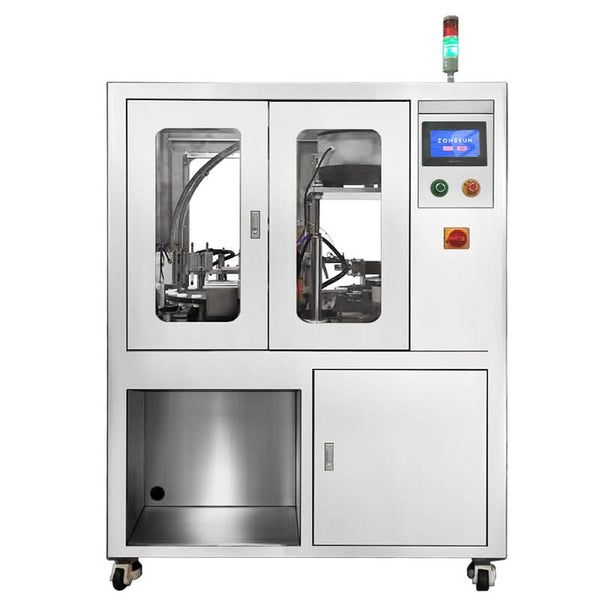

This automatic ampoule filling machine streamlines liquid packaging by integrating bottle feeding, filling, cap sorting, and sealing in one system. Its customizable rotary plate adapts to various bottle sizes, making it ideal for the cosmetics industry. Designed for precision and speed, this compact unit enhances workflow efficiency and product consistency with minimal operator intervention.
Parameter
Model ZS-AFC5
Voltage AC110/220V 50–60Hz
Power 3.0KW
Working Speed 50–60 pieces/min
Filling Range 1–5ml (Customizable for different sizes)
Filling Error About 0.05%
Working Air Pressure 0.6Mpa (User-provided air compressor)
Air Consumption 0.38m³/min
Machine Body Material 304 Stainless Steel
Machine Size (L×W×H) Approx. 1300 × 900 × 1650mm

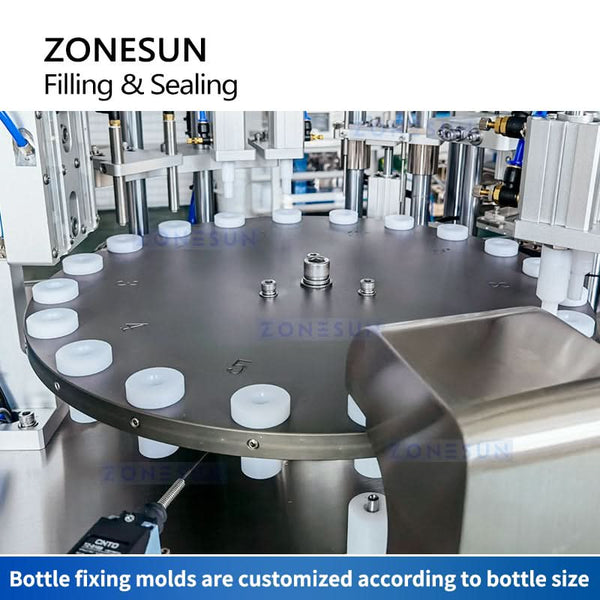

ROTARY TABLE
Bottle-positioning molds are customized to the bottle size, helping ensure accurate filling and proper cap application.

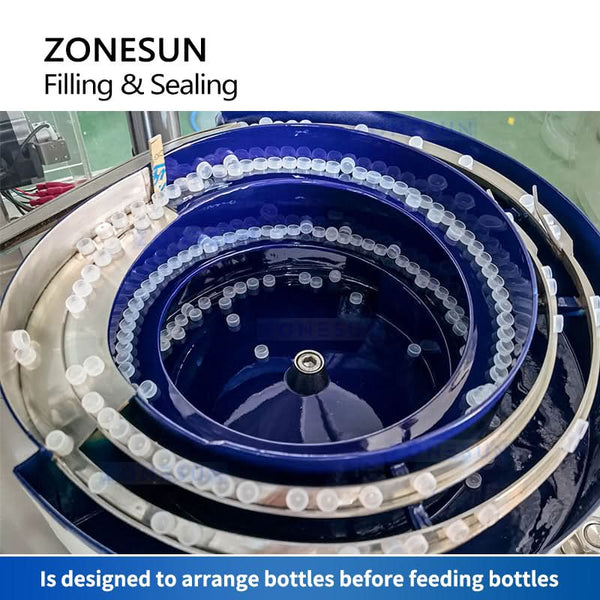

VIBRATORY BOWL
The vibratory bowl sorter is customized to the bottle size and arranges bottles before feeding, supporting an orderly production process.

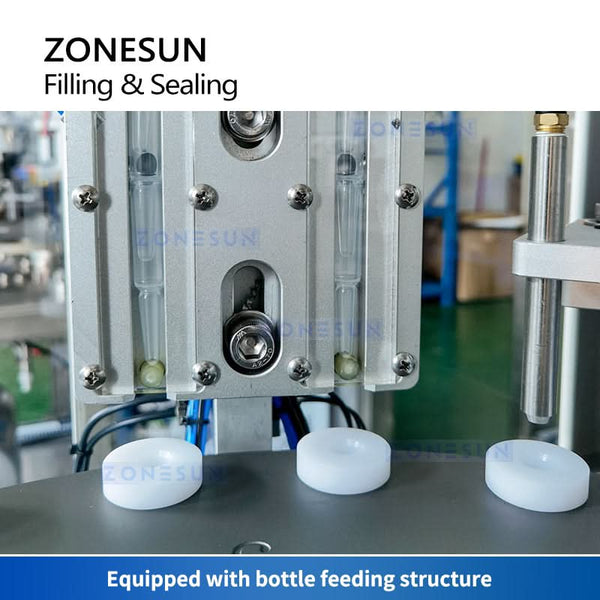

BOTTLE FEEDING
The bottle-feeding structure helps position bottles accurately before filling, reducing production errors.

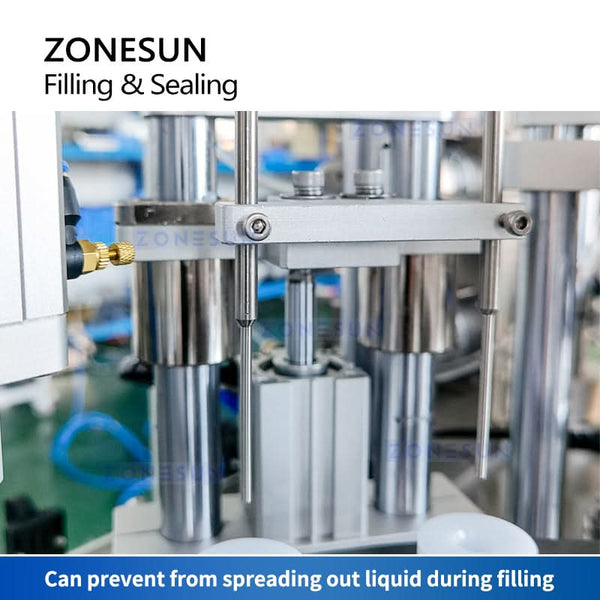

FILLING NOZZLE
The small filling nozzle helps prevent liquid from spreading during filling, supporting filling accuracy.

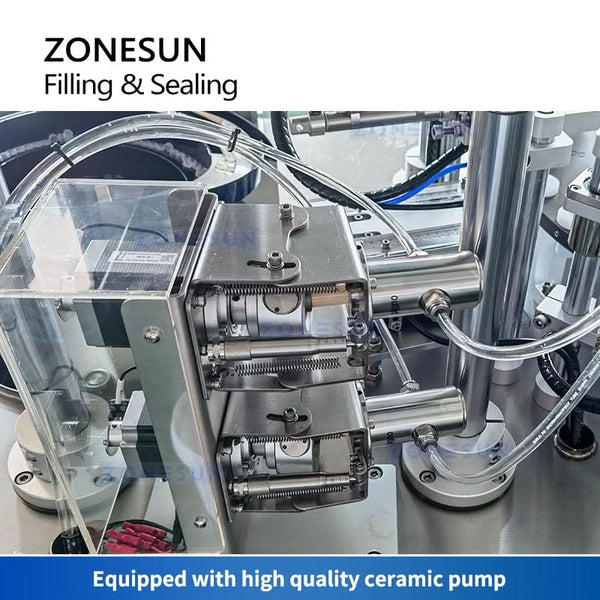

CERAMIC PUMP
The high-quality ceramic pump supports precise small-volume filling and is also widely used in laboratories.
