DESCRIPTION

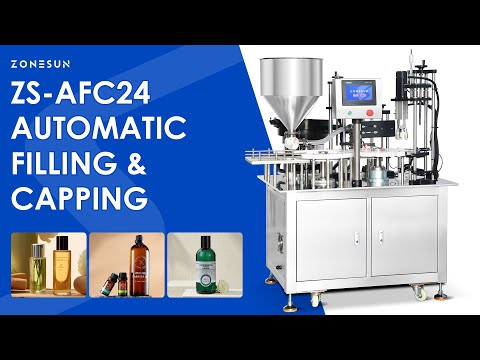

The ZONESUN ZS-AFC24 is a fully automated solution for bottle filling and capping, designed to optimize production lines across cosmetics, pharmaceuticals, and chemical industries. This versatile machine integrates bottle alignment, piston filling, servo-driven capping, and torque control into one compact system. Its intuitive interface and customizable settings make it ideal for businesses seeking speed, accuracy, and reliability in their packaging operations.
Parameter
Model ZS-AFC24
Voltage 220V/110V, 50/60Hz
Power 1.5kW
Filling Pump Piston Pump
Working Speed Approx. 20 bottles/min (varies by bottle size & material)
Filling Range 20–100ml (Customizable)
Filling Error ±1%
Suitable Bottle Height 35–150mm (Customizable)
Suitable Bottle Diameter 14–42mm (Customizable)
Capping Mechanism Servo motor driven
Suitable Bottle Cap Size Customizable
Hopper Capacity 30L
Air Pressure 0.6–0.8 MPa
Machine Size 1453 × 1230 × 1551 mm (L × W × H)
Machine Weight Approx. 300 kg
TRANSITION STATION
The bottle unscrambler automatically aligns and sorts bottles. Twelve loading positions on the star wheel support accurate bottle handling and smooth transfer between stations.
FILLING STATION
The spacious 30 L hopper is designed to accommodate large liquid volumes. A piston pump accurately dispenses the required filling volume, supporting precise and consistent filling.
CAP-FEEDING STATION
A vibratory bowl supplies caps to the station, while a positioning tool accurately places each cap on the bottle.
CAPPING STATION
A servo-driven gripper provides precise cap tightening with adjustable torque, helping secure caps without compromising bottle integrity.
