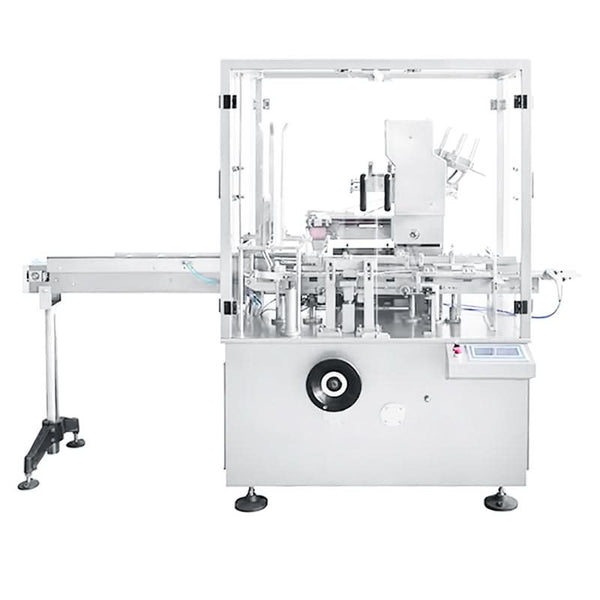

The ZS-120BP is an intelligent high-speed cartoning system designed for the automated packing of round and square bottles into cartons. Equipped with a synchronized bottle feeding and sorting mechanism, this machine streamlines the entire packaging cycle—from manual leaflet folding and inspection to carton forming, material loading, batch coding, and final sealing. It supports both tongue folding and hot melt adhesive sealing for versatile packaging options. With built-in detection and rejection of incomplete packs, the ZS-120BP ensures accuracy and quality in every output, making it ideal for pharmaceutical, cosmetic, and food industries seeking reliable and consistent automation.
Parameter
Boxing Speed 50–70 boxes per minute
Carton Paper Quality 250–350 g/m² (varies by carton size)
Carton Size (L × W × H) 70–150mm × 20–85mm × 13–55mm
Operating Pressure ≥0.6 MPa
Power Supply 380V, 50Hz
Main Motor Power 1.5 kW
Overall Dimensions (L × W × H) 2150mm × 1140mm × 1800mm
Total Weight Approx. 1200 kg

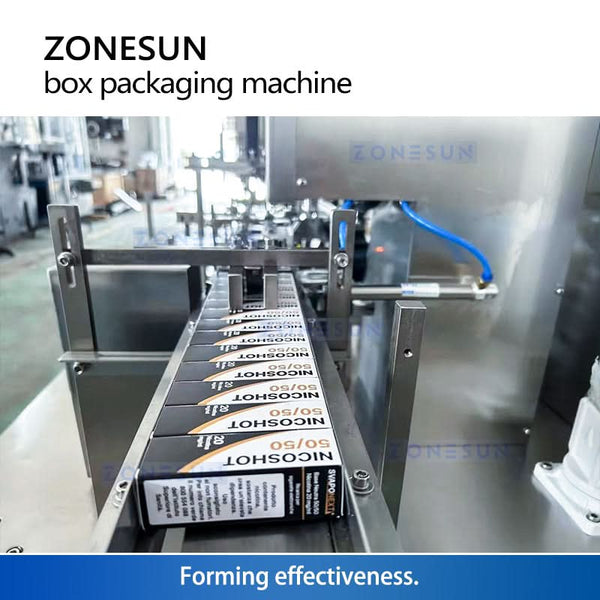

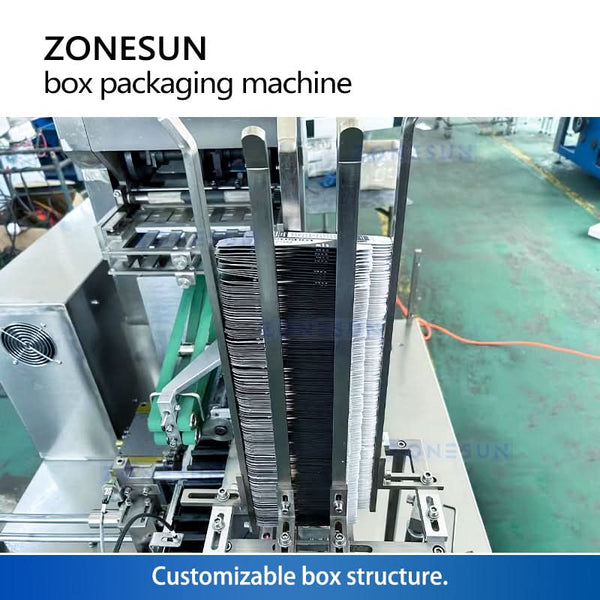

CARTON FEEDING AND FORMING
The machine supplies flat cartons and opens them for the loading process.

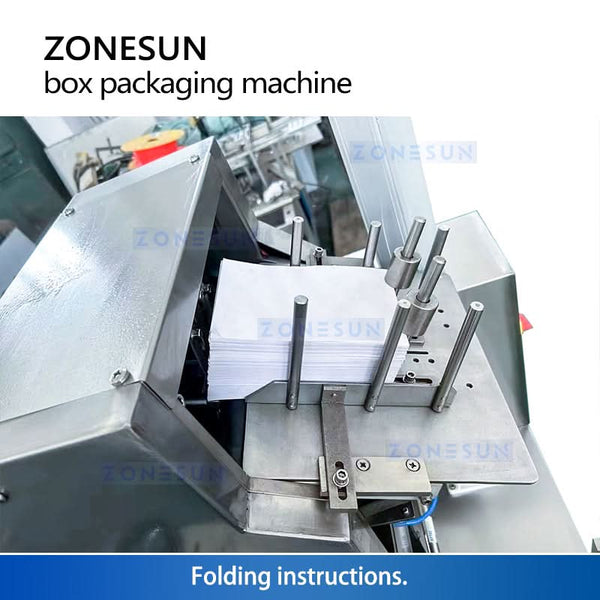

MANUAL PRODUCT LOADING
The loading area allows operators to place bottles and prepared leaflets into the formed cartons.
SYNCHRONIZED BOTTLE FEEDING
The feeding mechanism sorts and transfers round or square bottles toward the loading position.
CARTON CLOSING
The closing section supports tongue folding or hot-melt adhesive sealing according to the selected configuration.
INSPECTION AND REJECTION
The detection system identifies incomplete packs and removes them from the normal output flow.
