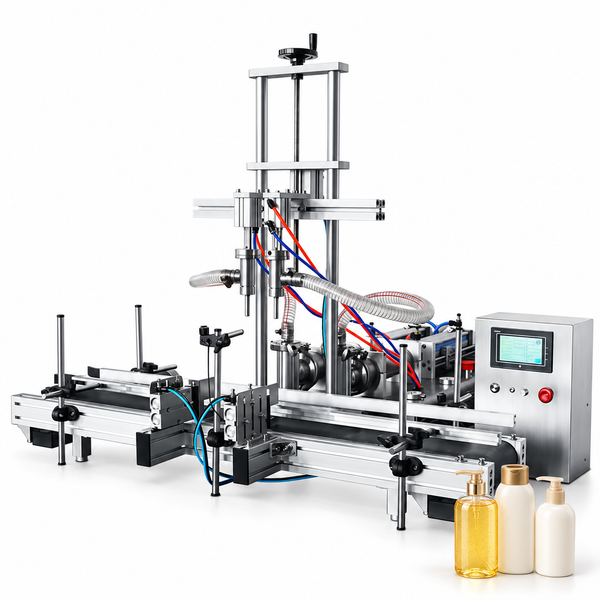

The ZONESUN ZS-DTYT2 is a modular pneumatic filling machine designed for both thin and thick liquids such as shampoo, honey, engine oil, and jam. Equipped with precision piston pumps and a conveyor belt, it ensures accurate and efficient filling for bottles of various sizes. Customizable to meet specific production needs, this system is ideal for small to medium-scale packaging operations.
Specification
Machine Model ZS-DTYT2
Voltage 220V/110V, 50–60Hz
Power 130W
Filling Range 10–100 / 10–200 / 30–300 / 50–500 / 100–1000ml
Filling Speed Approx. 20 bottles/min (based on 450ml water)
Applicable Bottle Diameter Approx. 53–100mm
Filling Accuracy ≤±1%
Conveyor Belt Size 1020×140mm (L×W)
Machine Size 1020×1160×870mm (L×W×H)
