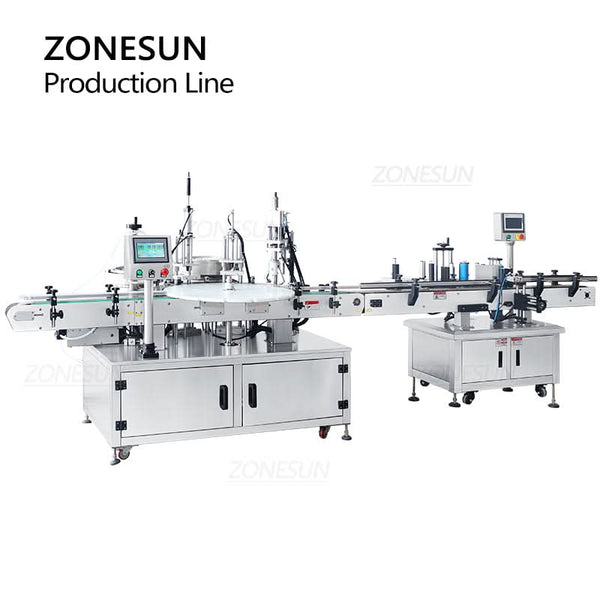

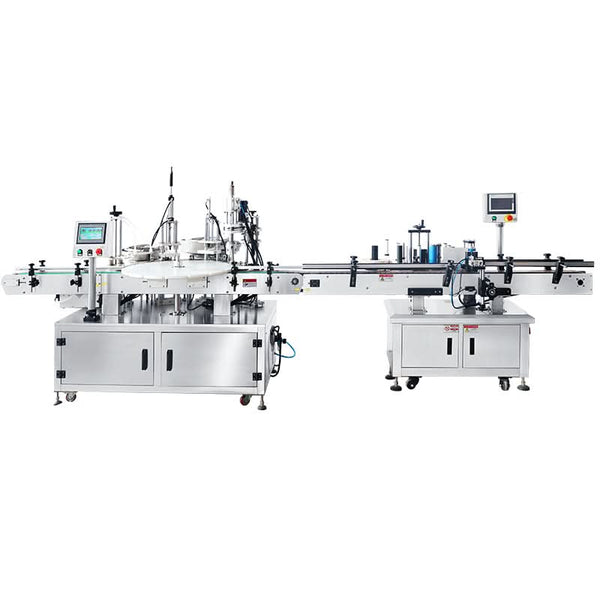

The ZONESUN ZS-FAL180A10 Automatic Production Line is an all-in-one system engineered for efficient bottling of small containers, such as essential oil and eye drop bottles. It streamlines key operations including bottle sorting, liquid filling, plug and cap feeding, capping, and sticker labeling. Powered by a precise peristaltic pump and designed for flexible customization, this compact line handles varied container sizes simultaneously, making it ideal for pharmaceutical, cosmetic, and personal care production.
Parameter Specification
Machine Model ZS-AFC13 Filling and Capping Machine
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Peristaltic Pump
Working Speed Approx. 15–20 bottles/min (depends on bottle & liquid)
Max Flow Rate 2L/min (per nozzle, based on water)
Suitable Bottle Size Customizable
Bottle Cap Diameter Customizable
Air Pressure 0.6–0.8MPa
Package Size Approx. 1800 × 1070 × 1760mm
Gross Weight Approx. 445kg
Model ZS-TB260R Labeling Machine
Power Supply AC 220V, 50Hz/60Hz, 1000W
Labeling Capacity 25–50 bottles/min (depending on bottle size)
Labeling Accuracy ±1.0mm
Suitable Bottle Diameter Φ12–100mm
Label Size (L) 20–300mm × (H) 15–150mm
Roll Inside Diameter Φ76mm
Roll Outside Diameter Φ350mm
Conveyor Size 112 × 2000mm (W × L)
Machine Dimensions Approx. 2000 × 820 × 1380mm
Package Dimensions Approx. 2100 × 890 × 1520mm
Net/Gross Weight Approx. 180kg / 250kg
PLC CONTROL PANEL
Working parameters can be set through the PLC panel, and the interface language can be customised to meet customer requirements.

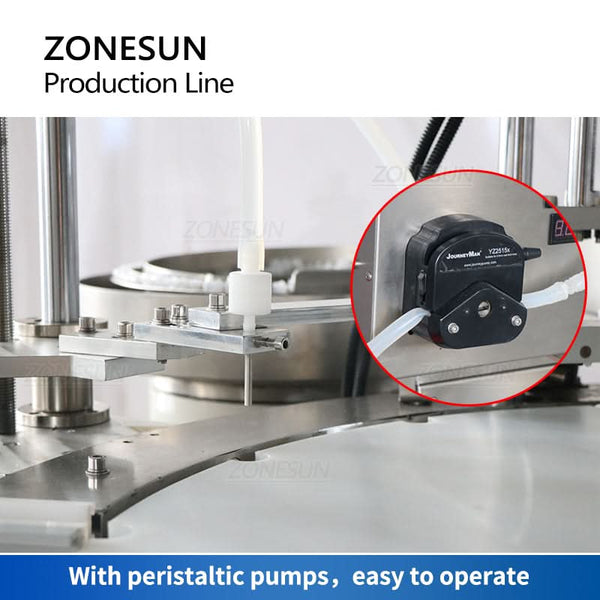

PERISTALTIC PUMP FILLING
With peristaltic pumps, the liquid flows only through the tubing. The two filling heads can be controlled separately.

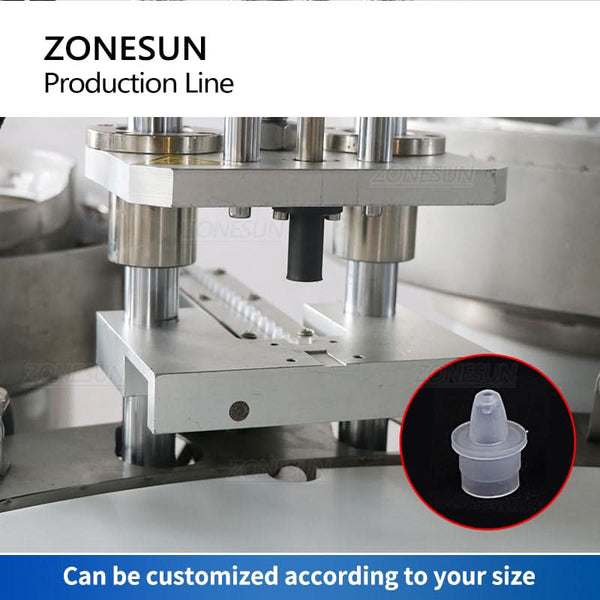

INNER-PLUG FEEDER
The inner-plug feeder supplies plugs automatically to reduce manual labour. The guard-rail size can be customised.

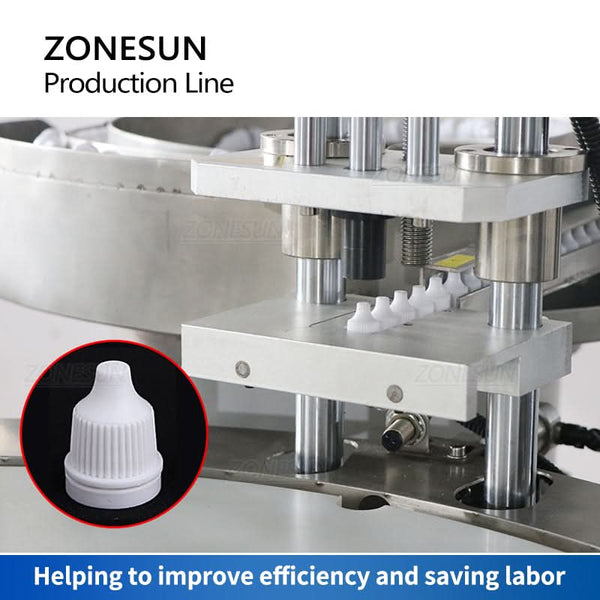

OVERCAP FEEDER
The overcap feeder arranges and supplies caps to improve efficiency and can be customised to the cap size.
CAPPING HEAD
The capping head handles screw-type caps such as dropper and glue-bottle caps. It is driven by a pneumatic cylinder and can be customised as required.
LABELING ASSEMBLY
The labeling assembly supports single-sided, double-sided, and full-wrap labeling on round bottles while helping prevent bubbles beneath the label.
