Item Specification
Model ZS-GY2C Filling Machine
Voltage Supply 220/110V 50/60Hz
Power 130W
Filling Accuracy ≤ ± 0.5%
Filling Speed 10–20 bottles/min
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml
Conveyor Size 200 × 10 cm (L × W)
Filling Nozzle Size Φ10 mm
Equipped Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Air Consumption ≥ 0.1 m³/min
Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size Outer Diameter 8 mm
Machine Size 1200 × 610 × 950 mm
Package Size 1150 × 640 × 1120 mm
Net Weight / Gross Weight 69 kg / 100 kg
Model ZS-TB500A Labeling Machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed 20–60 bottles/min
Suitable Labeling Size 15–140 mm (Width) × 25–300 mm (Length)
Roll Inner Diameter Φ75 mm
Roll Outer Diameter Φ250 mm
Suitable Bottle Diameter Approx. 30–100 mm
Conveyor Size Approx. 1310 × 100 mm
Machine Size 1240 × 680 × 890 mm
Package Size 1390 × 690 × 910 mm

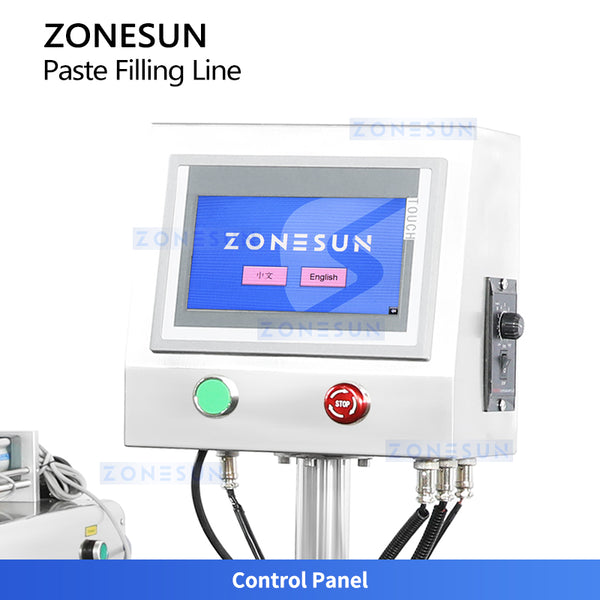

TOUCHSCREEN CONTROL PANEL
The touchscreen provides visual parameter setting and convenient adjustment of working data. Interface languages can be customized to user requirements.

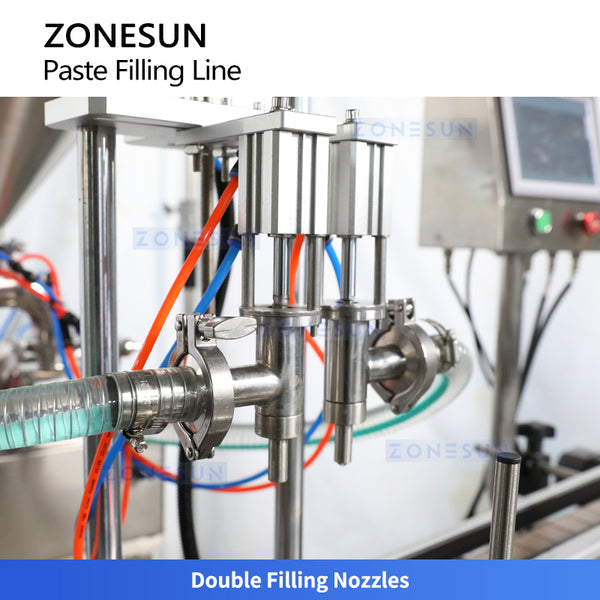

SYNCHRONIZED FILLING NOZZLES
Two synchronized nozzles dispense paste products for efficient, accurate filling. The anti-drip design and electric eyes support precise container detection.
AIR CYLINDER
The air cylinder provides stable pneumatic power for smooth nozzle movement and consistent filling.

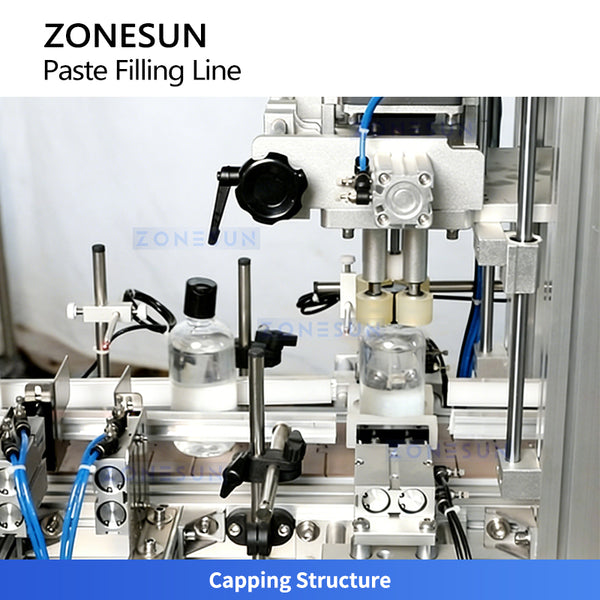

CAPPING STRUCTURE
The capping structure automatically presses and tightens different bottle caps for stable operation.

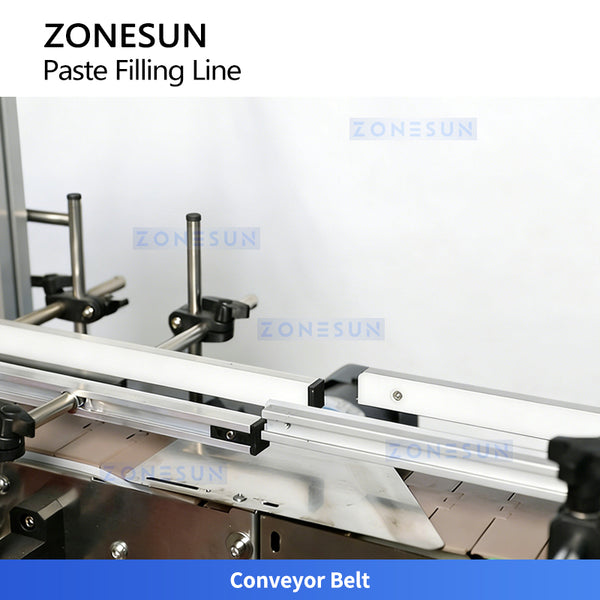

CONVEYOR BELT
The conveyor automatically transfers bottles along the production line, reducing manual handling.

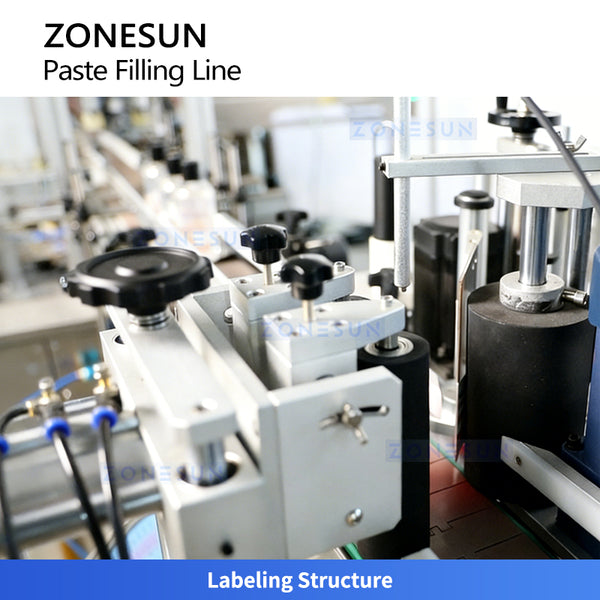

THREE-WHEEL LABELING STRUCTURE
Three labeling wheels rotate bottles during labeling to support a smooth, bubble-free result.
