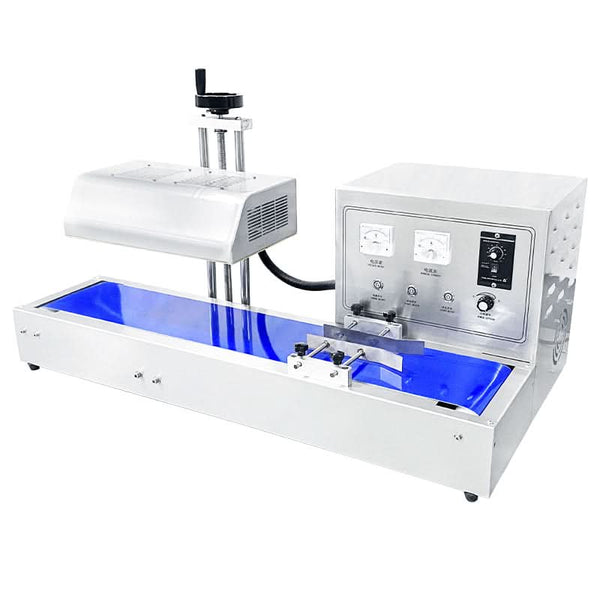

The ZS-FK3000 Continuous Induction Sealer is a high-performance solution engineered to deliver fast, reliable, and uniform sealing for various bottle types and container materials. With its advanced induction sealing technology, this machine ensures airtight and tamper-evident seals that enhance product integrity and shelf life.
Its streamlined conveyor system supports consistent throughput, making it ideal for medium to large-scale production environments. The intuitive control panel offers precise adjustment for sealing speed and power, allowing operators to fine-tune settings based on different application needs. Whether used in food, beverage, pharmaceutical, or chemical packaging, the ZS-FK3000 boosts efficiency, minimizes downtime, and maintains exceptional sealing standards across every shift.
Parameter
Machine Model ZS-FK3000
Input Power AC220V, 50/60Hz
Input Current <10A
Output Current Static: <2A / Dynamic: <10A
Operating Frequency 75–85 kHz
Output Power 500–3000W
Sealing Diameter 20–95 mm
Bottle Height 20–280 mm
Sealing Speed 0–20 m/min
Conveyor Load Capacity 4.5 kg
Machine Size Approx. 1040 × 570 × 590 mm
Package Size Approx. 1150 × 680 × 780 mm
Net Weight / Gross Weight Approx. 31 kg / 60 kg

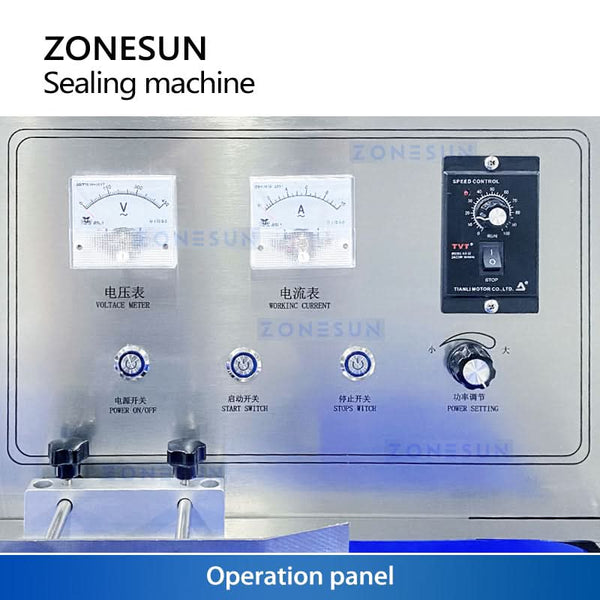

OPERATION PANEL
Displays voltage and current, and allows the conveyor speed to be adjusted.

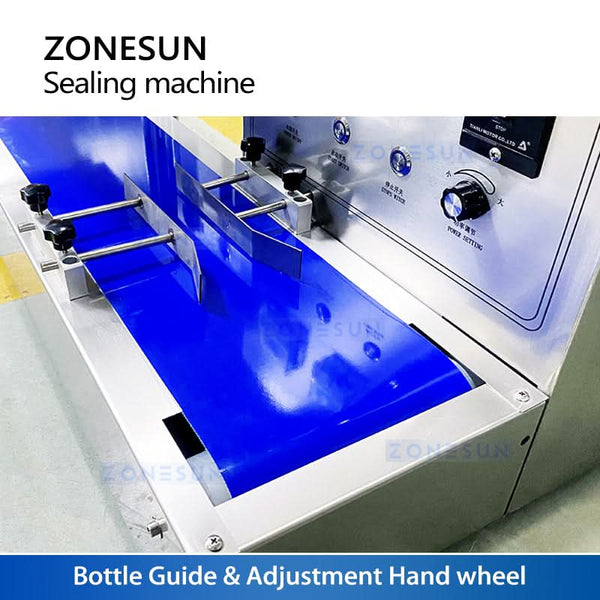

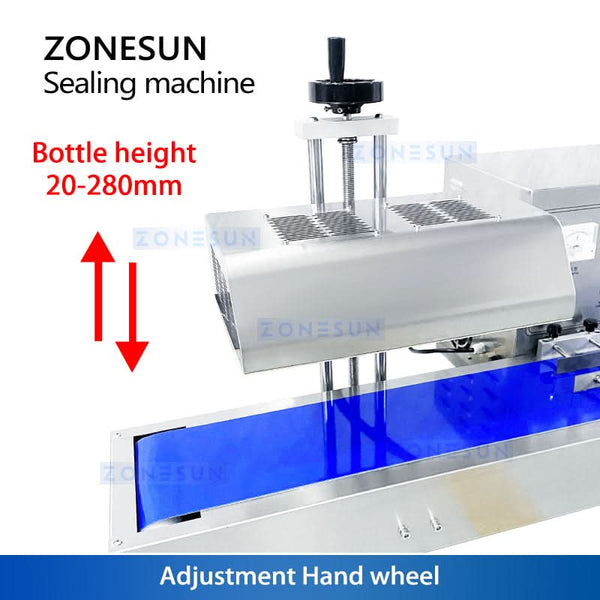

BOTTLE GUIDE DEVICE & ADJUSTING HANDWHEEL
The working width and height can be adjusted to suit different bottles.

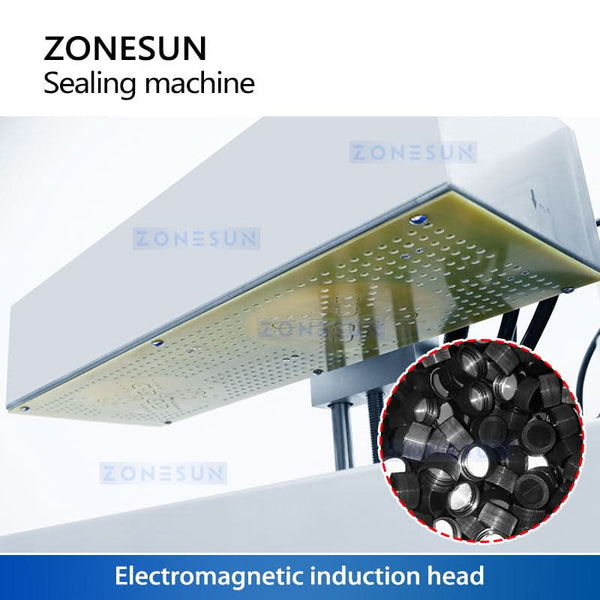

ELECTROMAGNETIC INDUCTION HEAD
Uses electromagnetic induction heating for continuous sealing.

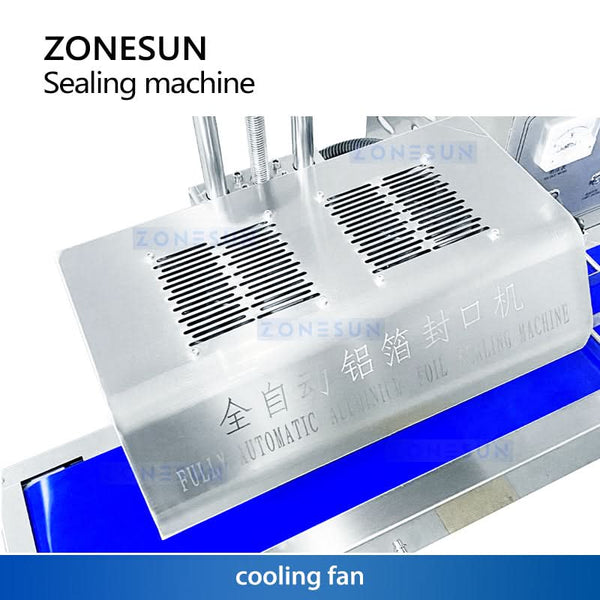

COOLING FAN
Forced-air cooling helps improve sealing stability.
