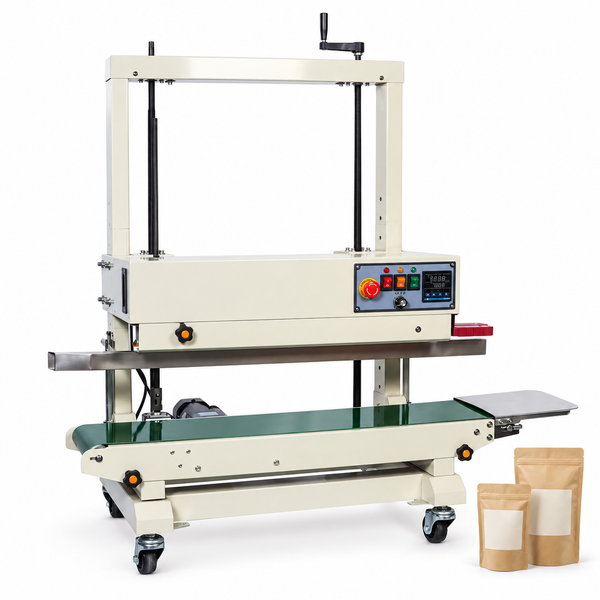

The ZONESUN ZS-FR1100 is a semi-automatic vertical band sealing machine designed for sealing large bags and pouches with heat precision. Featuring adjustable working height and a robust conveyor system, it accommodates various packaging types—plastic, paper, foil, and shrinkable film—with a load capacity of up to 15kg. Optional font modules allow inline printing of batch numbers or production dates, streamlining your packaging workflow and maximizing efficiency for industrial food and product labeling.
Parameter
Machine Model ZS-FR1100
Voltage 220V/50Hz & 110V/60Hz
Power 1235W
Sealing Speed 0–12 m/min
Sealing Width 6–12 mm
Sealing Height 80–600 mm
Single-layer Film Thickness ≤ 0.08 mm
Temperature Range 0–300°C
Tray Size (L × W) 250 mm × 240 mm
Conveyor Size (L × W) 980 mm × 200 mm
Conveyor Load Capacity ≤ 15 kg
Machine Dimensions (L × W × H) 1243 mm × 580 mm × 1228 mm
Machine Weight 80 kg
Package Size 1200 mm × 695 mm × 1250 mm
Package Weight 107.5 kg
The control panel allows the sealing temperature to be adjusted from 0–300°C to suit the material. Conveyor speed can also be adjusted using the black control knob. Turning the rotary handle adjusts the sealing height to suit products of different heights. The extended heating block distributes heat evenly for a firm, consistent seal. The cooling block dissipates heat quickly to support a clean sealing result. The conveyor transports sealed products steadily and smoothly, with a maximum load capacity of 15 kg. Two roll types are supplied: a marking roll and an embossing roll. The marking roll can print batch or production dates on bags.CONTROL PANEL
ROTARY HEIGHT ADJUSTMENT
HEATING AND COOLING BLOCKS
CONVEYOR BELT
MARKING AND EMBOSSING ROLLS
