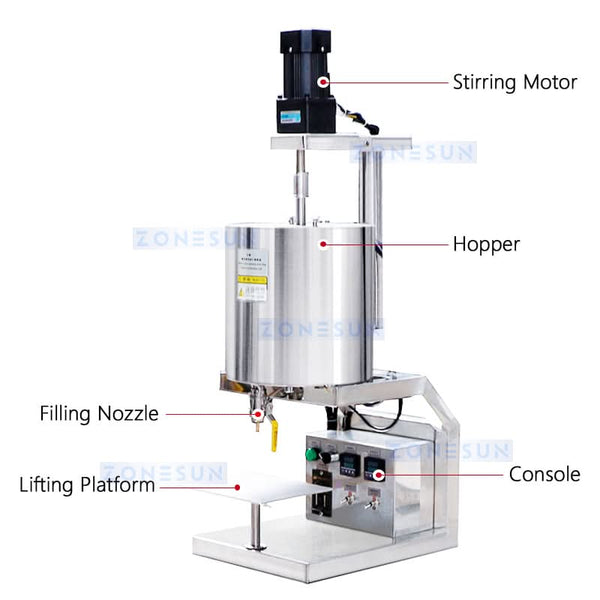

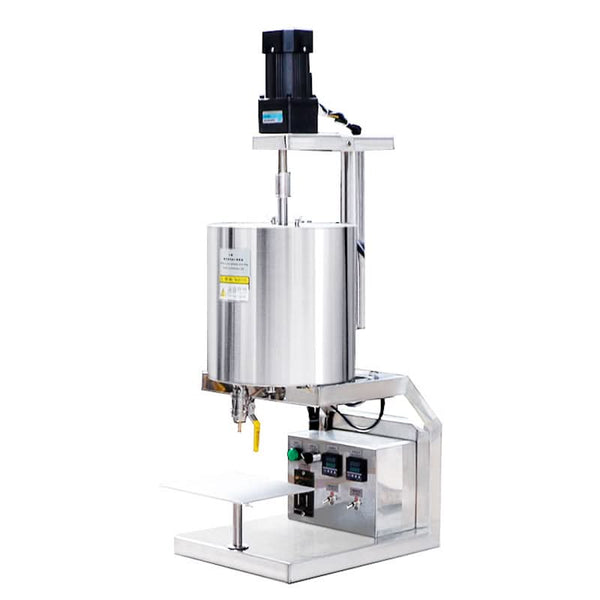

The ZONESUN ZS-GTK20 is a manual filling machine for small-batch production of lipsticks, lip balms and eyebrow pencils. Its double-layer hopper supports heating with water or oil as the heating medium, while the integrated mixer provides adjustable stirring from 0 to 94 rpm. The ball-valve outlet is manually controlled during filling, and the adjustable platform accommodates molds of different sizes.
Technical Parameters
The specifications below apply to the 20 L version.
| Specification | Details |
|---|---|
| Model | ZS-GTK20 |
| Voltage | 110V or 220V, 50/60Hz |
| Production Capacity | 150 molds/hour (12 pieces per mold) |
| Hopper Capacity | 20 L |
| Hopper Size | Ø300 × H300 mm |
| Maximum Load | ≤15 kg per batch |
| Maximum Temperature | 120°C |
| Mixing Speed | 0–94 rpm |
| Material | SUS304 stainless steel |
| Packing Size | 120 × 50 × 40 cm |
| Gross Weight | 40 kg |

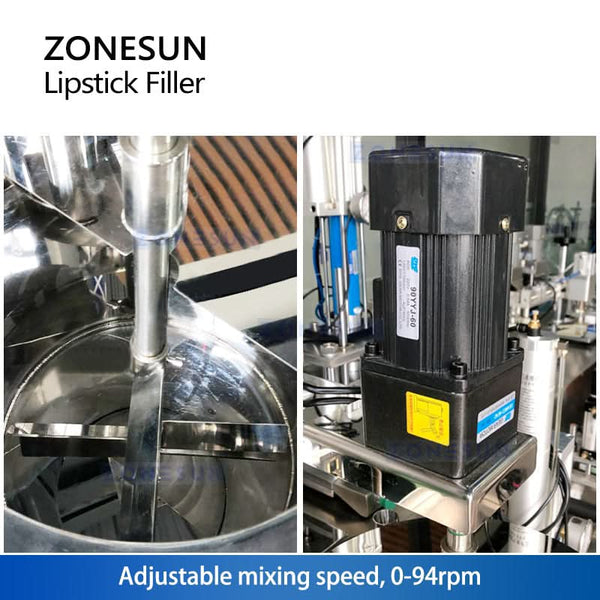

Adjustable Mixing and Heating

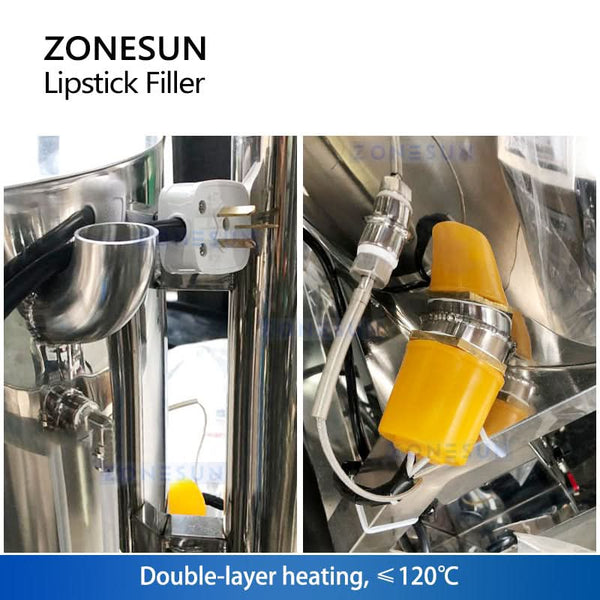

The mixing speed can be adjusted from 0 to 94 rpm. The double-layer hopper supports temperatures up to 120°C and uses water or oil as the heating medium.

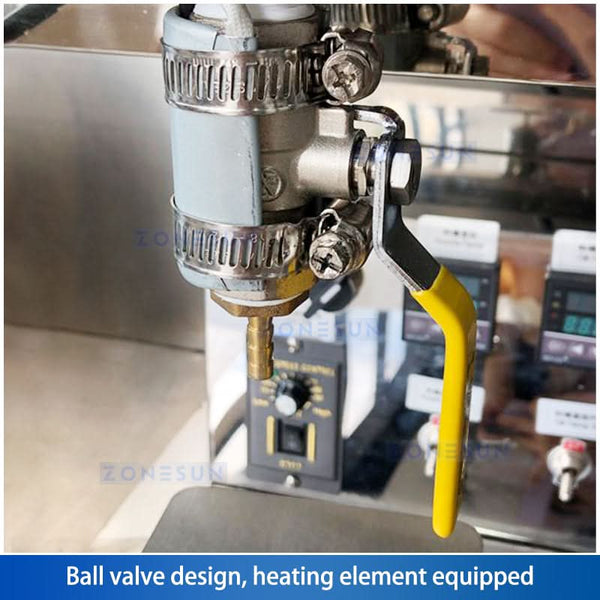

Manual Ball-Valve Filling
The ball-valve outlet is manually controlled during filling. Its built-in heating element helps maintain the material temperature at the outlet.

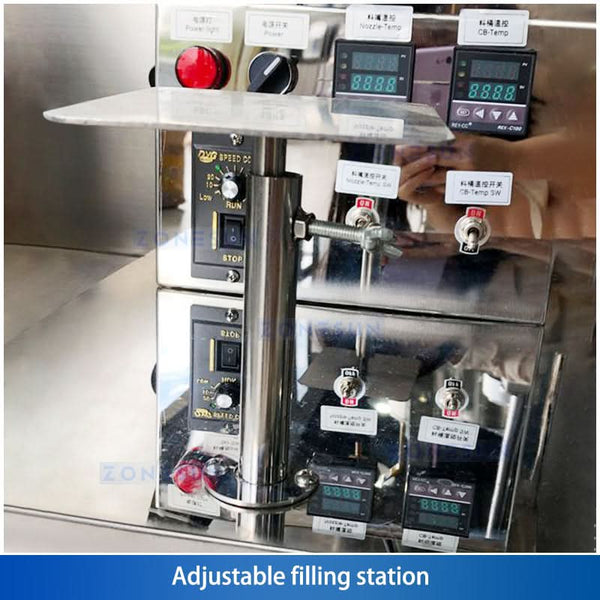

Adjustable Platform
The platform height can be adjusted to accommodate molds of different sizes.
