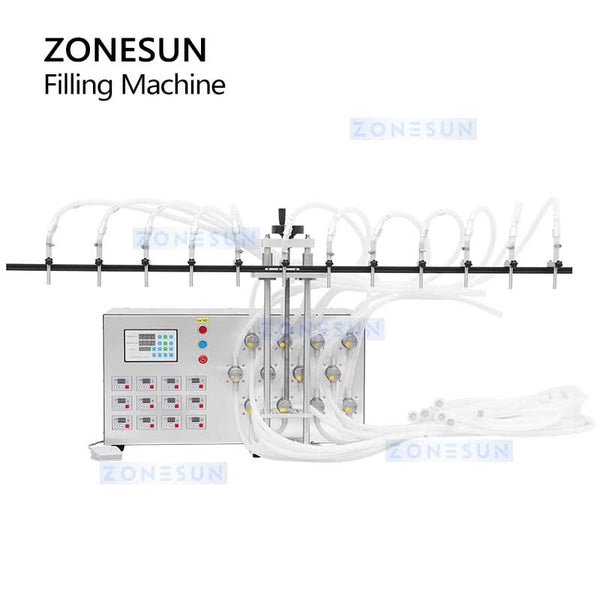

The ZS-MPYT12P tabletop filling machine features 12 high-precision magnetic pump heads, ideal for efficiently dispensing liquids like beverages, oils, and more. Its adjustable filling nozzles accommodate various container sizes, while the semi-automatic design ensures ease of use and minimal labor. Built for small to medium-scale production, this machine delivers consistent performance and reliable output. Whether you're bottling juice or essential oils, ZONESUN provides a smart solution for your liquid packaging needs.
Parameter Specification
Machine Model ZS-MPYT12P
Voltage 220V / 110V, 50–60Hz
Power 850W
Filling Pump Type 316 Stainless Steel Magnetic Pump
Recommended Filling Range ≤2000 ml (≈10 seconds)
Max Flow Rate 12 L/min × 12 (based on water)
Suitable Liquid Temperature <60°C
Filling Accuracy ≤ ±0.5%
Machine Dimensions Approx. 1650 × 700 × 770 mm (L×W×H)
Package Dimensions Approx. 1020 × 840 × 800 mm (L×W×H)
Net Weight / Gross Weight Approx. 67 kg / 100 kg

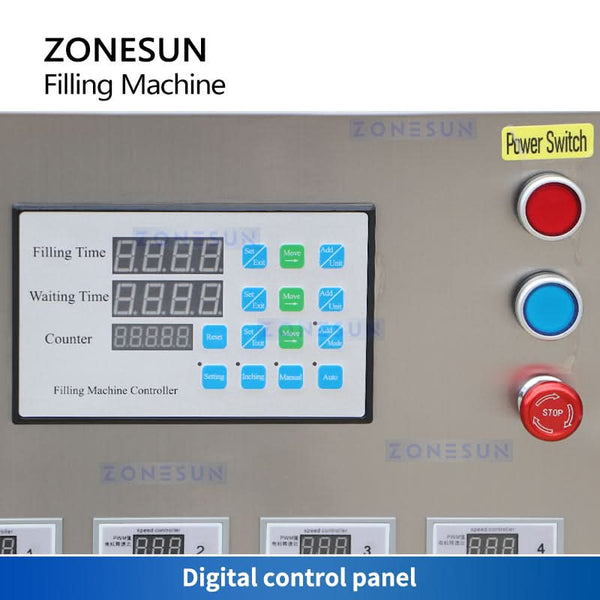

CONTROL PANEL
The control panel makes it easy to set parameters such as filling time and waiting time, with a visual counting function.

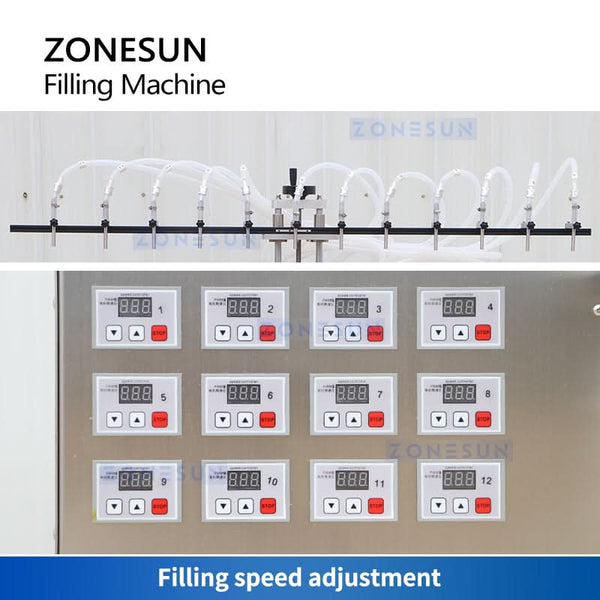

FILLING SPEED ADJUSTMENT
The filling speed of the 12 nozzles can be adjusted independently for liquids with different characteristics, and each bottle's filling volume can be adjusted individually.

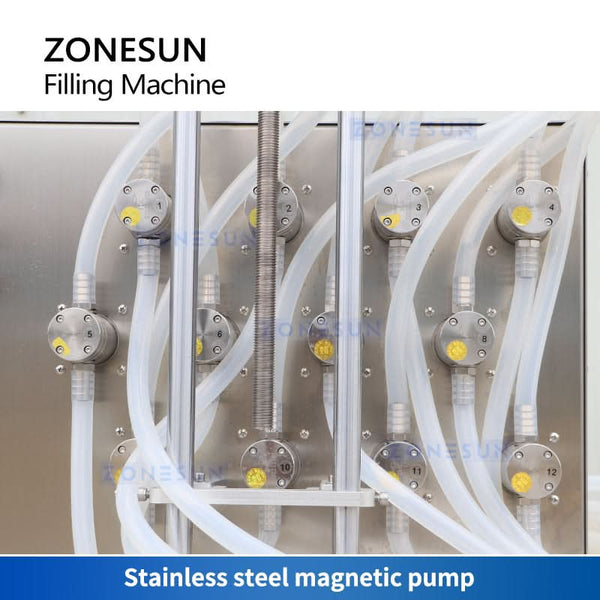

MAGNETIC PUMP
The stainless steel magnetic pump supports accurate, corrosion-resistant filling. The pump uses rolling components, requires minimal maintenance, and improves operating efficiency.
PEDAL SWITCH
The machine supports both automatic and manual operating modes. In manual mode, the pedal switch can be used to start filling.

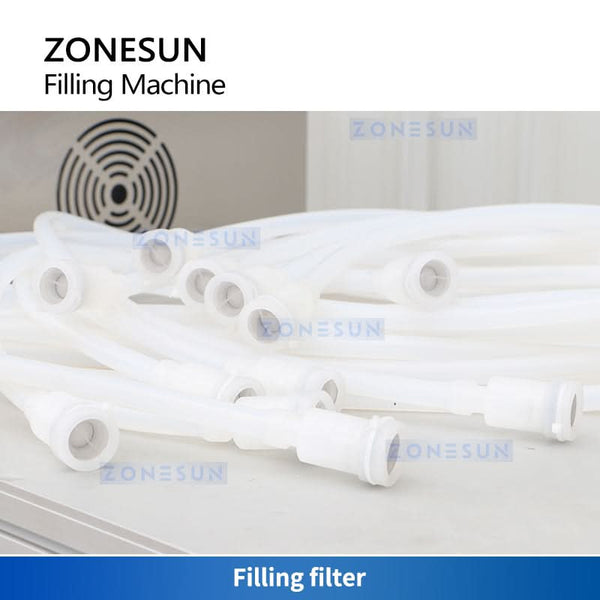

FILLING FILTER
Each inlet pipe includes a filter to remove certain impurities.
