DESCRIPTION

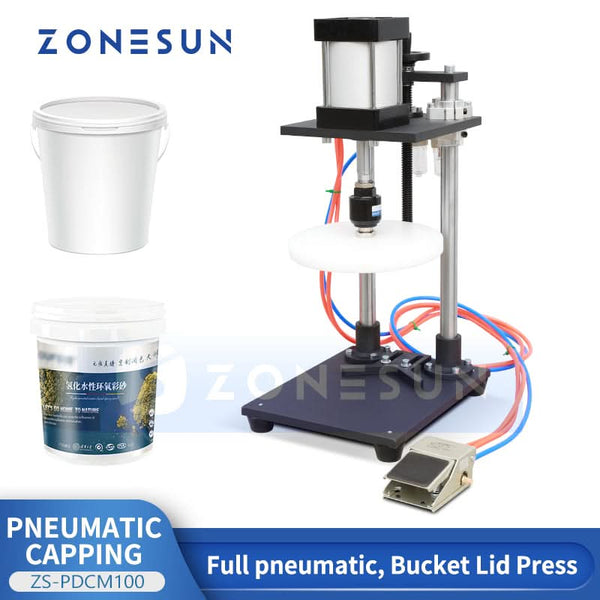

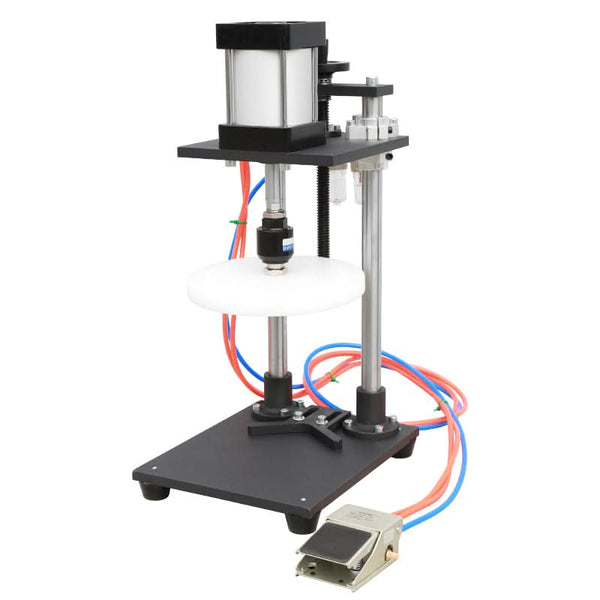

Introducing our versatile pneumatic capping machine, designed for sealing plastic buckets, paint cans and food containers from 1 to 5 liters. Featuring a customizable capping head and adjustable height and support, the machine accommodates buckets of various sizes. Its user-friendly operation ensures fast and efficient sealing, while its compact design saves valuable floor space.
PARAMETER
Model ZS-PDCM100
Working Air Pressure 0.5–0.8 MPa
Speed 10-15BPM

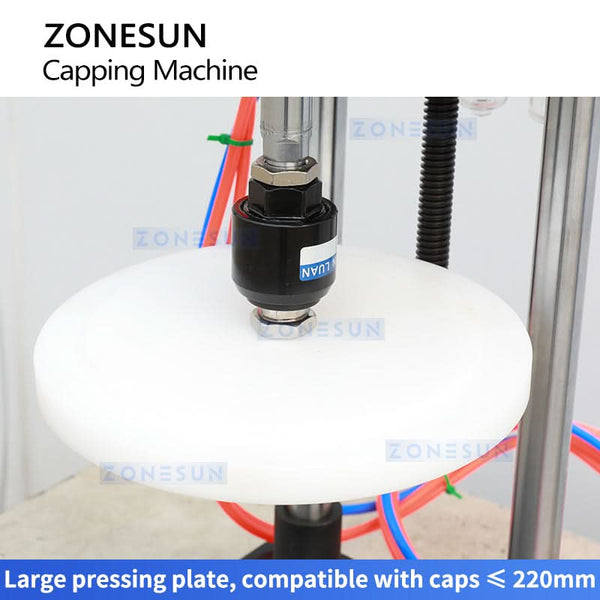

For Cap Diameter ≤220mm(Customized pressure plates are available)

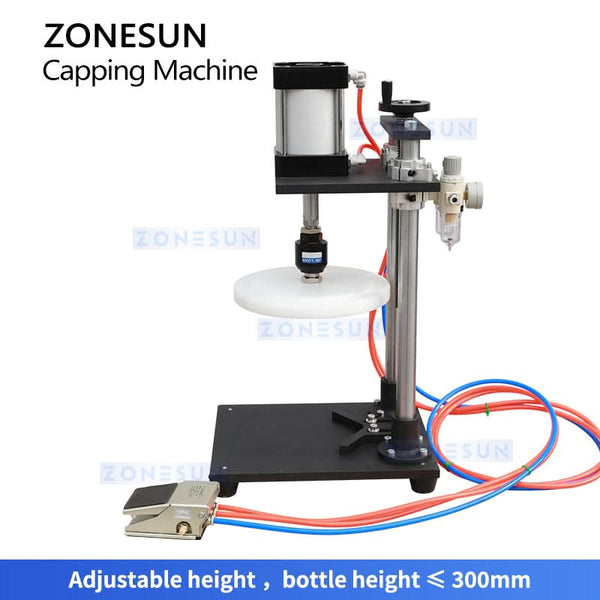

For Bottle Height ≤300mm
Dimensions L353mm* W285 mm × H645 mm
Weight 35 kg
Suitable for paint cans, mixing cans, coating cans, glass bottles.
Note: Requires an air compressor with at least 2200W power, 180L/min discharge rate, 65L tank, and 0.5–0.8MPa pressure.
The capping head is made of durable nylon plastic, making it sturdy and rust-resistant.
It can be customized according to product sizes to ensure a perfect seal for various containers.

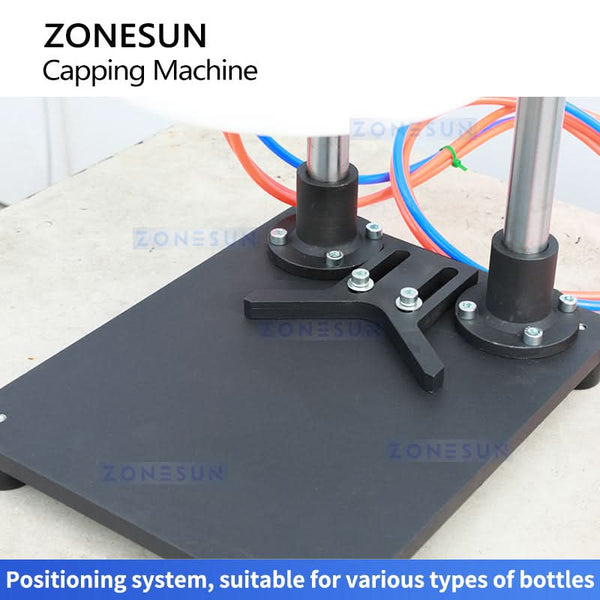

Adjustable positioning allows easy adaptation to different product sizes, offering versatility for various sealing applications.

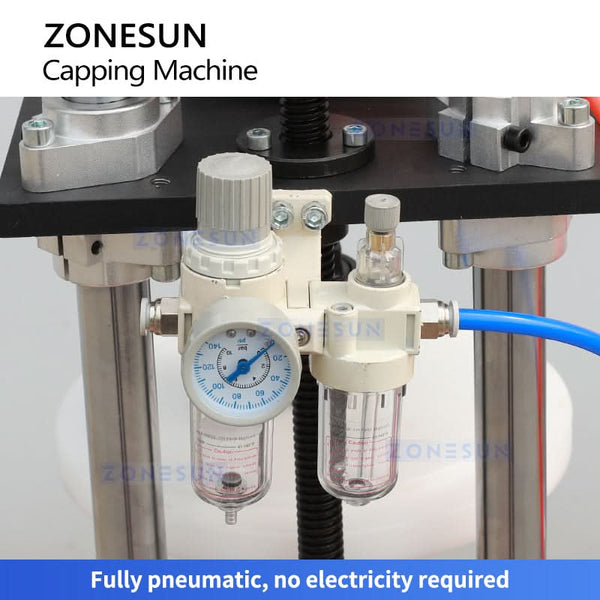

no electricity required, making it safer for flammable and explosive materials.
The pressure gauge displays air pressure and allows easy adjustment of the pressure switch, ensuring optimal sealing performance.
