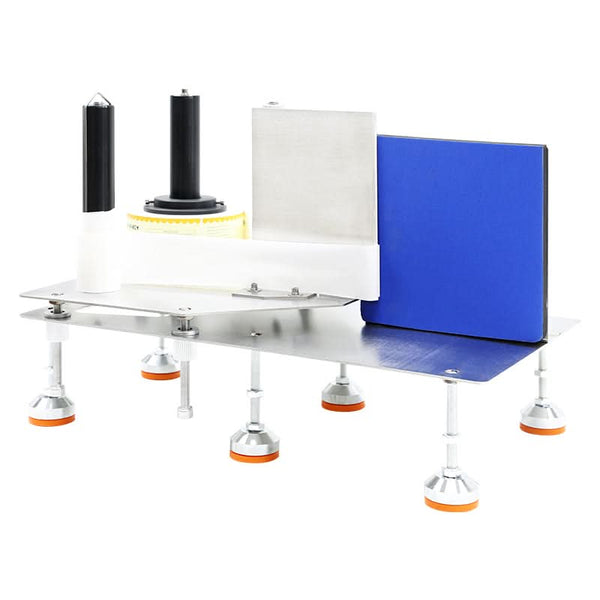

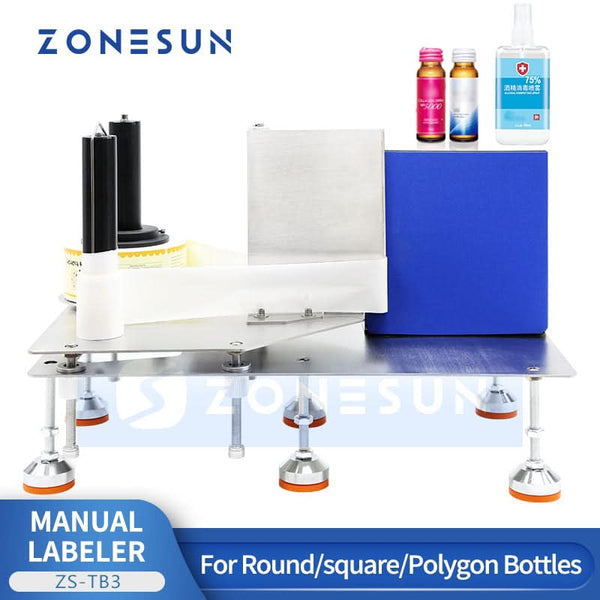

ZONESUN ZS-TB3 Manual Labeling Machine
The ZONESUN ZS-TB3 manual labeling machine is designed for precise label placement on various bottle shapes, including round, square, and polygon. Its adjustable label height and spacing enhance consistency, while the aluminum structure ensures long-term durability. Ideal for small-scale labeling tasks in food, beverage, and daily chemical industries, this compact tool is easy to operate and pre-installed for immediate use upon arrival.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-TB3 |
| Label Width | ≤ 20 cm |
| Label Roll Inner Diameter | > 4 cm |
| Label Roll Outer Diameter | < 180 cm |
| Application | Round, Square, Polygon Bottles |
| Machine Material | Aluminum |
| Machine Weight | Approx. 7 kg |
| Machine Size (L × W × H) | Approx. 580 × 300 × 435 mm |
| Pre-installed | Yes — ready to use upon arrival |

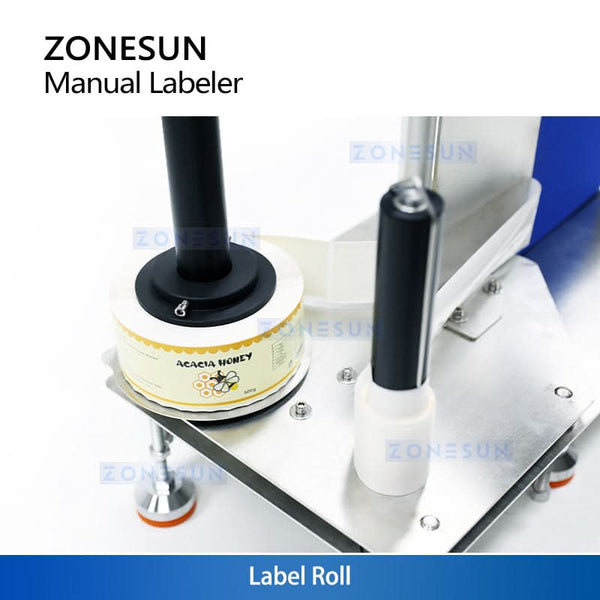

LABEL ROLL
Holds and supports the adhesive label roll securely, allowing smooth and resistance-free unwinding during the labeling process.

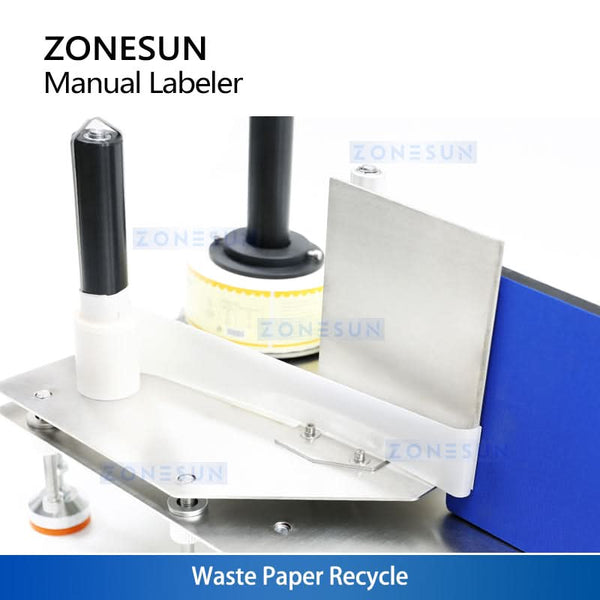

WASTE PAPER RECYCLE
Collects and winds up the peeled backing waste paper after the label is separated, keeping the workspace clean.

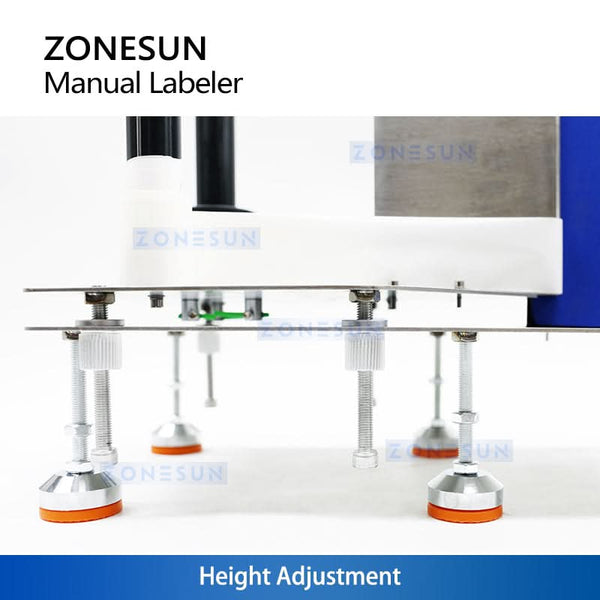

HEIGHT ADJUSTMENT
Allows precise tuning of the operating plate height or angle via rotating screws to adapt to different bottle specifications and label positioning requirements.

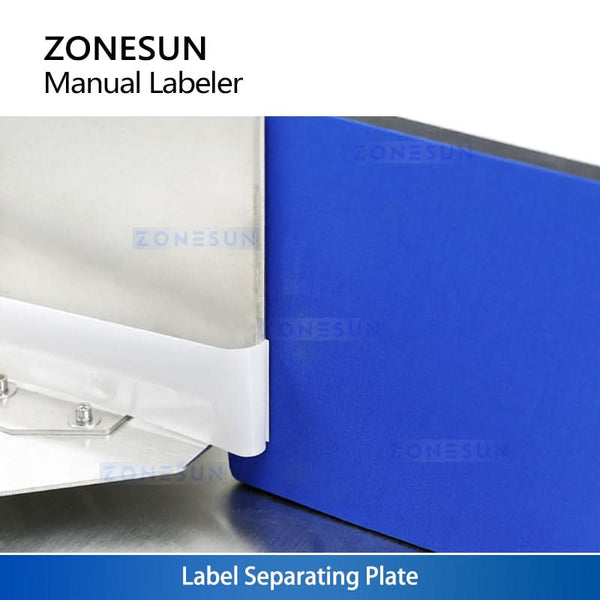

LABEL SEPARATING PLATE
Provides a sharp, precise edge to force the backing paper to bend sharply, peeling the self-adhesive label smoothly away from its substrate.

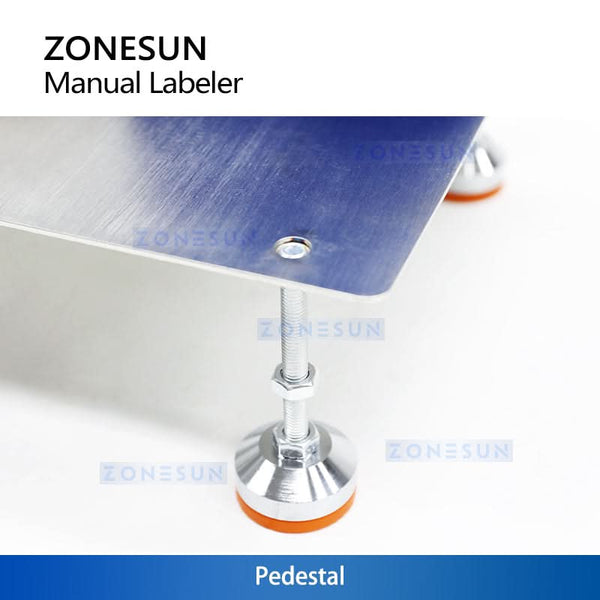

PEDESTAL
Equipped with non-slip, adjustable leveling feet to provide superior mechanical stability and prevent shaking during manual operation.
