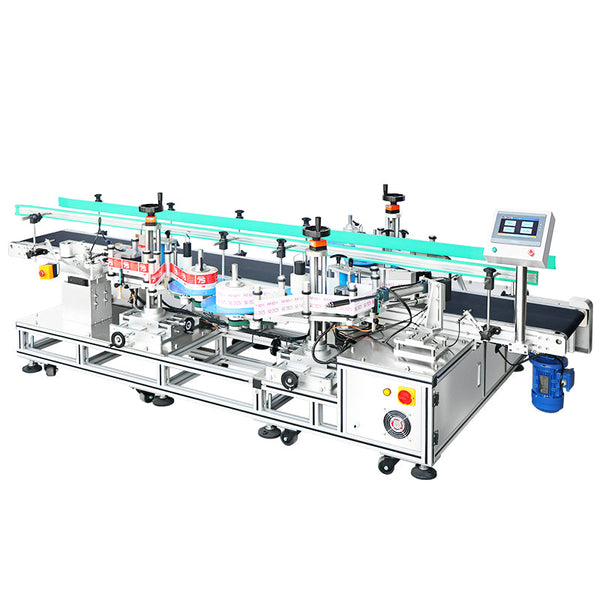

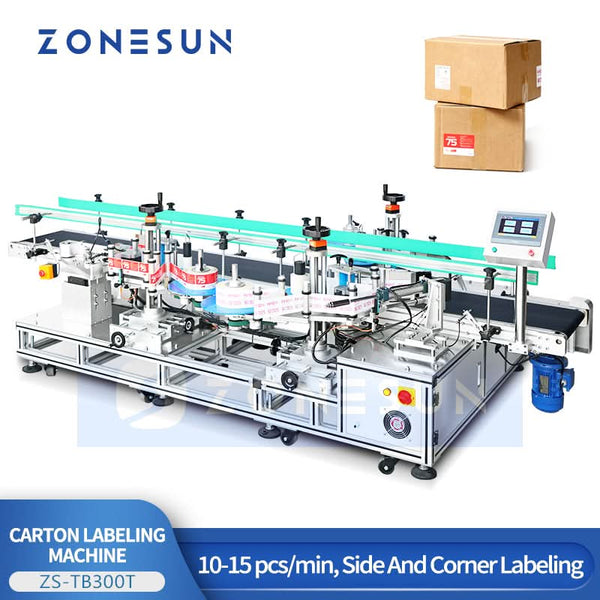

The ZONESUN ZS-TB300T applies pressure-sensitive labels to filled cartons for product identification, barcode labeling, logistics tracking and tamper-evident sealing. Its three-station structure supports carton side and corner labeling in a continuous end-of-line process. Single, dual or triple labeling heads can be configured according to the required labeling positions.
Key Features

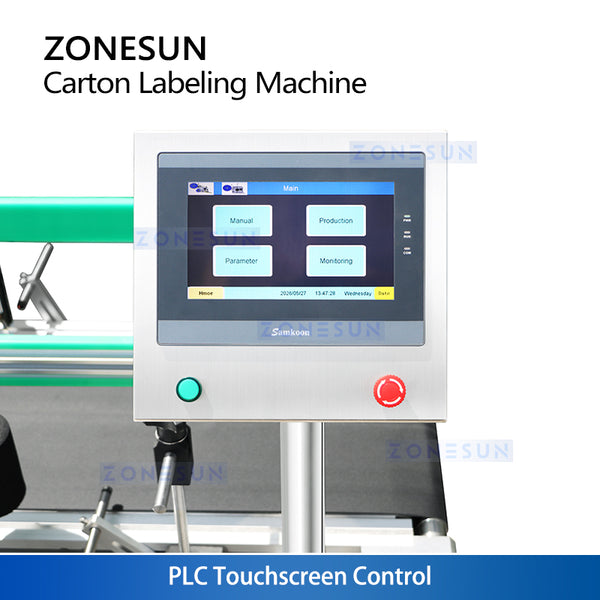

- PLC Touchscreen Control: Adjust labeling speed, label position and other operating parameters through a centralized interface.

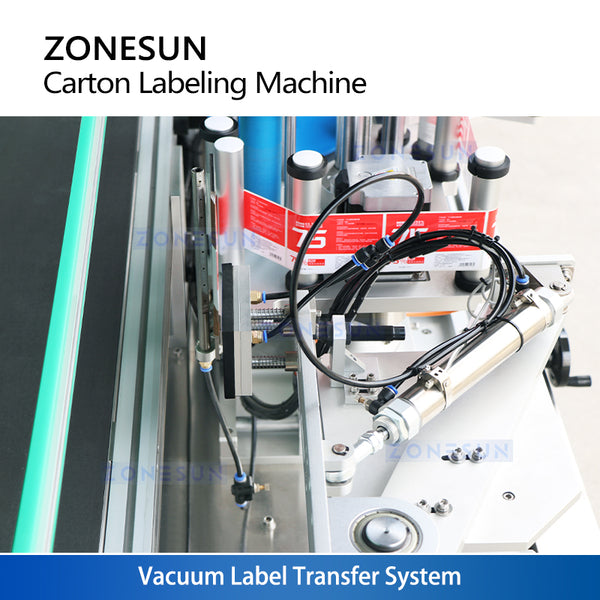

- Vacuum Label Transfer: Vacuum adsorption securely picks up and transfers labels from the dispensing plate for stable placement.

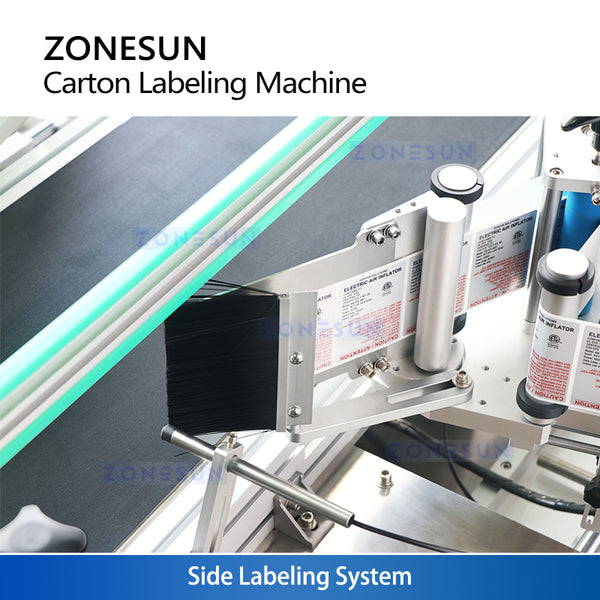

- Side Labeling: Applies self-adhesive labels to carton sides while products move continuously through the labeling station.

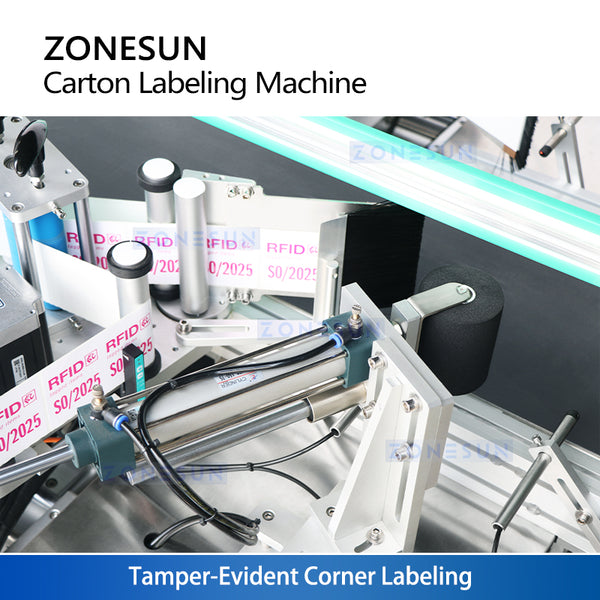

- Tamper-Evident Corner Labeling: Applies one label across adjoining carton surfaces for identification and security sealing.
- Three-Station Configuration: Supports single, dual or triple labeling heads according to the required positions.
- End-of-Line Integration: Can connect with compatible cartoning machines, carton sealers, conveyors and coding systems.
Specifications
| Machine Model | ZS-TB300T |
|---|---|
| Power Supply | 110/220 V, 50–60 Hz |
| Power | 1 kW |
| Labeling Speed | 10–15 pcs/min (depending on product size) |
| Labeling Accuracy | ±1 mm (excluding errors caused by the product and label itself) |
| Applicable Product Size | Customizable |
| Applicable Label Size (L × W) | Length: ≤250 mm; Width: 20–150 mm |
| Package Dimensions (L × W × H) | About 3350 × 1800 × 1370 mm |
| Package Weight | About 690 kg |
Applications
Suitable for product identification, barcode, logistics, warehouse management and tamper-evident labels on filled cartons and boxes. It can be used for food, pharmaceutical, cosmetic, daily chemical, electronics, e-commerce and logistics packaging.
Optional Configurations
- Single, dual or triple labeling heads according to the required labeling positions.
- Thermal transfer coder or inkjet printer for production dates, batch numbers and other information before label application.
