Automatic Bottle Labeling for Round, Square and Flat Containers

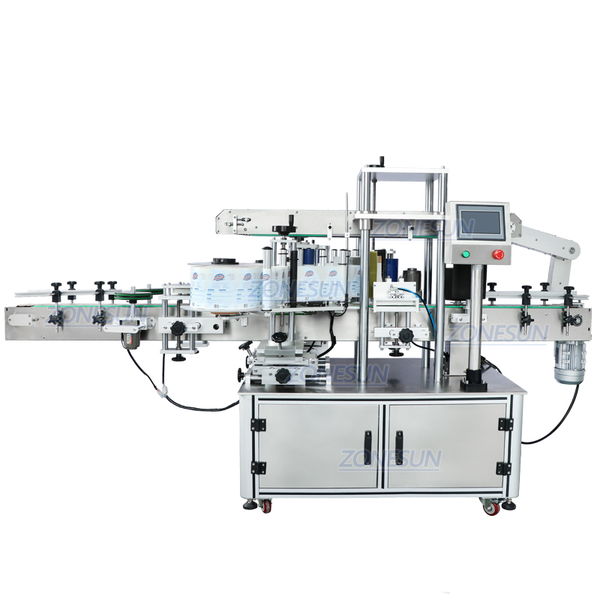

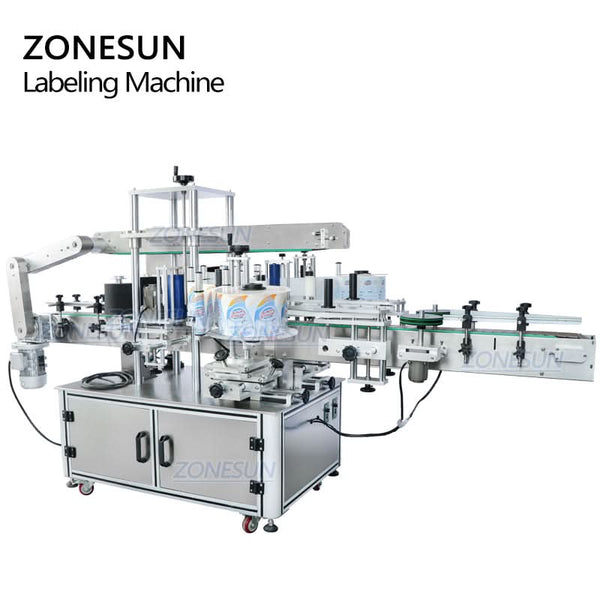

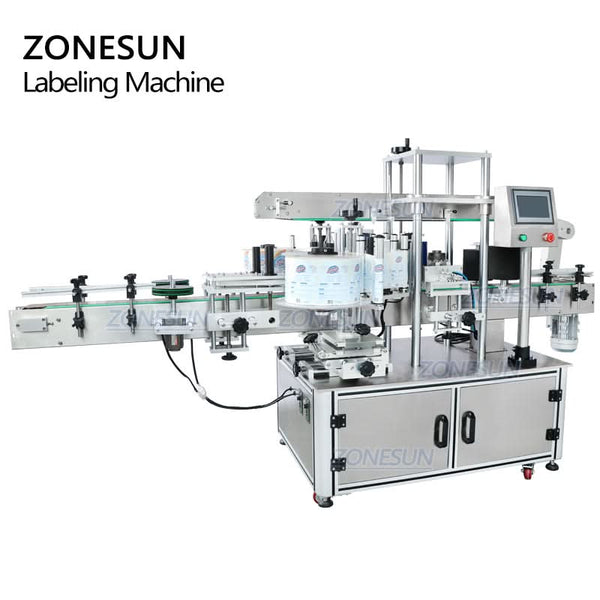

The ZONESUN ZS-TB300Z is an automatic double-side labeling machine for applying self-adhesive labels to compatible round, square and flat bottles. It is suitable for applications such as detergent, wine and oil bottles, and can be paired with filling and capping equipment after confirming production-line compatibility.
Key Features
- Independent labeling heads: Each head can be controlled separately to suit the required labeling setup.

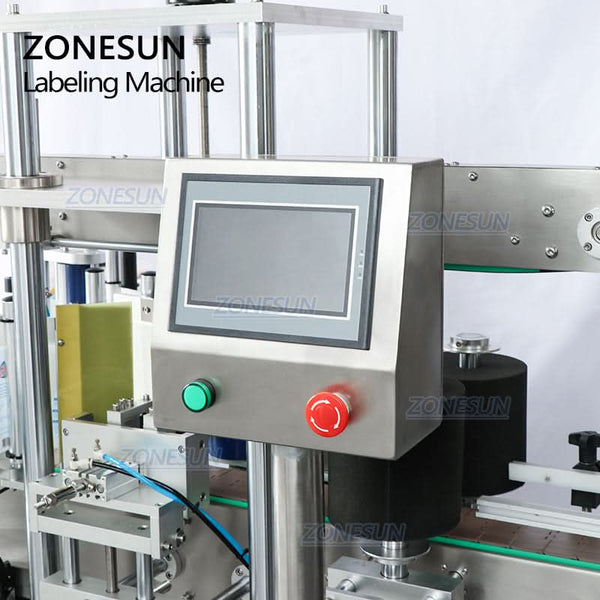

- Touchscreen controls: Adjust operating settings through the touchscreen. Contact us to confirm available interface languages.

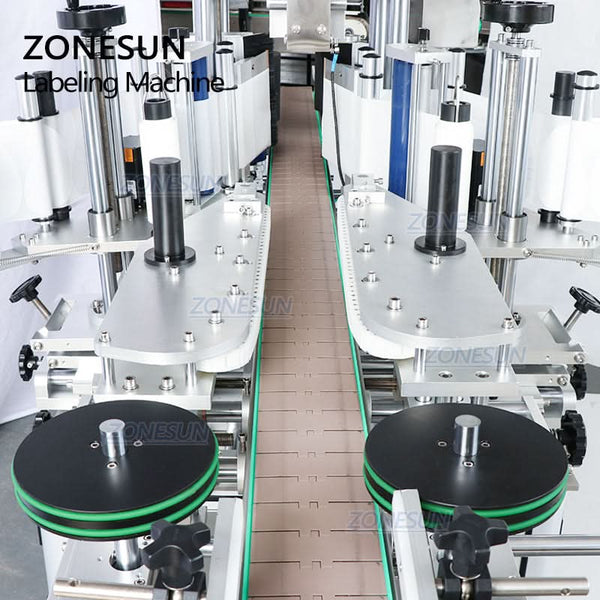

- Bottle separation and guidance: Separating wheels and guides position containers before labeling.

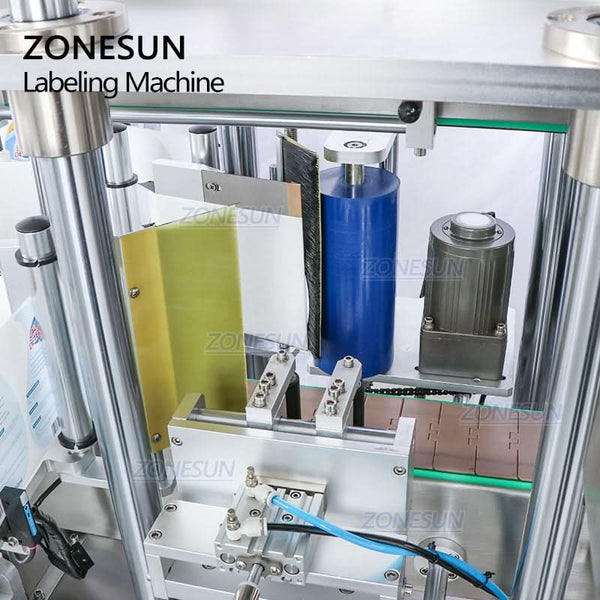

- Adjustable labeling assembly: Multidirectional adjustment helps align the applicator with the bottle and label position.
- Label detection: A label sensor controls label dispensing. Confirm sensor suitability before ordering transparent or special labels.
Choose Your Configuration
- Without date printer: Select this option if you do not require the optional date printer.
- With date printer: Includes the optional date printer. Before ordering, confirm the printing position, required content, consumables and compatibility with your labels. This option should not be assumed to print complete label designs.
- Voltage: Select the 110V or 220V option to match your power supply.
Technical Specifications
| Model | ZS-TB300Z |
|---|---|
| Power Supply | 110V / 220V, 2500W |
| Working Speed | 30–150 bottles/min (varies by bottle size) |
| Labeling Accuracy | ±1 mm |
| Suitable Object Dimensions | 30–300 mm (L) × 30–100 mm (W) × 50–350 mm (H) |
| Suitable Label Size | 15–300 mm (L) × 15–150 mm (W) |
| Label Roll Outer Diameter | Φ280 mm |
| Label Roll Inner Diameter | Φ76 mm |
| Machine Dimensions | Approx. 2710 × 1450 × 1540 mm (L × W × H) |
| Package Dimensions | Approx. 1900 × 970 × 1690 mm |
Actual output and labeling results depend on bottle shape, label size and material, labeling mode and machine setup. The upper speed value is not a guaranteed rate for every application.
Confirm Bottle and Label Compatibility
Send your bottle dimensions, photos, label dimensions, desired label positions and target output before ordering. For round bottles, provide the diameter and height. Please confirm the required front/back or wrap-around labeling arrangement with us; compatibility should not be assumed from bottle shape alone.
Transparent labels, tapered bottles and irregular containers require an application check. Confirm label winding direction and roll requirements before preparing production quantities. Final packing dimensions and the shipping arrangement should be confirmed for your order.
Production-Line Planning
For a complete packaging workflow, discuss compatible filling and capping equipment, conveyor connections and required throughput with our team.
Machine Details
