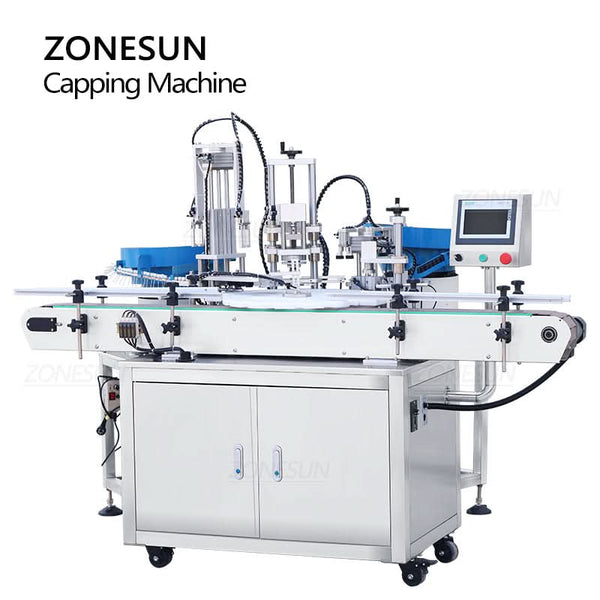

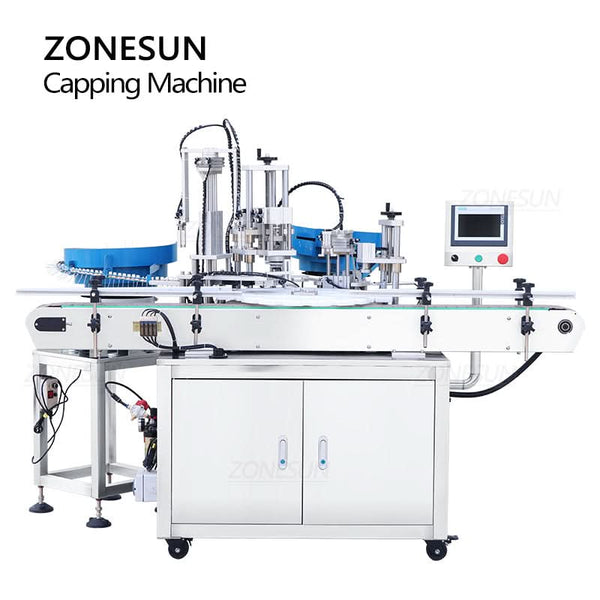

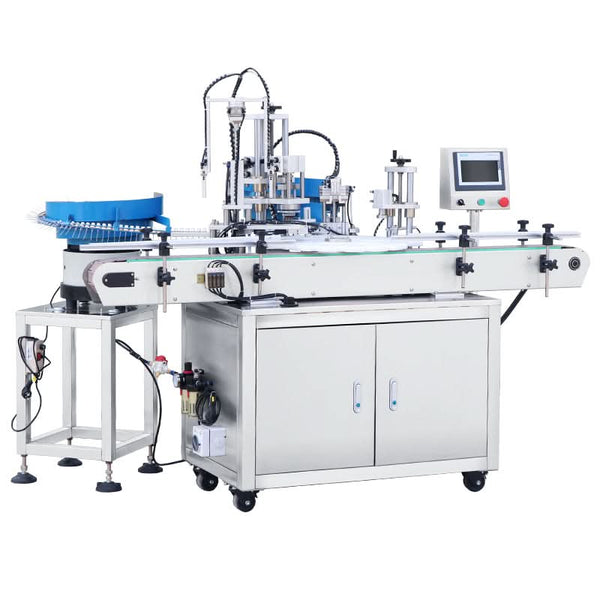

Streamline your packaging process with the ZONESUN ZS-AFC8 4-in-1 Round Bottle Filling and Capping Machine. This fully automatic system integrates bottle loading, sprayer feeding, cap crimping, overcap feeding, and cap pressing into one compact unit—dramatically improving efficiency and reducing labor costs. Designed to work in tandem with filling and labeling machines, it’s ideal for high-volume production lines in cosmetics, pharmaceuticals, and personal care industries.
Parameter
Model ZS-AFC8
Power Supply AC220V/110V, 50–60Hz
Applicable Bottle Diameter Customized
Applicable Bottle Height Customized
Working Speed 20–30 bottles/min (depends on liquid, bottle, and caps)
Max Power 2.5 kW
Conveyor Size Approx. 2000 × 100 mm (L × W)
Machine Size Approx. 2000 × 900 × 1420 mm
Package Size Vibrating Feeder: Approx. 1100 × 540 × 600 mm<br>Machine: Approx. 2100 × 990 × 1620 mm
Package Weight Vibrating Feeder: Approx. 83 kg<br>Machine: Approx. 418 kg

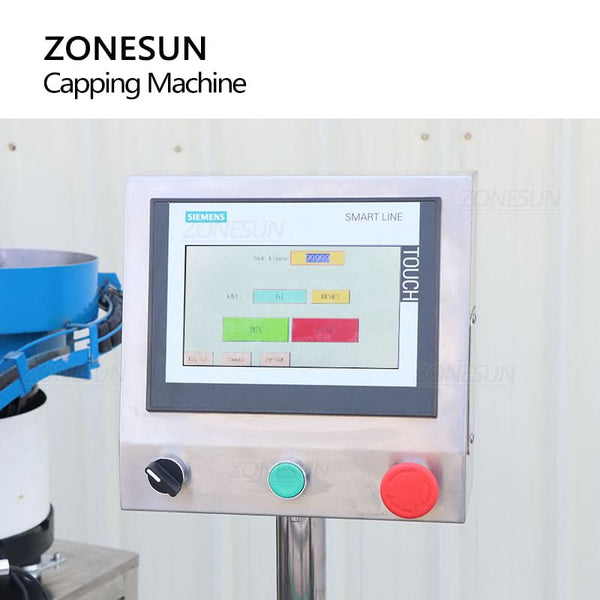

TOUCHSCREEN CONTROL PANEL
The touchscreen control panel provides convenient access to machine settings and operation.
CUSTOMIZABLE OPERATING LANGUAGE
The control-panel language can be customized according to operator requirements.

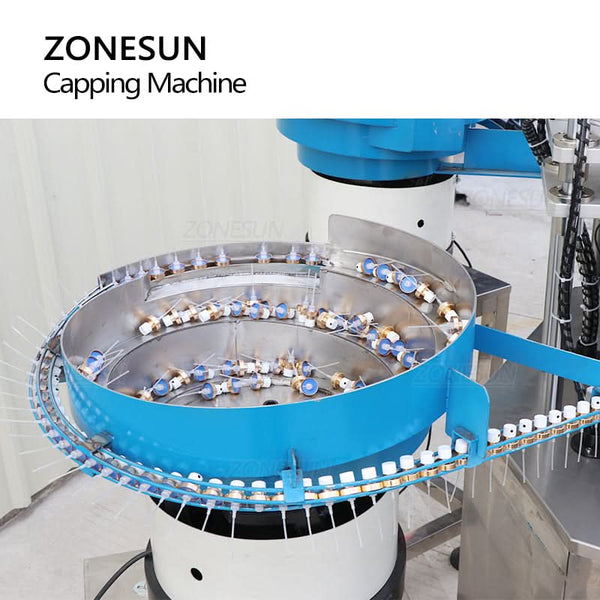

SPRAY-HEAD FEEDING BOWL
One vibratory bowl automatically sorts and feeds spray heads.
COVER FEEDING BOWL
A second vibratory bowl sorts and feeds matching covers with sealing rings.
BOTTLE-DETECTION SENSOR
The photoelectric sensor detects each bottle and coordinates capping operation.
MISSING-BOTTLE PREVENTION
Sensor detection helps prevent containers from being missed during capping.

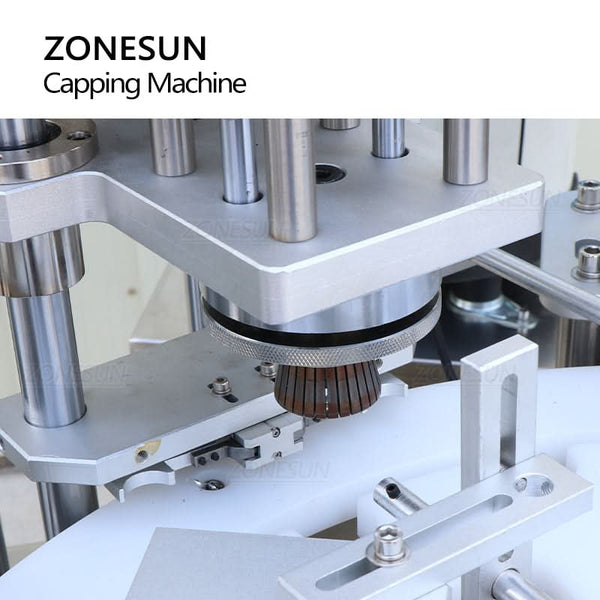

CRIMPING HEAD
The crimping head secures the required closure accurately onto the bottle.
CUSTOMIZABLE CRIMPING SETUP
The crimping head can be customized for the required closure.
CAP-PRESSING HEAD
The cap-pressing station is designed for compatible spray bottle covers and uses feeding cylinders to maintain orientation.
ROTARY BOTTLE PLATE
The rotary plate holds containers securely through filling and capping to support orderly production.
