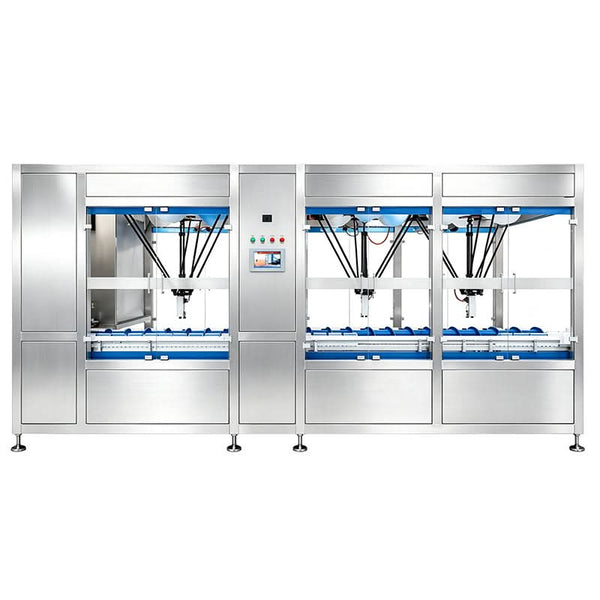

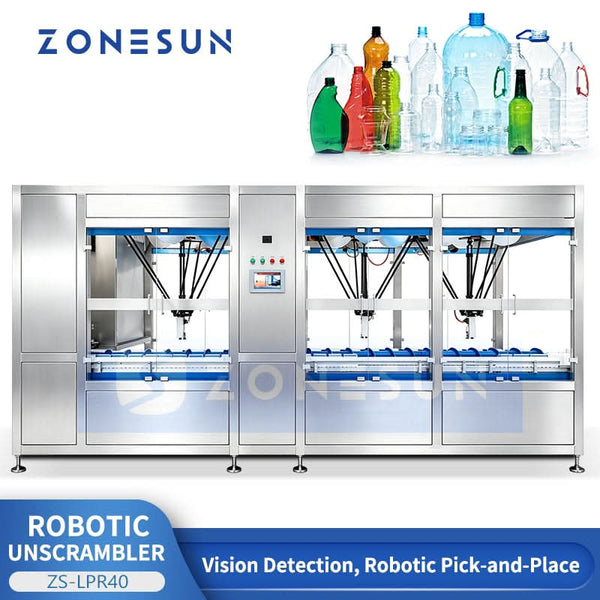

The ZONESUN ZS-LPR40 Automatic Robotic Bottle Unscrambler organizes randomly loaded empty bottles and delivers them upright to downstream packaging equipment. Industrial vision detects bottle position and orientation, while a Delta robot picks up horizontal bottles, rotates them upright and places them into individual holders on the output conveyor. Unpicked bottles are detected, diverted and returned to the feeding area for another picking cycle. The single-head ZS-LPR40 offers a production capacity of ≥40 bottles/min and accommodates round, square and irregular-shaped bottles within the specified size range.
Specifications — ZS-LPR40
| Model | ZS-LPR40 |
|---|---|
| Configuration | Single-head |
| Production Capacity | ≥40 bottles/min |
| Bottle Shapes | Round, square and irregular-shaped bottles |
| Bottle Width | 60–112 mm |
| Bottle Height | 130–330 mm |
| Air Pressure | 0.6–0.8 MPa |
| Compressed Air Requirement | Dry and clean compressed air |
| Power Supply | AC 380 V, 50 Hz, three phase |
| Power | 4 kW |
| Air Consumption | 150 L/min |
| Dimensions (L × W × H) | 4500 × 4200 × 2400 mm |
| Approximate Weight | 1500 kg |
Important Notes
- This listing and price are for the single-head ZS-LPR40, AC 380 V, 50 Hz, three-phase configuration.
- The comparison parameter image also shows the dual-head ZS-LPR70 (≥70 bottles/min). It is a separate model; please contact us if required.
- A dry, clean compressed-air supply at 0.6–0.8 MPa is required.
- Please provide your bottle samples, dimensions and required output to confirm compatibility and integration with downstream equipment.

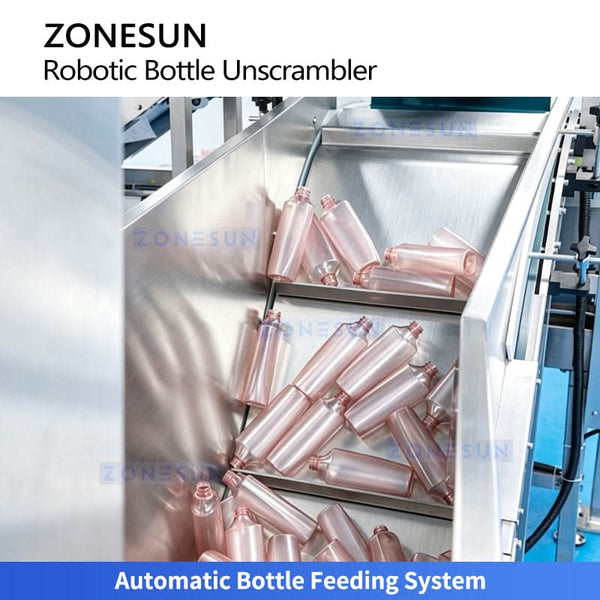

Automatic Bottle Feeding System
Randomly arranged bottles are elevated, separated and continuously fed into the vision-guided robotic picking area.

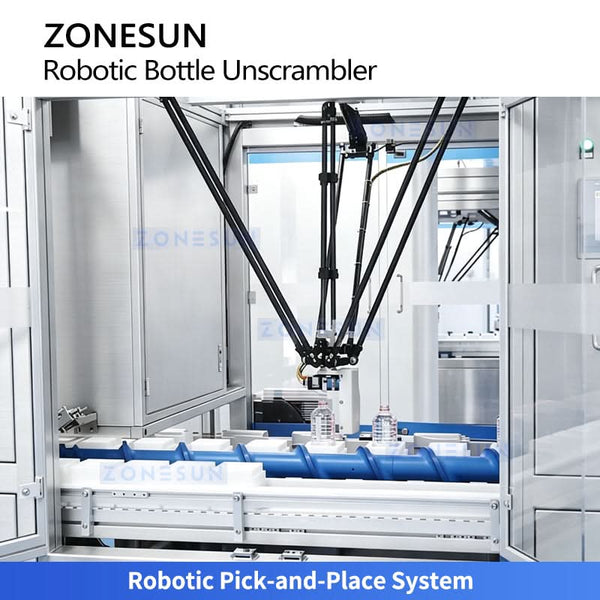

Robotic Pick-and-Place System
The Delta robot automatically picks up horizontally oriented bottles, rotates them upright and places them accurately onto the output conveyor.

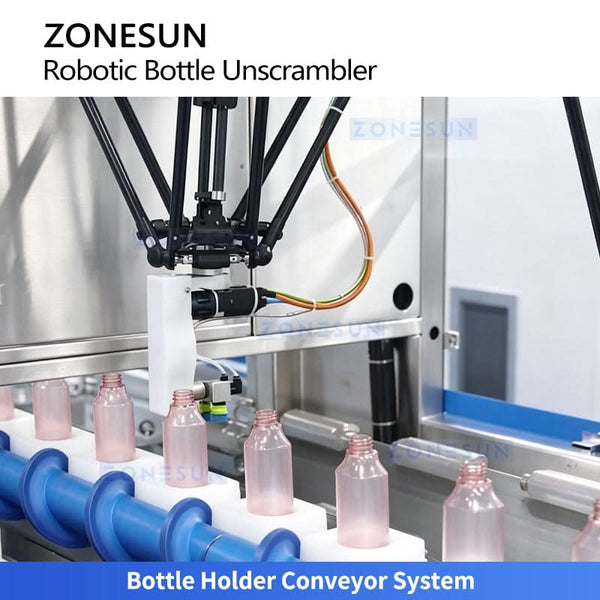

Bottle Holder Conveyor System
Upright bottles are placed into individual holders by the robotic arm and conveyed securely to the downstream production line.

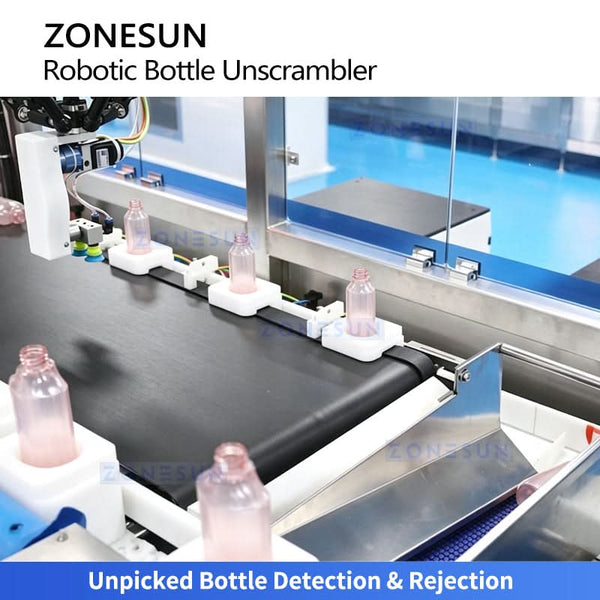

Unpicked Bottle Detection & Rejection
Bottles that are not successfully picked are automatically detected and diverted from the output line.

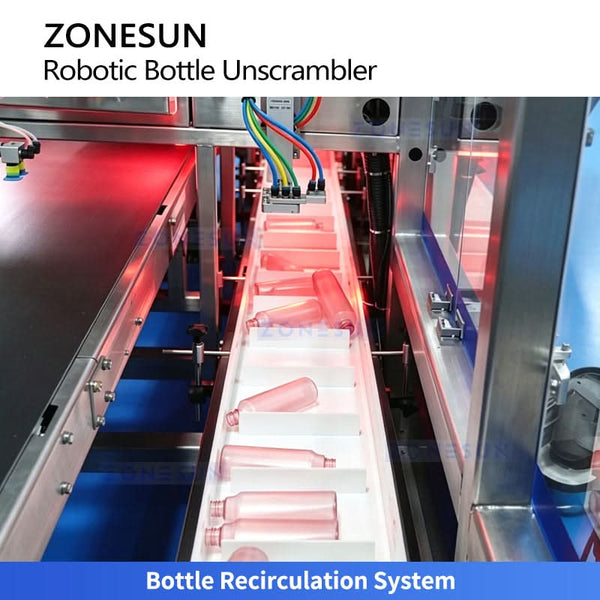

Bottle Recirculation System
Unpicked bottles are automatically returned to the feeding area for another detection and picking cycle, reducing material waste and manual handling.
Vision Detection & Positioning System
The industrial vision system detects bottle position and orientation in real time, providing accurate positioning data for robotic picking.
