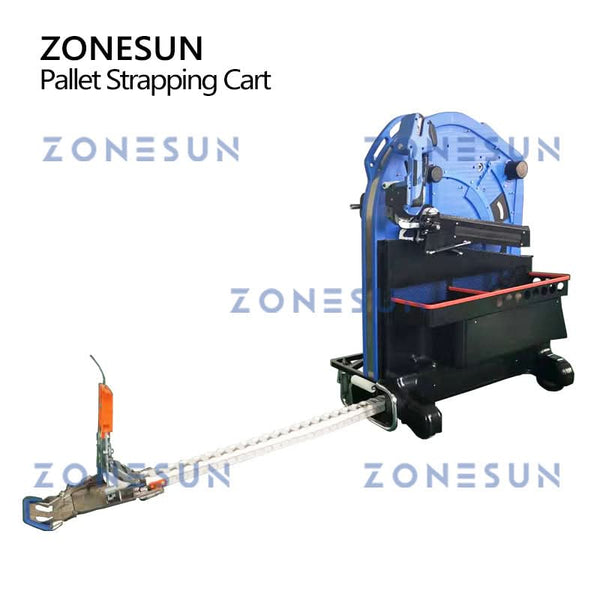

The ZONESUN ZS-PSC1 is a high-efficiency pallet strapping cart designed to streamline packaging operations. It automatically wraps pallets without requiring operators to bend, enhancing safety and productivity. Compatible with both PP and PET straps, it's ideal for warehouses, logistics centers, and manufacturing facilities seeking reliable and ergonomic strapping solutions.
Parameter
Model ：ZS-PSC1
Applicable Pallet Load Size ： Length ≤ 2000 mm; Height ≤ 2800 mm
Applicable Pallet Bottom Clearance ： H ≥ 85 mm; W ≥ 200 mm
Applicable Strapping Material ： PP/ PET
Strap Coil Specification ： Inner Diameter: Φ200 mm or Φ406 mm;
Coil Width: 150–180 mm
Strap Size ： Thickness: 0.6–1.3 mm; Width: 12–19 mm
Battery ： Sealed lithium battery
Battery Charger Type ： External charger (three-stage charging)
Rated Input Voltage ： 110V / 220V AC
Input Voltage Range ： 100–120V AC / 220–240V AC
Output Current ： 10 A
Maximum Chain Speed ： 60 m/min
Motor Power (Chain Motor) ： 200 W
Machine Dimensions (L×W×H) ： 940 × 650 × 1245 mm
Machine Weight ： 103 kg

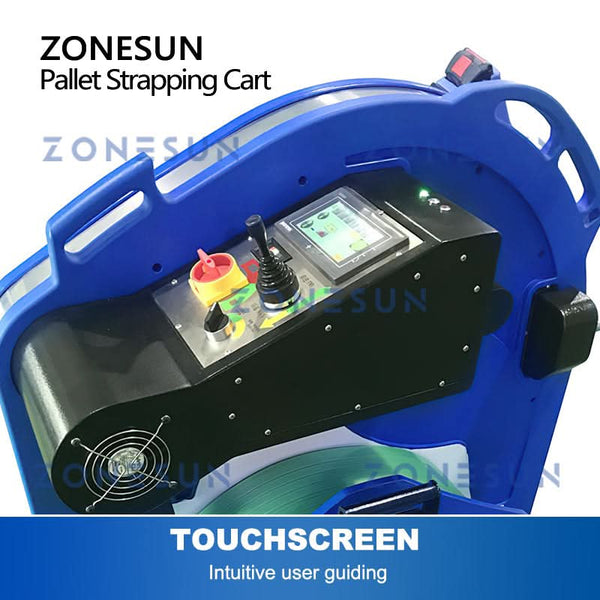

Touchscreen
Provides an intuitive interface for setting strapping parameters, monitoring machine status, and making quick operational adjustments.
Strap Reel Stand
The adjustable stand position allows operators to switch between PP and PET strap coils, supporting compatibility with both strap types.

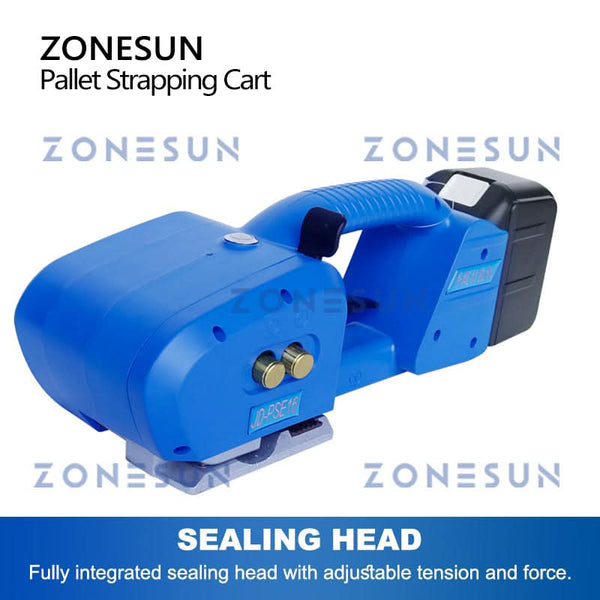

Sealing Head
Melts and seals PP or PET strapping to form a secure joint. The integrated design allows the tension and sealing force to be adjusted for the application.

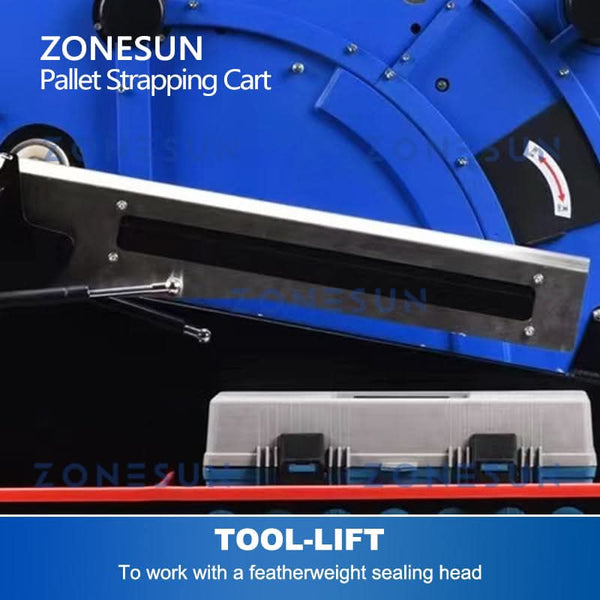

Tool Lift Arm
Assists with lifting and positioning the strapping tool, reducing operator effort and supporting stable tensioning, sealing, and cutting.
Reversing & Drawing head
Controls strap feeding and reversal while pulling and tensioning PP or PET strapping around the pallet for smooth alignment and secure bundling.
Strap Cutter
Cuts PP or PET strapping cleanly after tensioning and sealing, leaving neat strap ends for safe, efficient operation.
