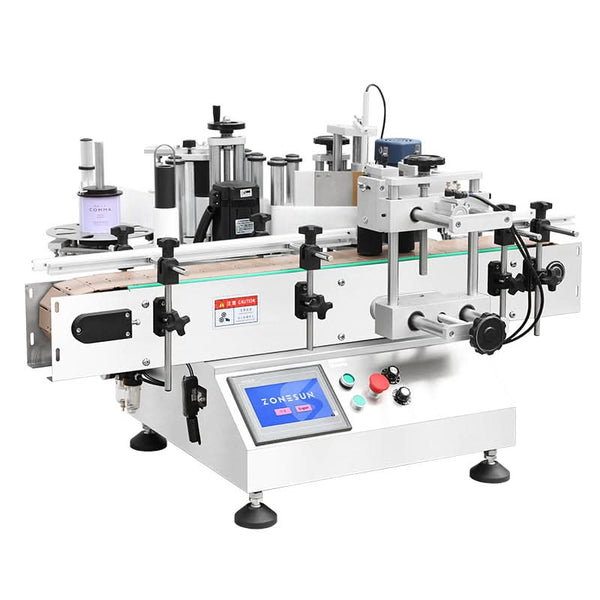

The ZONESUN ZS-TB500 is an automatic labeling machine for round bottles and jars. Its three-roller positioning structure supports single-label and front-and-back double-label applications. It is suitable for beverage, cosmetic, food and daily chemical containers with a bottle diameter of up to 100 mm.
Key Features
- Single-label or front-and-back double-label operation
- Working speed of approximately 20–50 bottles/min
- Suitable for labels measuring 15–140 mm wide and 25–300 mm long
- 7-inch touchscreen with adjustable delay time and working speed
- Standard and transparent-label sensor configurations available
- Optional coding unit for printing dates and batch numbers before labeling
Parameters
| Parameter | Specification |
|---|---|
| Machine Model | ZS-TB500 |
| Voltage | 110V, 60Hz / 220V, 50Hz |
| Working Speed | 20–50 bottles/min |
| Suitable Label Size | 15–140 mm (W) × 25–300 mm (L) |
| Label Roll Inner Diameter | 76 mm |
| Label Roll Outer Diameter | ≤240 mm |
| Suitable Bottle Diameter | ≤100 mm |
| Package Size | 1285 × 795 × 840 mm |
| Package Weight | 118 kg |
Configuration note: Select the appropriate sensor version for opaque or transparent labels. The coding unit is optional and is included only with the corresponding configuration.

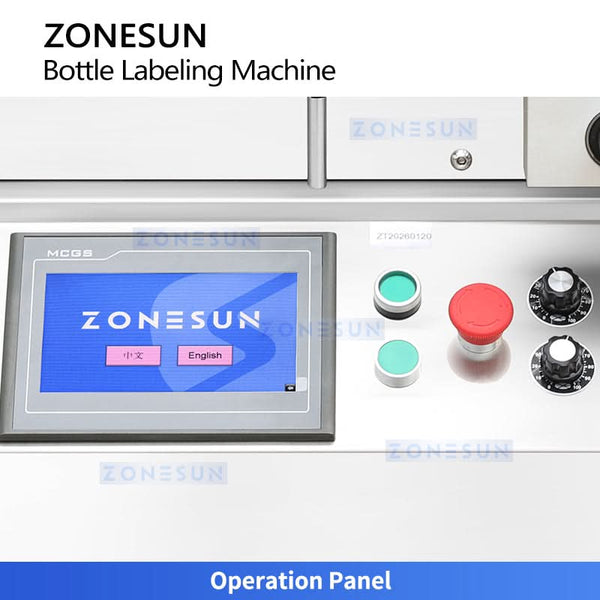

- English-language touchscreen for setting operating parameters.
- Controls allow adjustment of delay time and working speed.

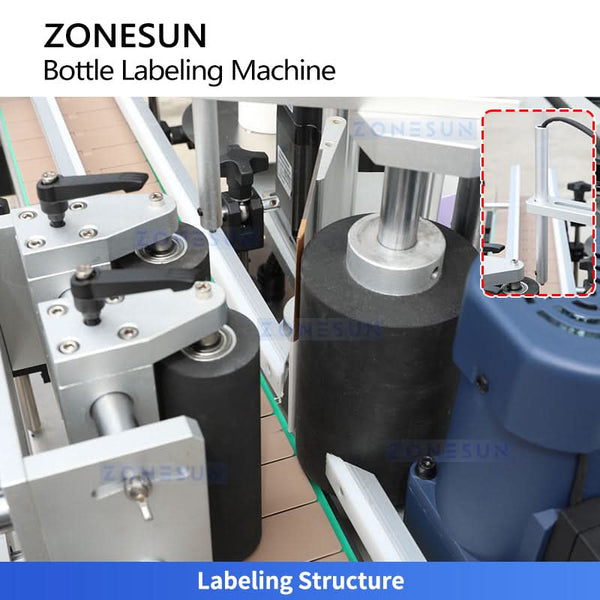

- Three rollers rotate round containers during labeling.
- The sensor detects containers as they enter the labeling position.

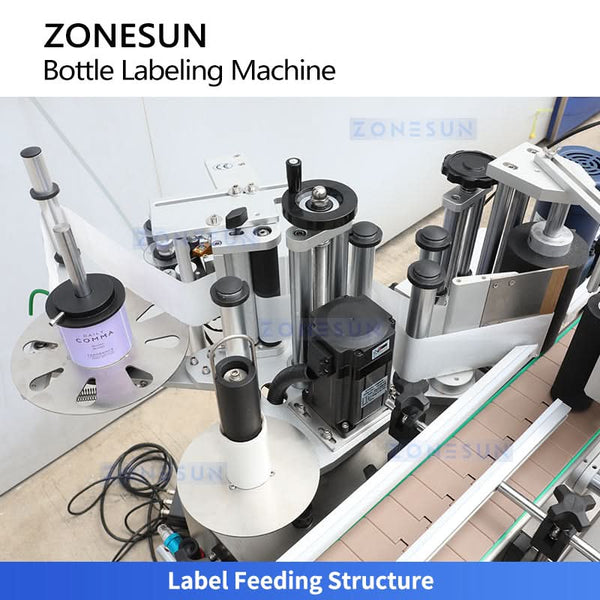

- Guide rollers feed the label roll into the labeling structure.
- Adjustable components support labels within the specified size range.

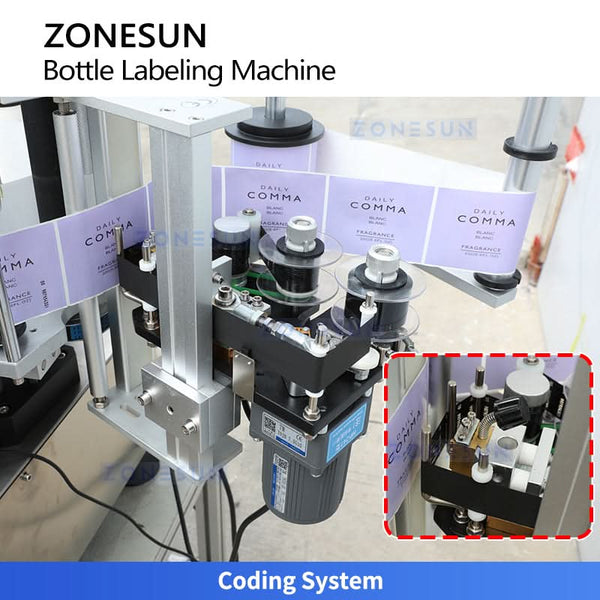

- Optional coding unit prints dates and batch numbers before labeling.
- Available only with the corresponding coder configuration.

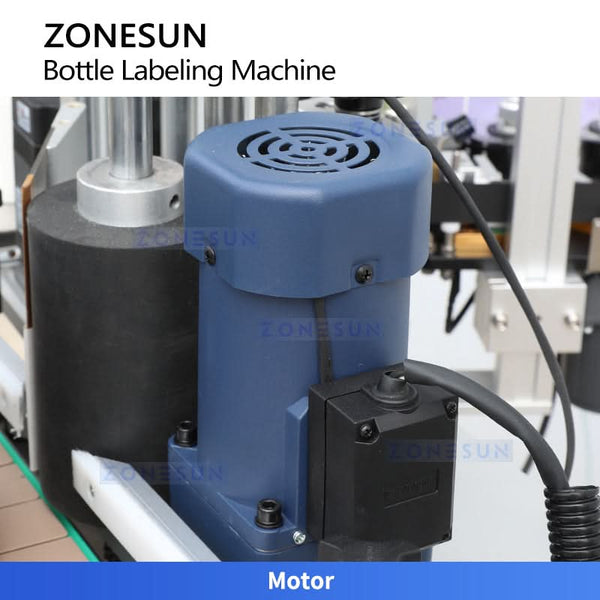

- Motor drives the bottle-rotation and labeling mechanism.
- Variable-speed conveyor transports containers through the machine.
- Guide rails adjust for bottles up to 100 mm in diameter.
