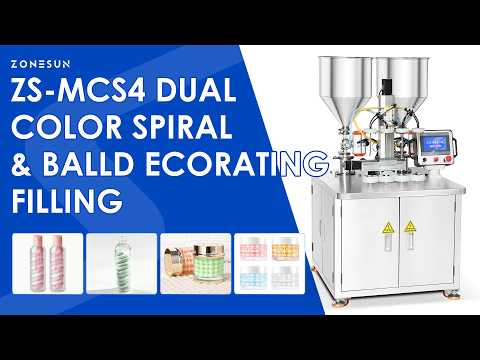

The ZONESUN ZS-MCS4 is designed for dual-color spiral and decorative pattern filling of compatible viscous products. It uses separate material hoppers, piston pumps, and a rotatable bottle holder to produce distinctive two-color spiral or patterned effects at approximately 3–4 molds per minute.
Configuration Notice
Standard machine price: US$17,000. The standard configuration supports one filling application. To use two different filling applications, an additional filling head and matching mold set is required for US$450, making the configured total US$17,450. The molds are application-specific and are not shared between the two filling methods.
Key Features
- Dual-material filling: Separate supply channels handle two compatible materials during the filling process.
- Decorative pattern forming: Combines controlled filling with container rotation to create spiral, layered, or other patterned effects.
- Piston pump filling: Provides controlled dispensing for compatible viscous products.
- Rotatable bottle holder: Rotates containers during filling to help form consistent spiral patterns.
- Touchscreen control: Centralized adjustment of filling parameters and operating settings.
- Independent material hoppers: Stores and supplies the two product materials separately.
Specifications
| Model | ZS-MCS4 |
|---|---|
| Power Supply | 220 V / 50 Hz |
| Total Power | 1.8 kW |
| Filling Motors | 2 |
| Capping Motors | 3 |
| Lifting Motor | 1 |
| Production Capacity | 3–4 molds/min (one out of two; depending on material formulation) |
| Main Hopper Capacity | 20 L |
| Machine Dimensions (L × W × H) | 950 × 750 × 1500 mm |
| Packing Dimensions (L × W × H) | 1040 × 920 × 1690 mm |
| Weight | Net: 230 kg; Gross: 270 kg |
Applications
Suitable for two-color spiral filling and decorative ball-pattern filling of compatible viscous products. Select the appropriate configuration based on whether one or both filling applications are required.
