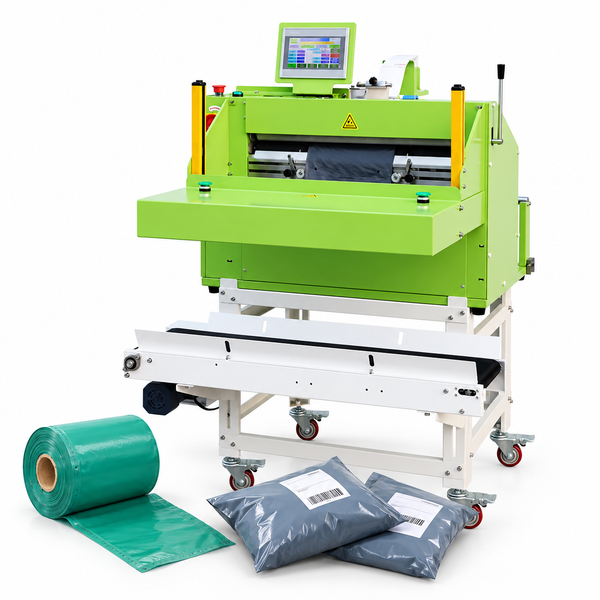

The ZONESUN ZS-TB103 combines PE bag feeding, fanfold label application, bag opening, heat sealing and discharge conveying for courier and e-commerce parcel packaging. It uses perforated PE roll bags. The operator places each product into the opened bag; the machine then seals the bag and conveys it onward.
Applications and material selection
Suitable for PE roll bags approximately 0.03–0.08 mm thick, with perforated lines and a one-sided opening, and prepared fanfold adhesive shipping labels. Before ordering, provide your bag and label samples, product dimensions and required output for compatibility confirmation.
Technical specifications
| Model | ZS-TB103 |
|---|---|
| Power supply | 110V or 220V, 50/60Hz; select the voltage variant for your supply (220V specification: ±5%) |
| Power | 600 W |
| Working speed | Approx. 20–28 bags/min; depends on bag and label size and the loading cycle |
| Labeling accuracy | ±3 mm, excluding product and label errors |
| Label feeding speed | 40 m/min |
| Conveyor speed | 40 m/min (listed in the original specification; confirm the conveyor setting before ordering) |
| Bag size — labeling mode | 15 × 20 cm to 50 × 90 cm |
| Bag size — sealing only | 10 × 15 cm to 50 × 90 cm |
| Packaging material | PE roll bags with perforated lines and a one-sided opening |
| Bag thickness | Approx. 0.03–0.08 mm |
| Machine dimensions | Approx. 1050 × 850 × 850 mm |
| Machine weight | Approx. 60 kg |
| Package dimensions | Approx. 1160 × 1060 × 1540 mm |
| Package weight | Approx. 189 kg; confirm the final packed shipment weight before arranging transport |
Operating sequence
Bag feeding → label application → air-blowing bag opening → manual product loading → heat sealing → conveyor discharge.
Output depends on bag and label size and the operator's loading cycle. Machine weight and packed shipment weight are different measurements; confirm the final packing data for freight planning.
Control panel
The PLC interface provides real-time parameter monitoring. A multilingual display can be customized for convenient operation.
Labeling structure
The labeling mechanism attaches fanfold labels to bags. An electric-eye label sensor assists label positioning for precise, reliable application.
Air-blowing bag opening
The air-blowing system opens the bag to help the operator load the product.
Adjustable-temperature heat sealing
The sealing mechanism uses adjustable-temperature heat sealing to provide a tight, reliable closure for the loaded bag.
Sealing sensor
The sensor detects when a product is placed into the bag and triggers the sealing process for timely, accurate sealing control.
Conveyor belt
The conveyor transfers sealed bags smoothly to the next process for downstream packaging.
