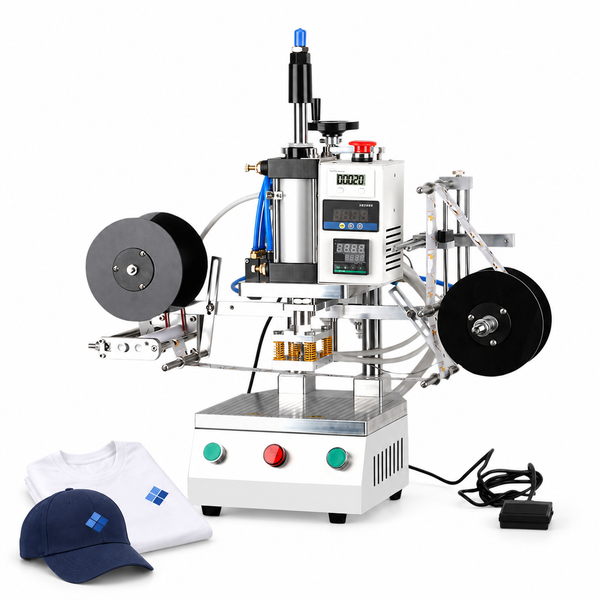

The ZONESUN ZS-TY100 is a pneumatic heat transfer machine for applying custom labels, images and designs to hats, clothing and other suitable articles. It features digital temperature control, automatic transfer paper feeding and foot pedal operation for personalized products and promotional merchandise.
Air supply required: This machine must be used with an air compressor, which is sold separately.
Technical Specifications
| Model | ZS-TY100 |
|---|---|
| Voltage | 110 V / 220 V |
| Power | 500 W |
| Heating area | 60 × 90 mm |
| Temperature range | 50–350°C |
| Working speed | 0–1800 pcs/hour |
| Workbench size | Approx. 228 × 250 mm |
| Pressure | 50 kgf/cm² |
| Air compressor connector | 8 mm outside diameter |
| Package dimensions | Approx. 660 × 410 × 700 mm |
| Package weight | Approx. 25 kg |
Packing List
- 1 × machine
- 1 × 10m² stamping plate
- 1 × custom stamping paper
Product Images and Details
Digital Control Panel
Set the stamping temperature using the digital panel. The display shows both the set temperature and the actual temperature for clear monitoring.
Automatic Paper Feeding
The machine feeds transfer paper automatically after each product is stamped, reducing manual paper handling.
Pattern Sensor
The sensor detects patterns and controls automatic transfer paper feeding.
Air Cylinder
The pneumatic cylinder drives the stamping head steadily. Adjustment knobs allow the head's movement speed to be changed.
Foot Pedal Control
Press the foot pedal to activate stamping and transfer the design onto the product.
