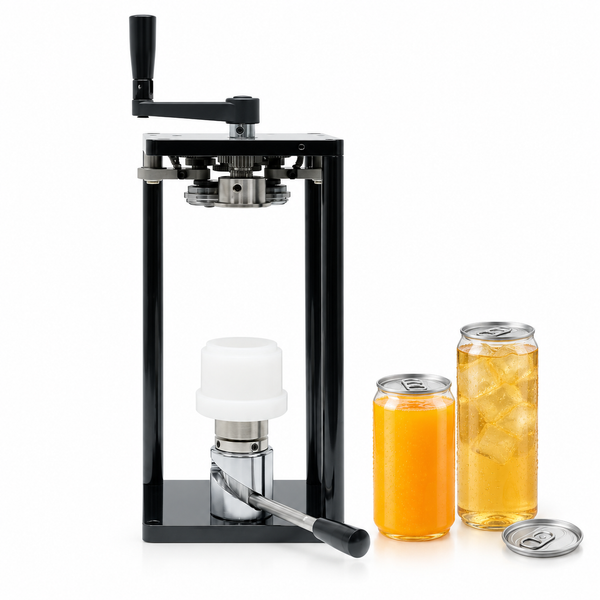

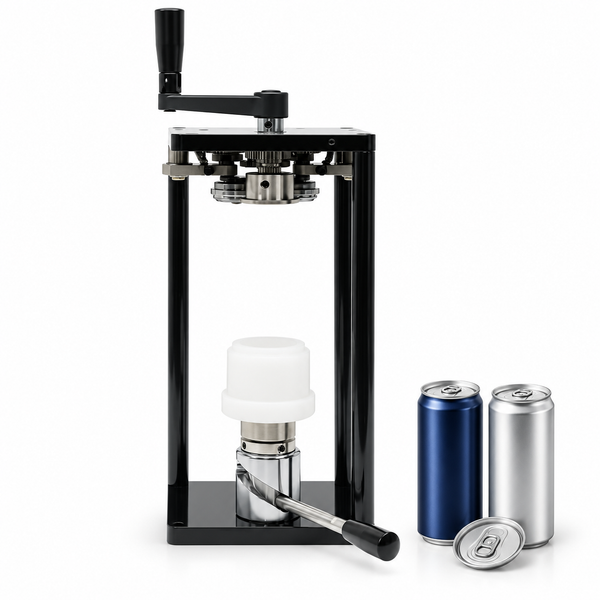

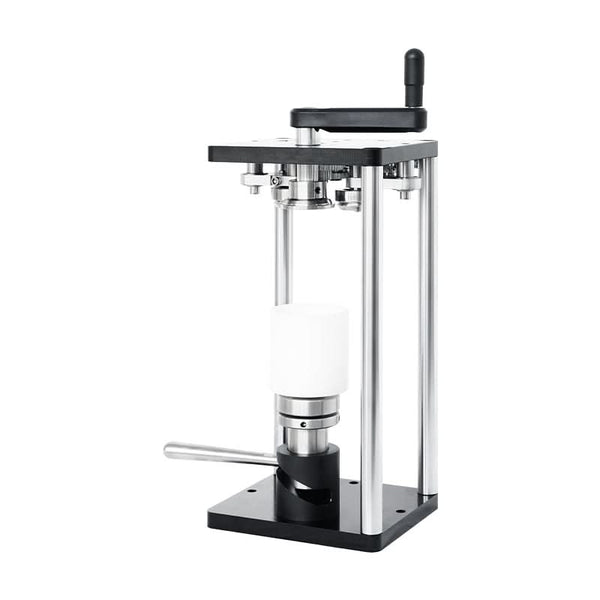

The ZS-FJG100 is a manually operated tabletop can seaming machine for compatible PET cans. The standard configuration fits two PET can heights—115 mm and 168 mm—with a 55 mm mouth diameter and 66 mm body diameter. Other can sizes and compatible aluminum-can configurations can be customized from physical samples.
Key Features
- Manual operation: The hand crank controls the seaming process without requiring electrical power.
- Two standard PET can sizes: Suitable for 115 mm and 168 mm tall PET cans with the same 55 mm mouth and 66 mm body diameter.
- Rotating can support: The container rotates during operation so the rollers can form the seam around the lid.
- Compact tabletop design: Suitable for samples, product testing and small-batch packaging.
- Custom configurations: Other cans can be matched by customizing the holder and seaming components from customer-supplied physical samples.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-FJG100 |
| Maximum Speed | 10 pcs/min |
| Standard Container | PET cans |
| Standard Can Height | 115 mm / 168 mm |
| Standard Mouth Diameter | 55 mm |
| Standard Can Body Diameter | 66 mm |
| Machine Size | 180 × 153 × 490 mm |
| Machine Weight | 10.3 kg |
| Package Size | 210 × 260 × 480 mm |
| Package Weight | 11 kg |
Customization Notice: Each machine comes with two molds and is configured for one can-mouth diameter. For other can sizes or materials, the holder and seaming components must be customized. Physical can and lid samples are required for accurate customization.

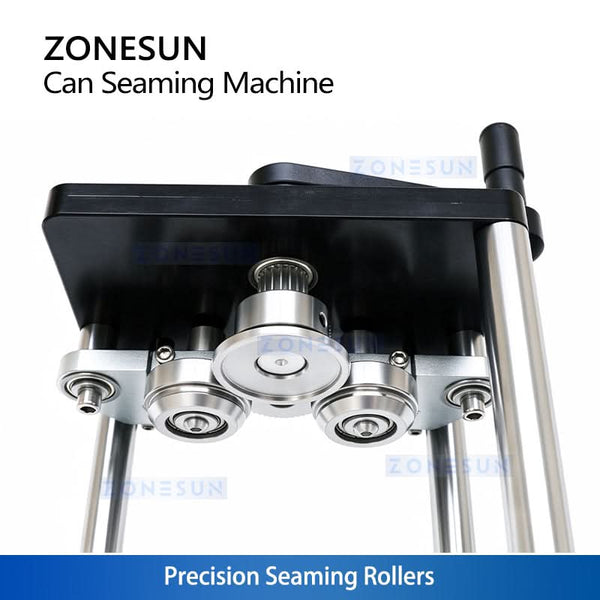

PRECISION SEAMING ROLLERS
The seaming rollers form a tight and consistent seam between the can body and lid during manual operation.

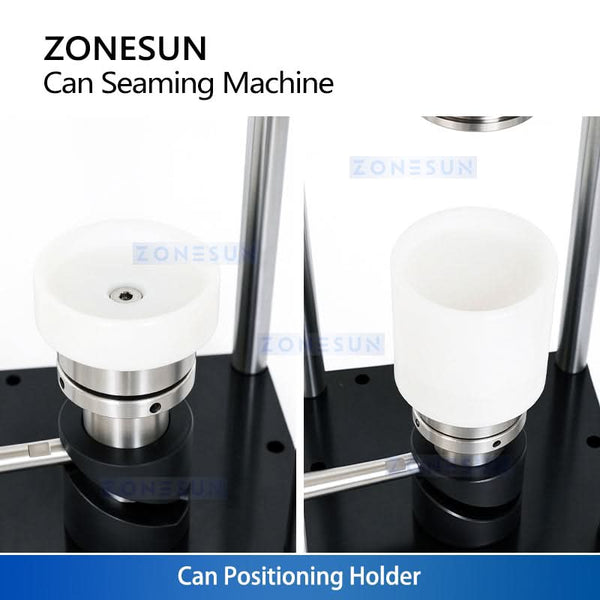

CAN POSITIONING HOLDER
Securely supports and positions the can during seaming for stable and consistent operation, and can be customized for different container sizes.

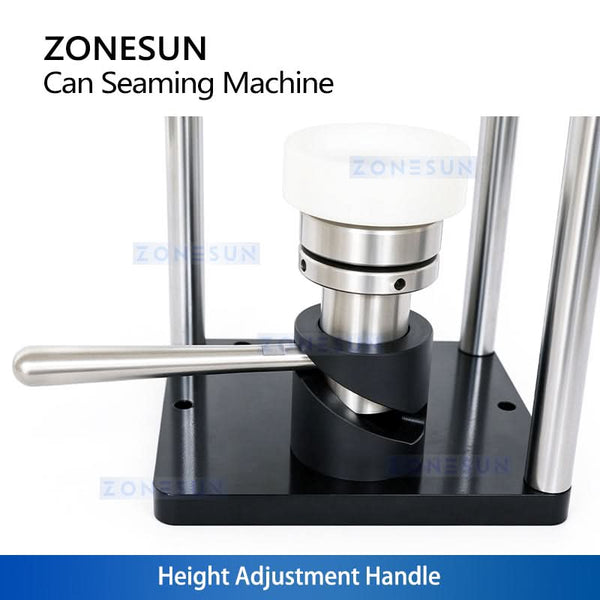

HEIGHT ADJUSTMENT HANDLE
Adjusts the can holder height to accommodate different container heights and ensure proper positioning during seaming.

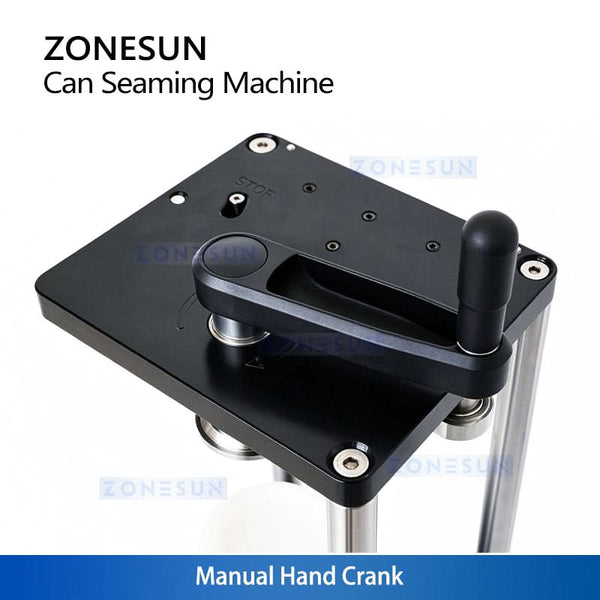

MANUAL HAND CRANK
Manually drives the seaming mechanism for simple operation without electrical power.

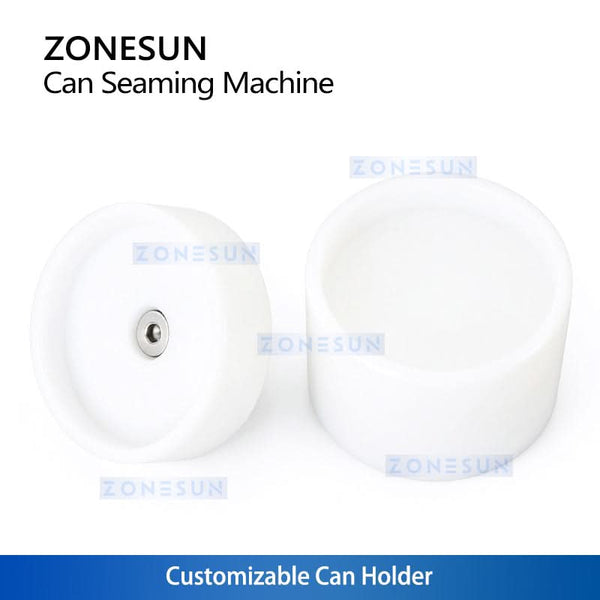

CUSTOMIZABLE CAN HOLDER
The can holder can be customized according to the diameter and size of your container for proper positioning during seaming.
