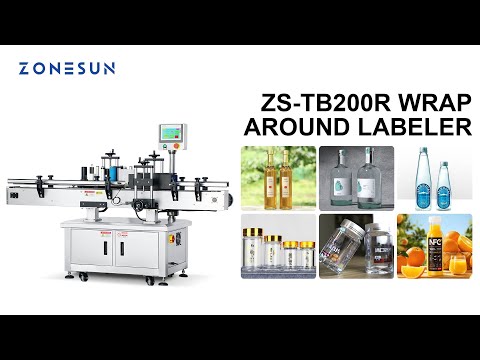

ZONESUN ZS-TB200R Automatic Round Bottle Wraparound Labeling Machine

Automatic Round Bottle Wraparound Labeling

The ZONESUN ZS-TB200R uses a conveyor, bottle-separation mechanism and application belt to apply self-adhesive labels to compatible cylindrical bottles, jars and cans. The listed output is approximately 40–150 bottles/min, depending on bottle and label dimensions, setup and feeding conditions.

Choose Your Configuration

• For Normal Label: configuration with a standard sensor for non-transparent labels.
• For Transparents Label: configuration with a dedicated transparent-label sensor. Send your label and backing samples to confirm compatibility.
• With Date Coder: includes the selected date-coder option. Confirm coding method, print position, number of lines, characters and consumables before ordering.
• Without Date Coder: date coder is not included.
• 110V or 220V: select the voltage that matches your power supply.

Bottle & Label Compatibility

The listed bottle range is 30–100 mm diameter and 30–200 mm height. Labels must fall within 15–130 mm width and 15–300 mm length. All dimensions must be checked together against the actual labeling area.

Full-wrap check: A 100 mm diameter cylindrical bottle has a circumference of approximately 314 mm, exceeding the listed 300 mm maximum label length. Full coverage therefore depends on bottle circumference, label length and the required gap or overlap; it is not available for every bottle in the diameter range.

Contact us for separate front-and-back labels, registration to a bottle feature, tapered containers or unusual bottle shapes. Confirm these applications with samples before ordering.

Technical Specifications & Listed Components

Before Ordering & Frequently Asked Questions

What label-roll details should I provide?

Provide label dimensions, gap, backing width, material, winding direction and dispensing orientation. The listed roll core diameter is 76 mm and outer diameter is 350 mm. Confirm the approved roll specification before printing your labels.

Can the normal-label configuration detect transparent labels?

Select the transparent-label configuration for clear labels and provide samples to verify detection with your label and backing combination.

Does automatic bottle separation include an unscrambler?

The machine lists an automatic bottle-separation mechanism on its conveyor. Confirm how bottles will be supplied to the conveyor and whether a separate feeding table or unscrambler is required and included in the quotation.

What does the date coder print?

A date coder is available through the With Date Coder option. Confirm your required text, print location, line count, coding method and supplied consumables. These details are not specified by the option name alone.

Which control components will be supplied?

The component list names Siemens PLC, INOVANCE/Siemens control panel, SICK label sensor and Coreken inverter. Confirm exact models and the control-panel and sensor configuration for your order. Brand-origin information does not establish the manufacturing location of each supplied component.

Explore more round bottle labeling machines or automatic labeling machines.
