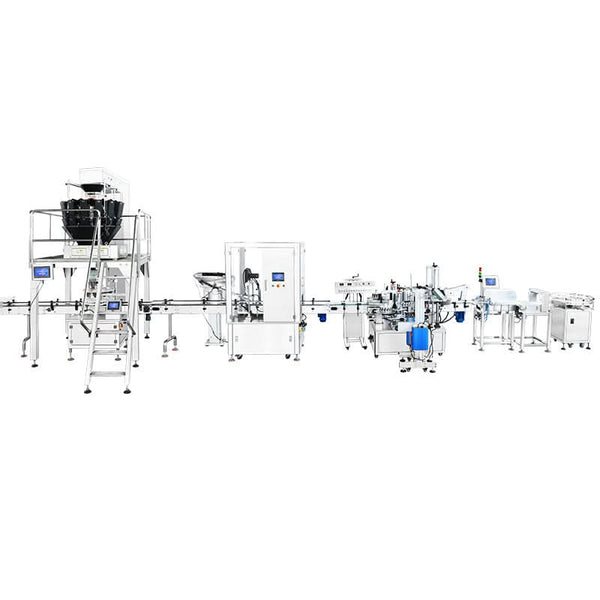

This powder packaging system can automatically complete filling, capping, labeling, laser coding, and weighing. It is suitable for small to medium production of bottled granules or powder and granule mixtures, such as coffee powder, spices, and herbal seasonings. Ideal for efficient and compact powder filling and labeling lines.
Here are the extracted machine specifications in their original text format with parameters separated by colons:
14 Heads Weighing Filling Machine
Model: ZS-GW14M
Language Support: Multiple languages
Power Requirement: Single-phase AC220V/50Hz, 60Hz 2KW

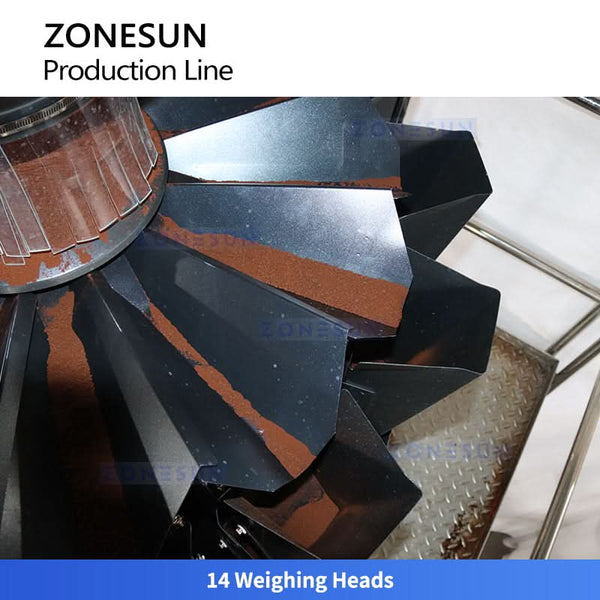

Number of Weighing Heads: 14
Material: 304 Stainless Steel (Mirror/Pattern Plate)
Weighing Range: 10-1500g | 10-2000g | 10-3000g | 100-5000g
Theoretical Speed: 120 b/min | 120 b/min | 120 b/min | 80 b/min
Theoretical Accuracy: ±1-5g (depending on material state)
Hopper Volume: 1.6L | 2.5L | 3L/4L | 5L

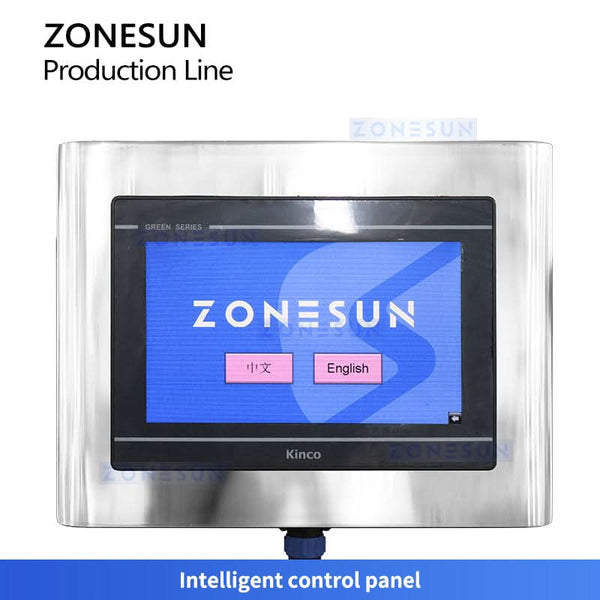

Touch Screen: 10-inch color touch screen
Program Storage: 99 sets of data
Packaging Dimensions: 1530*1130*1310mm | 1530*1130*1300mm | 1610*1310*1600mm
Machine Net Weight: 135KG
Gross Weight: 385KG
Production Speed: About 20-30 bottles/min(depending on filling range and materials)
Power Supply: 220V 50Hz 0.3KW
Air Pressure: 0.6MPa
Machine Size: About 2000*900*1450mm
Total Weight: About 200kg

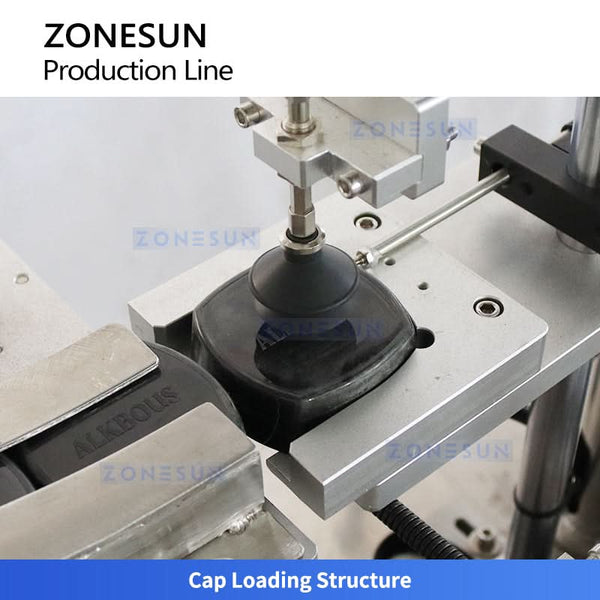

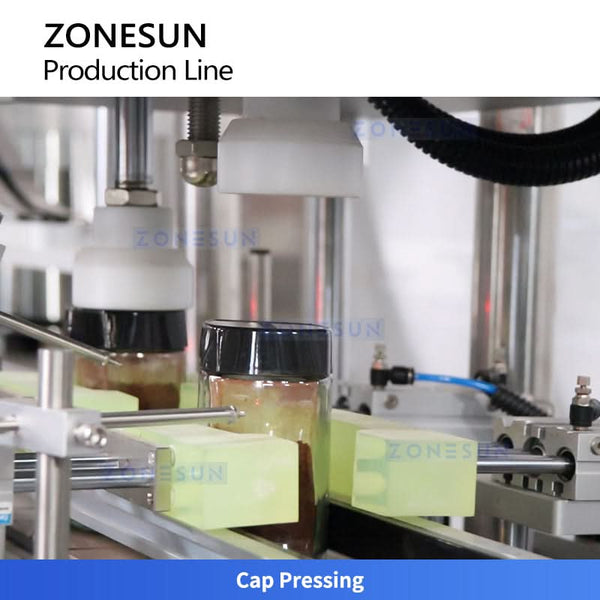

Cap Pressing Machine
Model: ZS-VTYG02S
Machine Voltage: 110/220V 50-60HZ 2KW
Production Speed: About 25-30 bottles/min(depending on bottle and cap size)
Applicable Bottle Size: ①83*107*170mm ②78*69*132mm ③56*67*110mm(Customized)
Applicable Cap Size: ①83*107*27mm ②78*69*24mm ③56*67*19mm(Customized)
Working Pressure: 0.4-0.6MPa
Machine Size: About 2420*1172.5*2169mm(L*W*H)
Package Size: About 1910*1150*2200mm(Main Machine) About 1600*980*800mm(Vibratory Bowl Sorter1) About 1100*900*940mm(Vibratory Bowl Sorter2)
Package Weight: About 520kg(Main Machine) About 225kg(Vibratory Bowl Sorter1) About 161kg(Vibratory Bowl Sorter2)
Induction Sealing Machine(For foil Tids)
Model: ZS-FK4200V
Power supply: 220V 50HZ 4200W
Sealing Diameter: 15-60mm/20-70mm/35-85mm/50-120mm/60-130mm
Sealing Speed: 0-260bottles/min(depending on bottle size)
Applicable Bottle Height: 10-300mm(based on 900mm height conveyor belt)
Machine Size: About 700*690*1450mm
Machine Weight: About 43kg
Package Size: About 850*650*1590mm
Package Weight: About 92kg
Double Sides Labeling Machine
Model: ZS-TB300
Power supply: AC220V 50Hz/60Hz 1500W
Working Speed: About 60-350 bottles/min(depending on bottle size)
Flat Bottle: Single/Double Sides
Labeling Material Thickness: 20-120mm
Labeling Material Height: 30-350mm
Label Size: (L)25-300mm (H)15-200mm
Label Roll Inside Diameter: Φ76mm
Label Roll Outside Diameter: Φ350mm
Machine Size: About 2120*940*1500mm
Packing Size: About 2850*1300*1900mm
Net Weight/Gross Weight: About 450KG/650kg
Laser Coding Machine
Model: ZS-LM1
Power supply: 110/220V 50-60Hz 30W
Cooling Method: Air cooling
Laser: CO2
Port: SD card, USB 2.0, RS232
Wave Length: 9.3/10.2/10.6μm
Working Speed: PVC tubes: 40 m/min PET bottles: 20000 bottles/h Coated cartons: 35 m/min
Marking Range: 70*70/90*90/110*110/140*140mm
Applications: PET/Acrylic/Glass/Leather/Plastic/Cloth/Rubber (HDPE is not suitable)
Language: English, French, Korean, Japanese, Russian, Arabic, etc.
Machine Weight: About 110kg
Machine Size: About 1430*565*930mm
Check Weigher
Model: ZS-MD210
Power supply: AC220V±10% 50HZ (60HZ)
Rated Power: 0.15KW
Single Weighing Range: 1500g
Weighing Accuracy Range: ±0.2g±0.5g
Minimum Scale: 0.1g
Conveying Speed: 30-100m/min
Maximum Speed: 160pcs/min
Weighted Material Size: 300mm(L)*200mm(W)
Weighing Platform Conveyor Belt Size: 400mm(L)*210mm(W)
Product Size: 1522mm(L)*560mm(W)*1222mm(H)
Rejection Method: Push rod type/lever/flip plate/blowing type/belt sinking
Control System: High-speed A/D sampling controller
External Air Source: 0.6-1Mpa
Air Pressure Interface: 8mm
Body Material: SUS304 Stainless Steel
Bottle Collecting Turntable
Model: ZS-SP800S
Voltage: 220V 50Hz(110V can be customized)
Power Supply: 200W
Bottle Specifications: Square bottle/Round bottle
Conveying Speed: 0-20 revolutions per minute (adjustable)
Turntable Diameter: 800mm
Machine Size: About 550*550*990mm
Package Size: About 1050*1000*1130mm
Net Weight/Gross Weight: About 93kg/120kg
quality assurance
We pride ourselves on delivering products of the highest quality. With a rigorous quality assurance process in place, our products meet and exceed industry standards.
