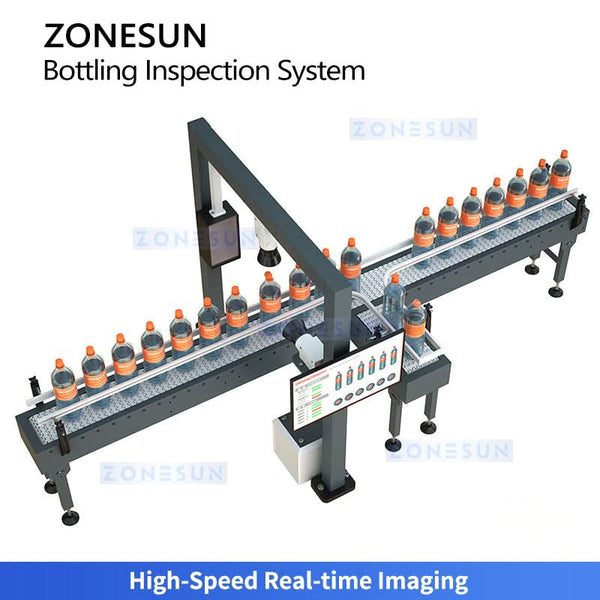

The ZONESUN ZS-MD200 is a bottling inspection system designed for cap, liquid level, and label verification.
Running at 50-200 bottles per minute, it integrates industrial high-resolution CCD/CMOS cameras and advanced vision algorithms to provide non-contact, real-time quality monitoring.
With multi-dimensional inspection functions, it ensures filling accuracy, sealing integrity, and label correctness, while automatically rejecting defective products.
Suitable for pharmaceutical, beverage, and daily chemical production lines, it replaces manual inspection to eliminate fatigue errors and guarantee product safety.
Specifications
- Model: ZS-MD200
- Detection Speed: 50–200 bottles/min (depending on product size & precision)
- Detection Accuracy: Minimum defect recognition: 0.1–0.5 mm
- Camera Configuration: Industrial high-resolution CCD/CMOS cameras (2–20 megapixels)
- Lighting System: High-intensity LED flash (ring, backlight, or bar combinations)
- Applicable Range: Vials, ampoules, PET/glass beverage bottles (2 ml-250 ml)
- Operating Power: 1.5–3.5 kW
- Protection Rating: IP65 or higher (wash-down & humid environments)
- Compliance: Data tracking functions, GMP & FDA 21 CFR Part 11 compliant
