Description

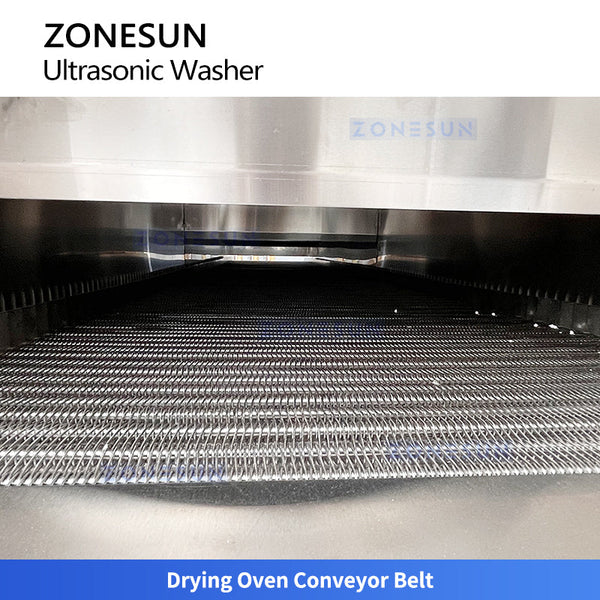

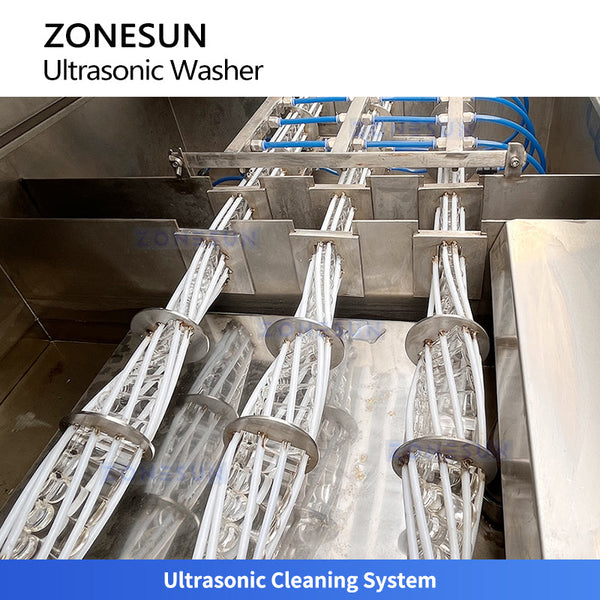

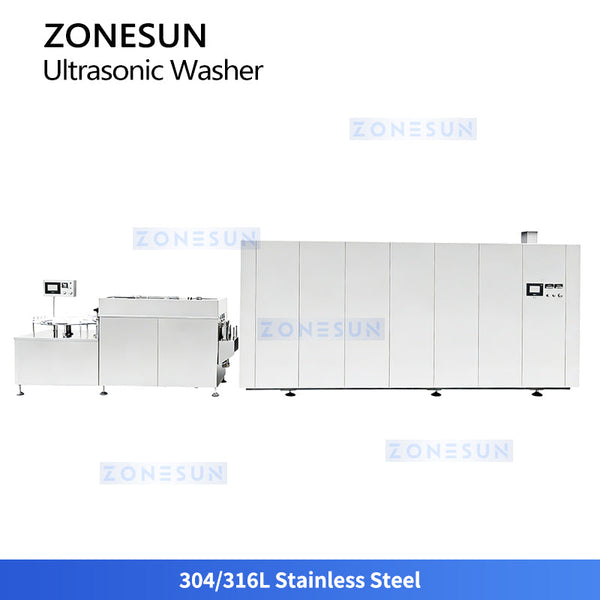

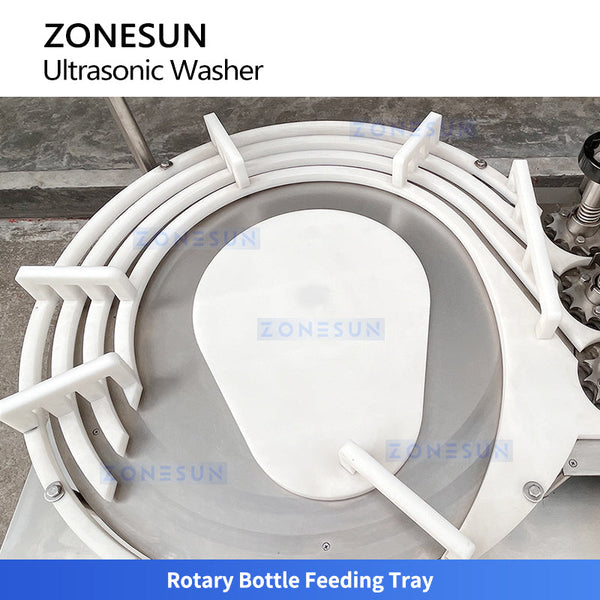

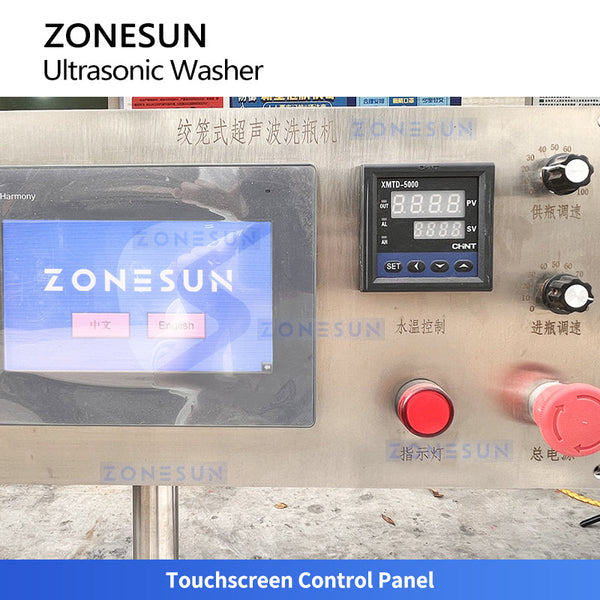

The ZONESUN ZS-UWB7 is a high-speed ultrasonic bottle washing and drying machine designed for 2–10 ml small bottles. Operating at 210–240 BPM, it integrates ultrasonic cleaning, compressed-air rinsing, and high-temperature drying into a continuous automated process. Equipped with a touchscreen control panel, rotary bottle feeding tray, ultrasonic cleaning system, and drying oven conveyor belt, the machine ensures efficient, hygienic, and stable bottle preparation for pharmaceutical, cosmetic, and laboratory applications. Built with 304 stainless steel housing and 316L contact parts, it offers excellent corrosion resistance and long-term durability.
Parameter
- Model: ZS‑UWB7
- Application: Bottle washing and drying
- Applicable Bottle Size: 2–10 ml small bottles
- Production Capacity: 210–240 bottles/min
- Water Pressure: 0.25–0.3 MPa
- Water Consumption: 700 L/hour
- Compressed Air Consumption: 30 m³/hour
- Power Supply: 220V，380 V, 50 Hz
- Power: 4 kW
- Machine Dimensions: 2500 × 1000 × 1500 mm
- Machine Weight: 900 kg
