DESCRIPTION

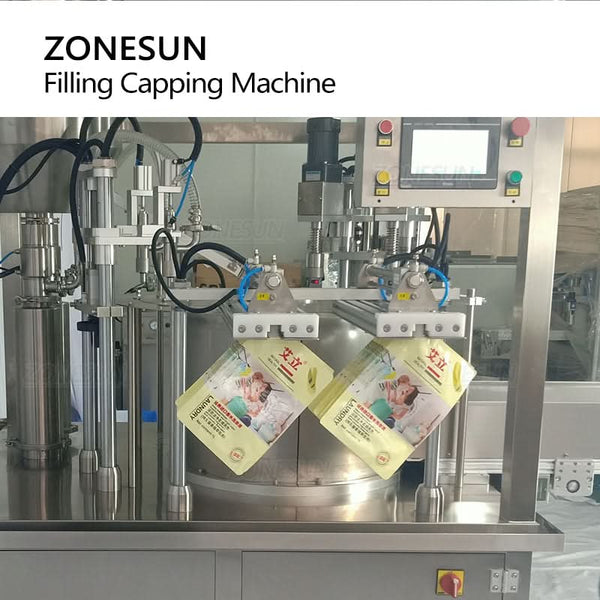

This is a doypack packaging machine. It can automatically fill and seal. It is designed with 2 heads for filling. The components, which are in contact with the material, are made of food-grade 316L stainless steel.It adopts a rotary worktable, so it is compact and space-saving.It is commonly used for packaging ready-to-drink beverages, such as juice, jam, and liquid jelly.
PARAMETER
|
Model |
ZS-YTZL2 |
|
Power |
220V 50Hz, 1.5kW |
|
Filling Range |
200-3000ml |
|
Speed |
22-36 doypacks/min(Detergent) |
|
Hopper |
50L |
|
System |
Servo |
|
Air pressure |
0.5-0.8MPa, 0.1m3/min |
|
Machine size |
1865*2060*2200mm |
|
Machine weight |
≈800kg |
