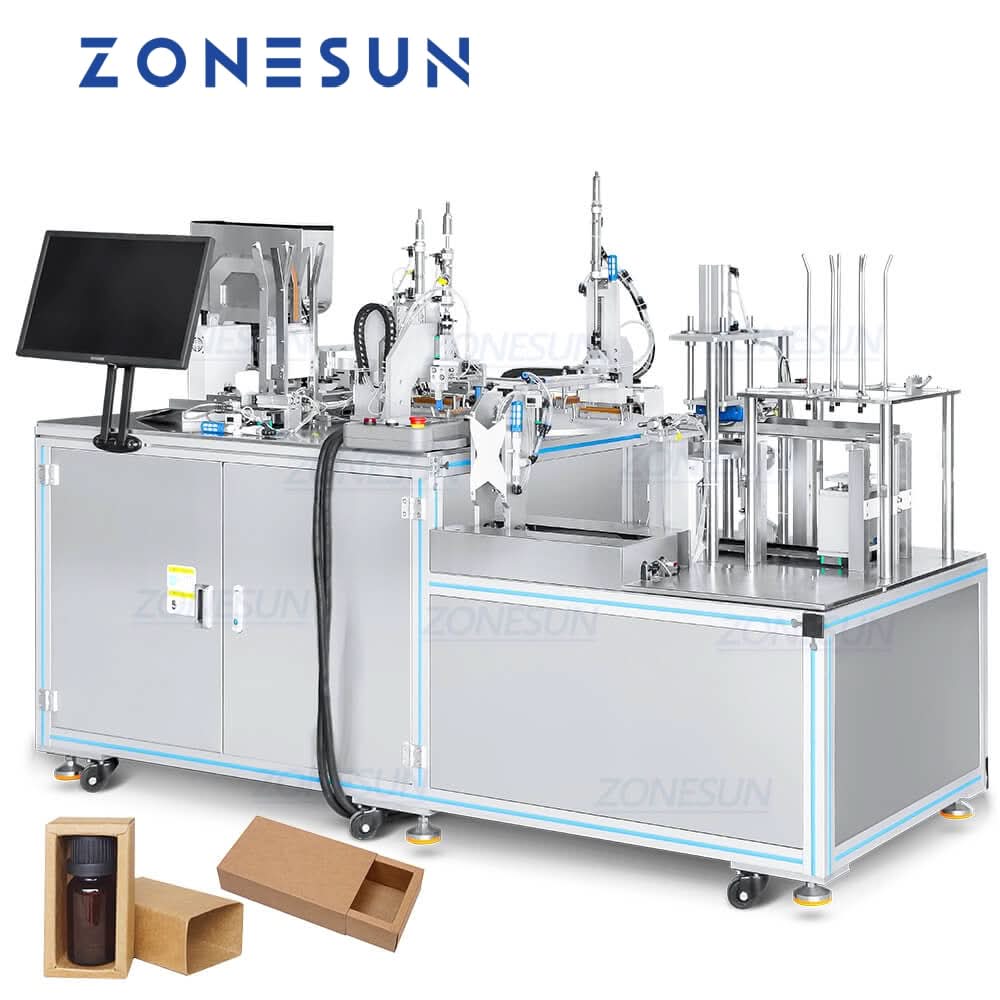

ZONESUN ZS-MSZH50R Automatic Cosmetic Paper Slider Box Carton Folding Cartoning Machine

Shipping calculated at checkout.
Voltage: 110V
Pre-sale Support Quality Guarantee About Shipping

This machine is used to fold box tray, put bottles into tray, and push tray into box, it finishes the complete packaging production of sliding paper box. It can also work with the filling system to finish the subsequent packaging process.It is suitable for cosmetics, daily chemical industries.


  • Machine Model:ZS-MSZH50R
  • Voltage:220V 50-60Hz Single Phase
  • Motor Power:2KW
  • Working Speed:About 10-12boxes/min
  • Suitable Box Size:About 80-220mm(L)* 40-170(W)mm*20-70mm(H)
  • Air Pressure:0.5-0.8MPa
  • Machine Size:About 2300*1220*1650mm(L*W*H)
  • Machine Weight:About 1000kg

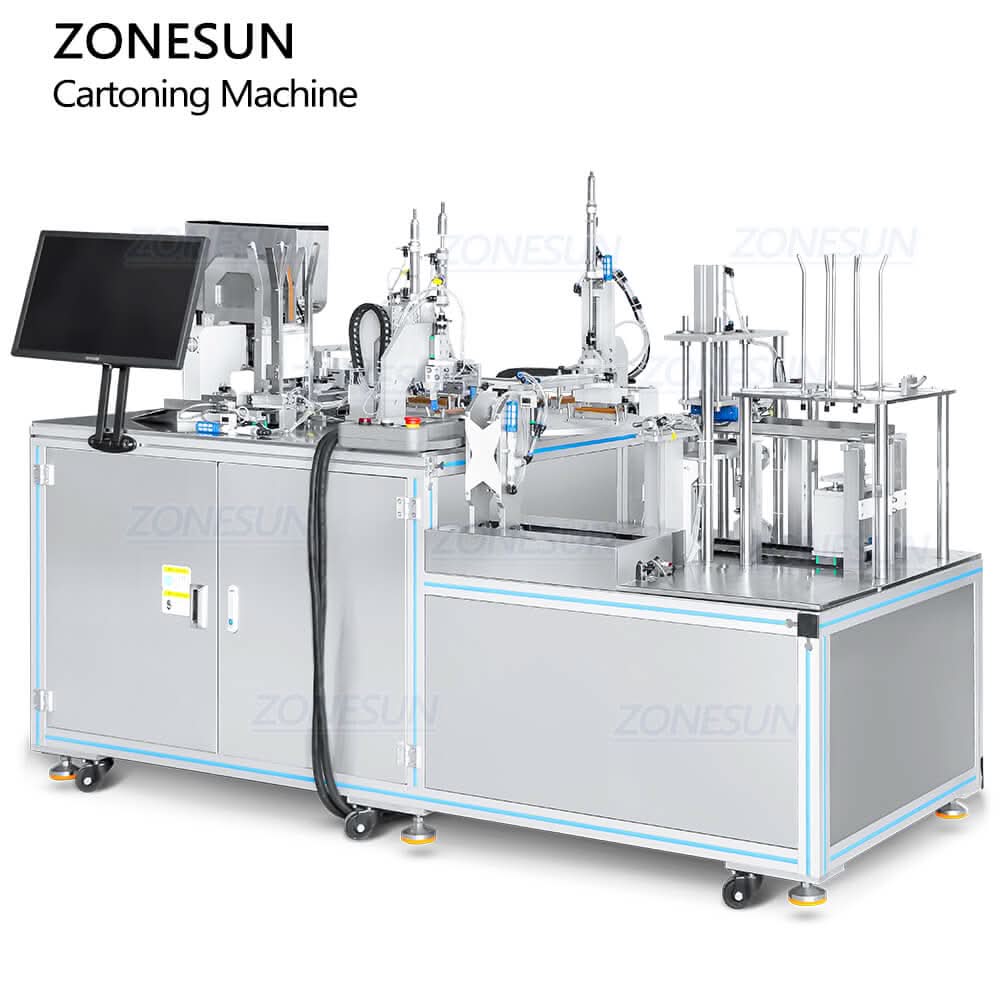

automatic cartoning machine

application of automatic cartoning machine

working process of automatic cartoning machine

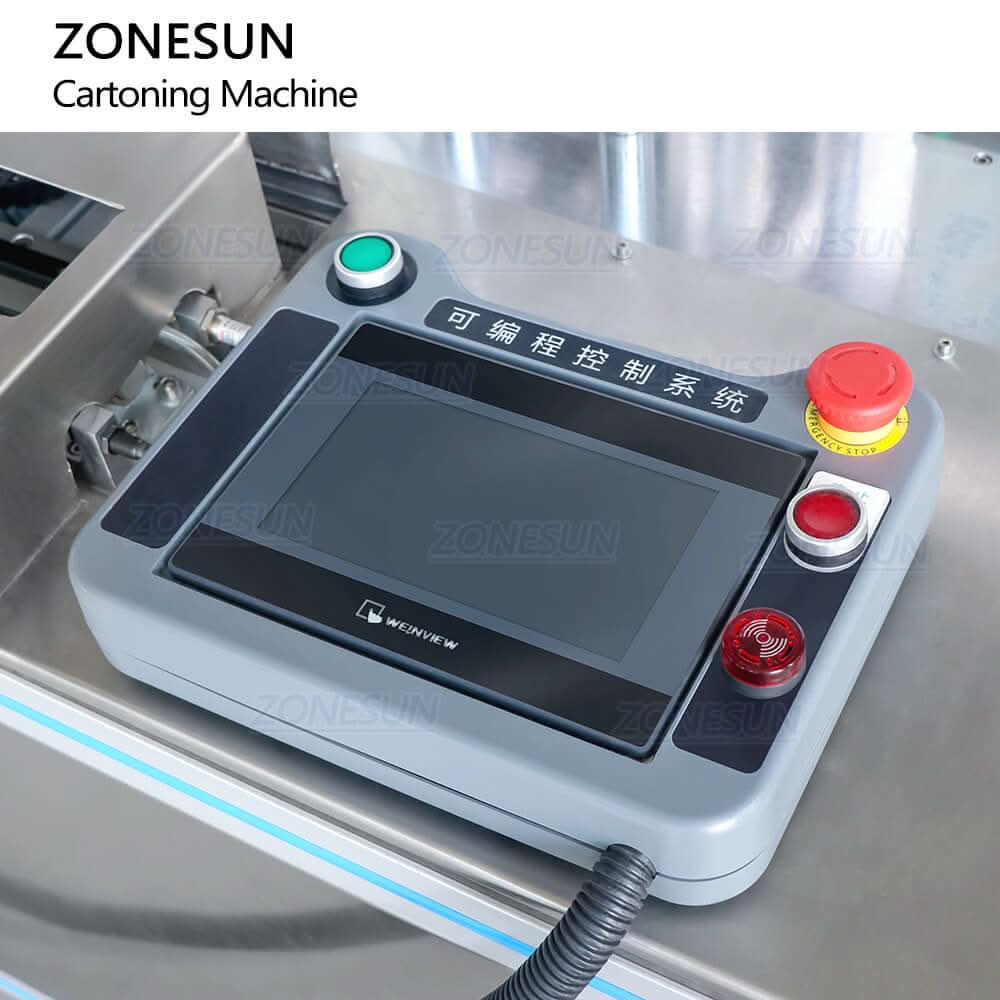

control panel of automatic cartoning machine

Equipped with touch screen control panel, customizable interface simplify working operation, visual working data makes it easily to watch machine working status in real time.

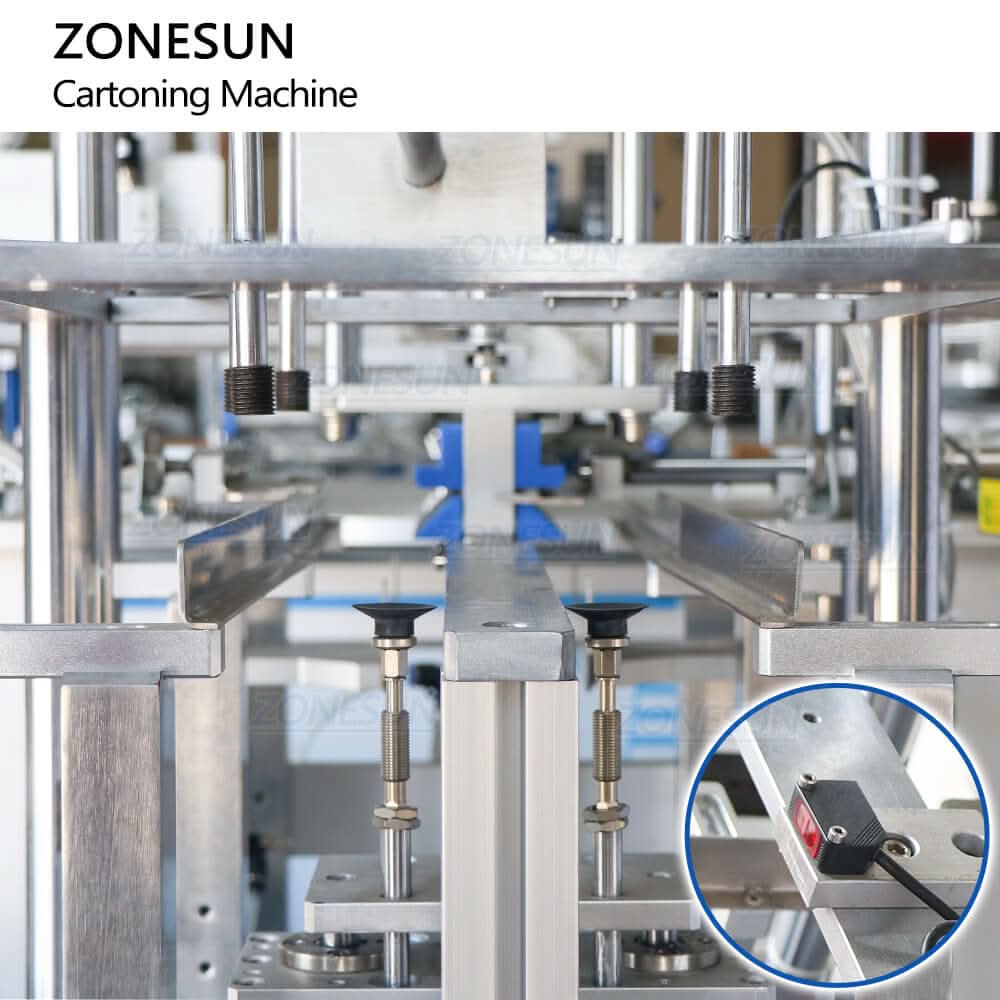

sensor of automatic cartoning machine

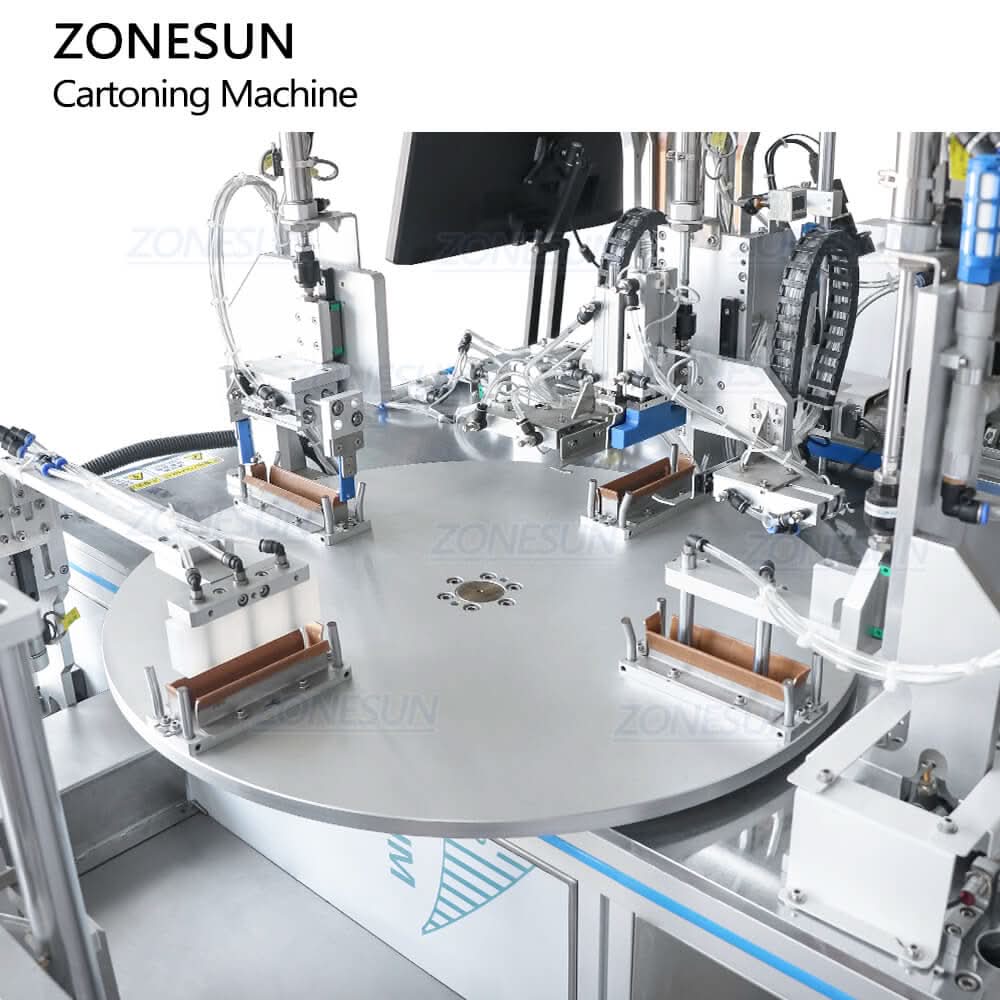

Box folding structures work together on a rotary table, they finish box folding process step by step, this saves working space, and can reduce production error efficiently.

rotary table of automatic cartoning machine

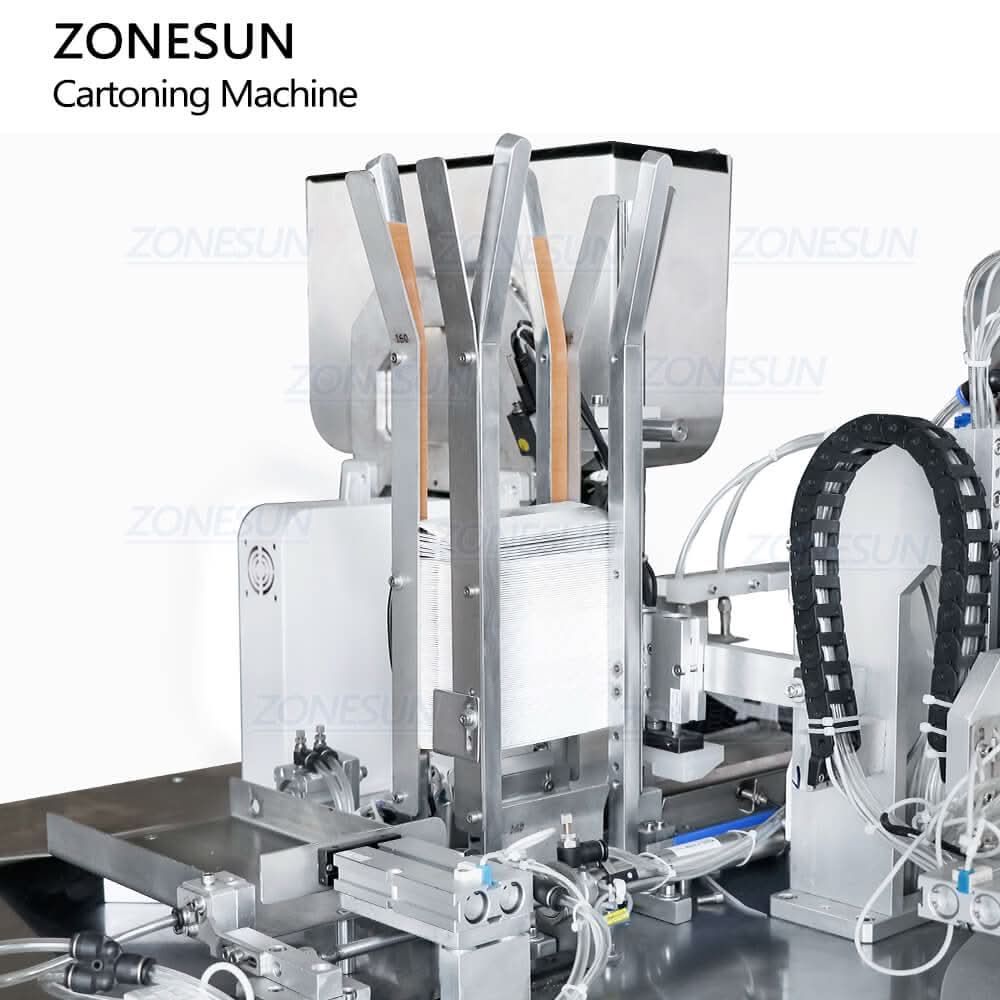

Equipped with sensor to remind material shortage, ensures machine can work stably.Air nozzles will convey cardboard to the box prefolding sturcture and finish next working process.

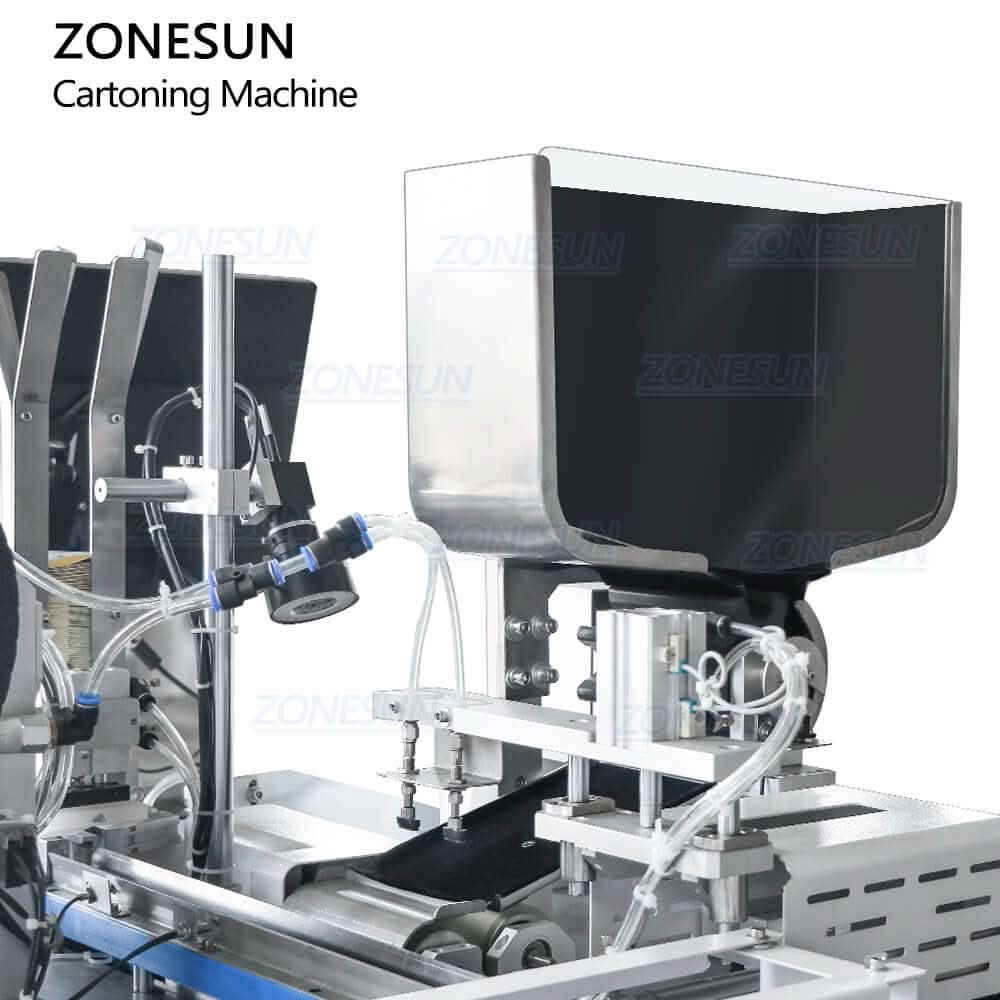

box loading structure of automatic cartoning machine

Equipped with bottle loading structure, it can put bottles into box tray orderly.Product orientation sensing component can detect product logo and rotate bottle body,ensures the packaging consistency of products.

Air nozzle of automatic cartoning machine

Air nozzles will open outer cover and work with the pneumatic pushing omponent to push box tray into outer cover to finsh the complete production.

automatic cartoning machine
