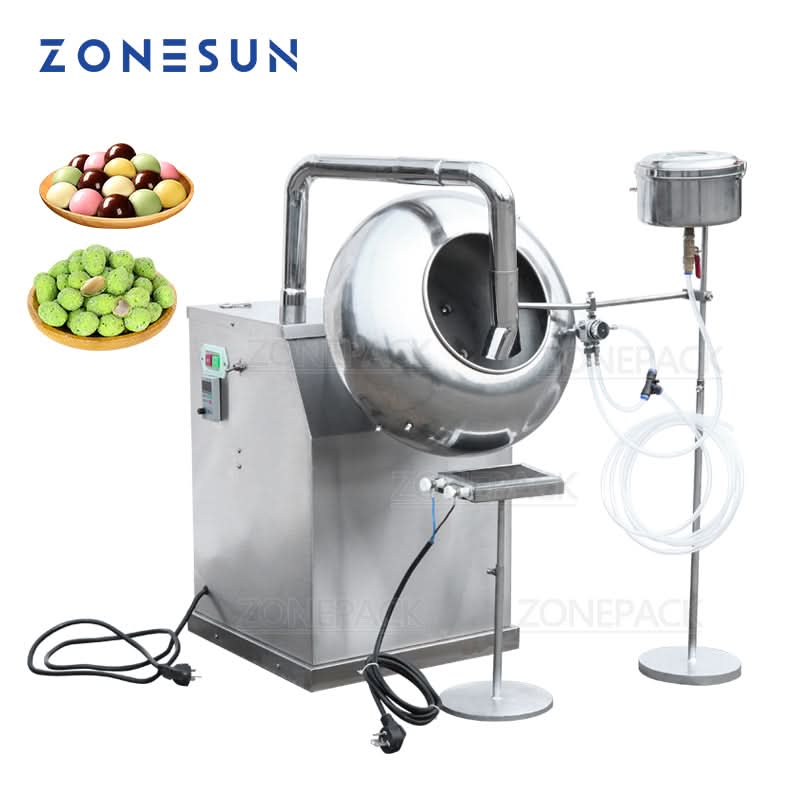

The BY Series sugar coating machine is designed for coating tablets, pills, candies, and chocolates with sugar or polish. Made of stainless steel and compliant with GMP standards, it features adjustable pot tilt, stable transmission, and high thermal efficiency. Ideal for pharmaceutical and food industries, it can be equipped with optional systems like frequency control, dust removal, or spray gun for enhanced performance. Suitable for coating, polishing, and rolling various materials including peanuts and dried fruits.
| Model | BY-300 | BY-400 | BY-600 | BY-800 | BY-1000 | BY-1250 |
|---|---|---|---|---|---|---|
| Pot Diameter (mm) | 300 | 400 | 600 | 800 | 1000 | 1250 |
| Rotation Speed (r/min) | 46 | 46 | 40 | 40 | 32 | 30 |
| Main Power (kW) | 0.37 | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 |
| Electric Wire Power (W) | 500 | 500 | 800 | 1000 | 1000 | 1000 |
| Blower Power (W) | 40 | 40 | 60 | 250 | 250 | 250 |
| Production Capacity (kg/time) | 2 | 5 | 15 | 30–50 | 50–70 | 90–150 |
| Machine Weight (kg) | 65 | 70 | 120 | 240 | 250 | 280 |
| Overall Size (mm) | 485×585×766 | 485×585×810 | 700×540×1300 | 925×900×1500 | 1110×1100×1600 | 1200×1250×1630 |
| External Heating Power (W) | 500 | 500 | 600 | 1000×2 | 1000×2 | 1000×2 |
